[Feature] Enhance inplace addto strategy for gradient accumulation in static graph !27112

  • Report abuse
!27112 已合并 9月 07, 2020 由 saxon_zh@saxon_zh 创建
#<User:0x00007f7e10532ee8>
  • 概览 0
  • 提交 13
  • 变更 25

Created by: zhiqiu

PR types

New features

PR changes

Others

Describe

New feature, support inplace addto strategy for gradient accumulation, which can improve the performance of gradient accumulation.

Background

In back-propagation,if the gradients of a tensor are generated by more than one operation, these gradients should be accumulated before back-propagating to the next layer. For example,

If the forward network contains the following part,

y = conv2d(x, w)
z = add(x, y)

Then in backward,

x_grad_0 = add_grad(z_grad)
x_grad_1 = conv2d_grad(y_grad, ...)
x_grad = sum(x_grad_0, x_grad_1)

Traditionally, if the gradients of a tensor are generated by n operation, then after these gradients generated, a sum operation is used to sum up these gradients. x_grad = sum(x_grad_0, x_grag_1, ..., x_grad_n)

However, we can improve the performance by adds up these gradients one by one in their backward operations.

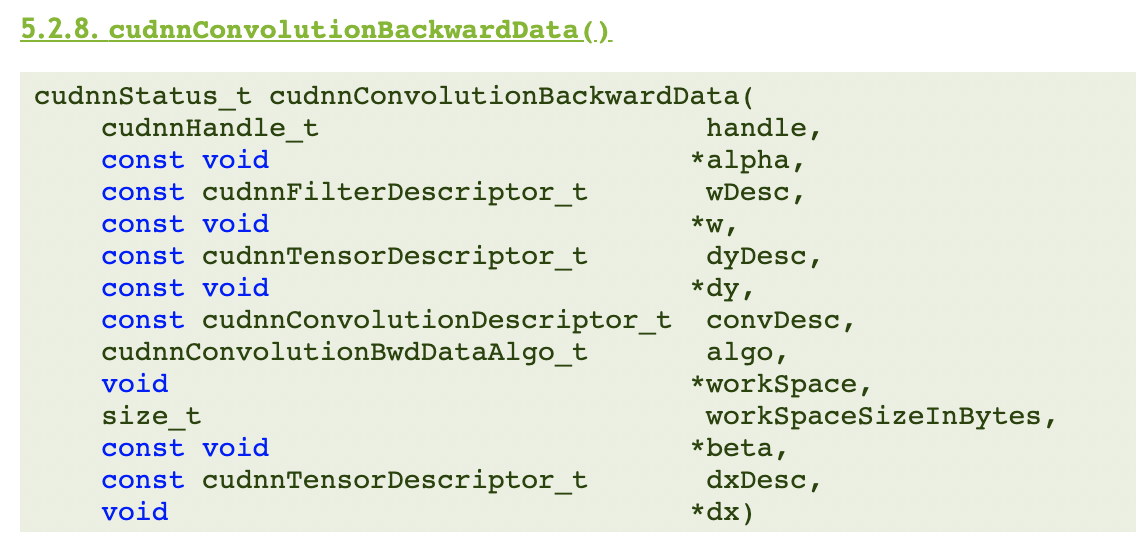

For example, the backward API of conv in cudnn cudnnConvolutionBackwardData contains a beta arguments, image

which means, dstValue = alpha[0]*result + beta[0]*priorDstValue

So, in the above case, if the gradient x_grad_1 is set to x_grad_0 before conv2d_grad's execution, then we can set beta = 1 and the result x_grad_1 will be exactly x_grad_0 + x_grad_1, which is the gradient accumulation we want to do.

Implementation

  • In the backward stage, when appending grad operators automatically, use several grad_add ops instead of sum op.
    g = sum(g_0, g_1,..., g_n)
 ==>
    g_sum_0 = g_0
    g_sum_1 = grad_add(g_sum_0, g_1)
    g_sum_2 = grad_add(g_sum_1, g_2)
     ...
    g_sum_n = grad_add(g_sum_n-1, g_n)
  • For each grad_add op with the form out = grad_add(left, right)
    • Make the two input tensor and the output tensor share the same memory address.
    • Make the right input of grad_add do addto calculation.
    • Make the grad_add skip execution (since its work is done by addto)

Usage

To train with inplace addto strategy, there are two steps.

  • Set FLAGS_max_inplace_grad_add to a positive number, for example, 8. It means if the number gradients that need to sum up is less than 8, the grad_add will be used.
  • Set build_strategy.enable_addto=True, it enables the inplace addto strategy.

Performance

The performance of ResNet50 with amp enabled and batch_size=128 on V100 single card.

  • before: 1014 img/s
  • after: 1078 img/s, 6.3% imporved.
