Merge pull request #10 from PaddlePaddle/develop

mer upstream

PPOCRLabel/README.md

+# PPOCRLabel
+
+PPOCRLabel是一款适用于OCR领域的半自动化图形标注工具，使用python3和pyqt5编写，支持矩形框标注和四点标注模式，导出格式可直接用于PPOCR检测和识别模型的训练。
+

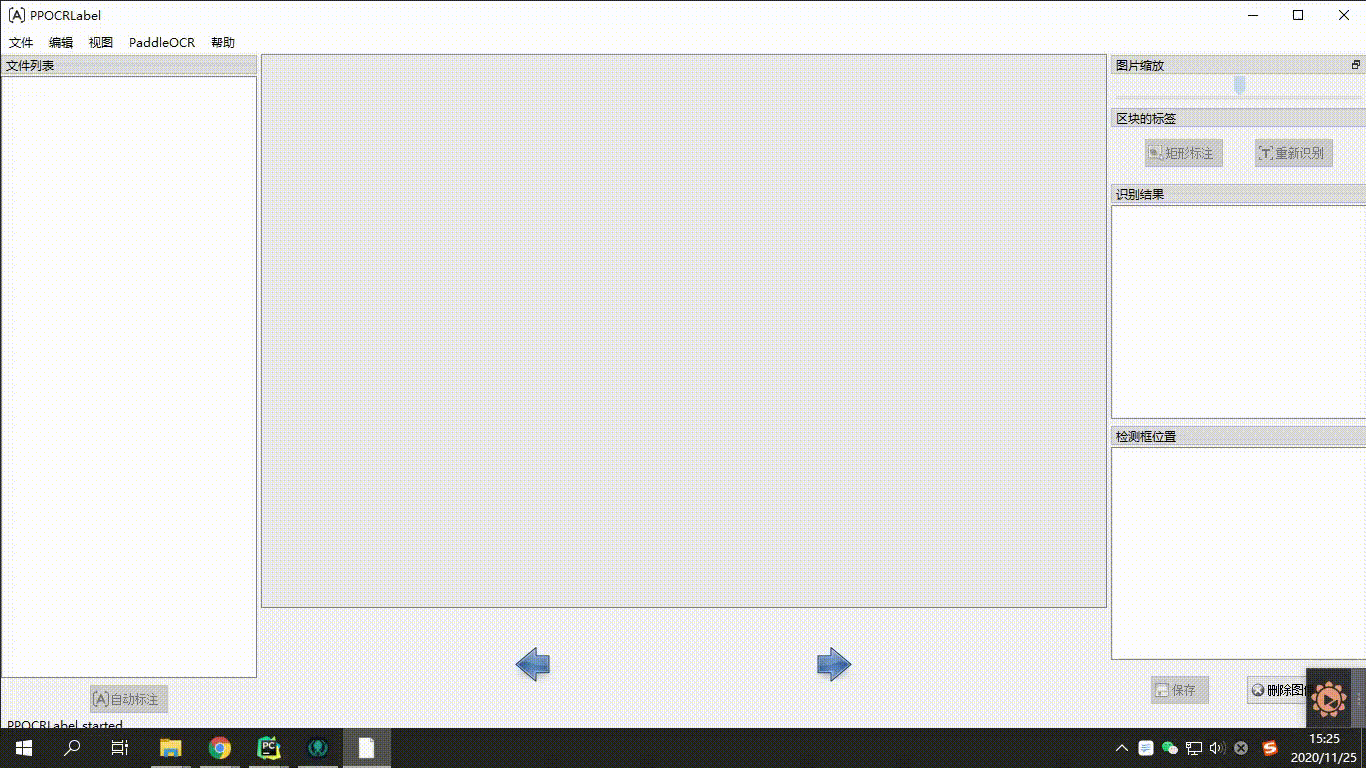

+<img src="./data/gif/steps.gif" width="100%"/>
+
+## 安装
+
+### 1. 安装PaddleOCR
+参考[PaddleOCR安装文档](https://github.com/PaddlePaddle/PaddleOCR/blob/develop/doc/doc_ch/installation.md)准备好PaddleOCR
+
+### 2. 安装PPOCRLabel
+#### Windows + Anaconda
+
+下载安装[Anaconda](https://www.anaconda.com/download/#download) (Python 3+)
+
+```
+conda install pyqt=5
+cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
+pyrcc5 -o libs/resources.py resources.qrc
+python PPOCRLabel.py
+```
+
+#### Ubuntu Linux
+
+```
+sudo apt-get install pyqt5-dev-tools
+sudo apt-get install trash-cli
+cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
+sudo pip3 install -r requirements/requirements-linux-python3.txt
+make qt5py3
+python3 PPOCRLabel.py
+```
+
+#### macOS
+```
+pip3 install pyqt5
+pip3 uninstall opencv-python # 由于mac版本的opencv与pyqt有冲突，需先手动卸载opencv
+pip3 install opencv-contrib-python-headless # 安装headless版本的open-cv
+cd ./PPOCRLabel # 将目录切换到PPOCRLabel文件夹下
+make qt5py3
+python3 PPOCRLabel.py
+```
+
+## 使用
+
+### 操作步骤
+
+1. 安装与运行：使用上述命令安装与运行程序。
+2. 打开文件夹：在菜单栏点击 “文件” - "打开目录" 选择待标记图片的文件夹<sup>[1]</sup>.
+3. 自动标注：点击 ”自动标注“，使用PPOCR超轻量模型对图片文件名前图片状态<sup>[2]</sup>为 “X” 的图片进行自动标注。
+4. 手动标注：点击 “矩形标注”（推荐直接在英文模式下点击键盘中的 “W”)，用户可对当前图片中模型未检出的部分进行手动绘制标记框。点击键盘P，则使用四点标注模式（或点击“编辑” - “四点标注”），用户依次点击4个点后，双击左键表示标注完成。
+5. 标记框绘制完成后，用户点击 “确认”，检测框会先被预分配一个 “待识别” 标签。
+6. 重新识别：将图片中的所有检测画绘制/调整完成后，点击 “重新识别”，PPOCR模型会对当前图片中的**所有检测框**重新识别<sup>[3]</sup>。
+7. 内容更改：双击识别结果，对不准确的识别结果进行手动更改。
+8. 保存：点击 “保存”，图片状态切换为 “√”，跳转至下一张。
+9. 删除：点击 “删除图像”，图片将会被删除至回收站。
+10. 标注结果：关闭应用程序或切换文件路径后，手动保存过的标签将会被存放在所打开图片文件夹下的*Label.txt*中。在菜单栏点击 “PaddleOCR” - "保存识别结果"后，会将此类图片的识别训练数据保存在*crop_img*文件夹下，识别标签保存在*rec_gt.txt*中<sup>[4]</sup>。
+
+### 注意
+
+[1] PPOCRLabel以文件夹为基本标记单位，打开待标记的图片文件夹后，不会在窗口栏中显示图片，而是在点击 "选择文件夹" 之后直接将文件夹下的图片导入到程序中。
+
+[2] 图片状态表示本张图片用户是否手动保存过，未手动保存过即为 “X”，手动保存过为 “√”。点击 “自动标注”按钮后，PPOCRLabel不会对状态为 “√” 的图片重新标注。
+
+[3] 点击“重新识别”后，模型会对图片中的识别结果进行覆盖。因此如果在此之前手动更改过识别结果，有可能在重新识别后产生变动。
+
+[4] PPOCRLabel产生的文件包括一下几种，请勿手动更改其中内容，否则会引起程序出现异常。
+
+|    文件名     |                             说明                             |
+| :-----------: | :----------------------------------------------------------: |
+|   Label.txt   | 检测标签，可直接用于PPOCR检测模型训练。用户每保存10张检测结果后，程序会进行自动写入。当用户关闭应用程序或切换文件路径后同样会进行写入。 |
+| fileState.txt | 图片状态标记文件，保存当前文件夹下已经被用户手动确认过的图片名称。 |
+|  Cache.cach   |              缓存文件，保存模型自动识别的结果。              |
+|  rec_gt.txt   | 识别标签。可直接用于PPOCR识别模型训练。需用户手动点击菜单栏“PaddleOCR” - "保存识别结果"后产生。 |
+|   crop_img    |   识别数据。按照检测框切割后的图片。与rec_gt.txt同时产生。   |
+
+### 参考资料
+
+1.[Tzutalin. LabelImg. Git code (2015)](https://github.com/tzutalin/labelImg)

PPOCRLabel/build-tools/.gitignore

+*.spec
+build
+dist
+pyinstaller
+python-2.*
+pywin32*
+virtual-wine
+venv_wine
+PyQt4-*
+lxml-*
+windows_v*
+linux_v*

PPOCRLabel/build-tools/README.md

+### Deploy to PyPI
+
+```
+cd [ROOT]
+sh build-tools/build-for-pypi.sh
+```
+
+### Build for Ubuntu
+
+```
+cd build-tools
+sh run-in-container.sh
+sh envsetup.sh
+sh build-ubuntu-binary.sh
+```
+
+### Build for Windows
+
+```
+cd build-tools
+sh run-in-container.sh
+sh envsetup.sh
+sh build-windows-binary.sh
+```
+
+### Build for macOS High Sierra
+```
+cd build-tools
+./build-for-macos.sh
+```
+
+Note: If there are some problems, try to
+```
+sudo rm -rf virtual-wne venv_wine
+```

PPOCRLabel/build-tools/build-for-macos.sh

+#!/bin/sh
+
+brew install python@2
+pip install --upgrade virtualenv
+
+# clone labelimg source
+rm -rf /tmp/labelImgSetup
+mkdir /tmp/labelImgSetup
+cd /tmp/labelImgSetup
+curl https://codeload.github.com/tzutalin/labelImg/zip/master --output labelImg.zip
+unzip labelImg.zip
+rm labelImg.zip
+
+# setup python3 space
+virtualenv --system-site-packages  -p python3 /tmp/labelImgSetup/labelImg-py3
+source /tmp/labelImgSetup/labelImg-py3/bin/activate
+cd labelImg-master
+
+# build labelImg app
+pip install py2app
+pip install PyQt5 lxml
+make qt5py3
+rm -rf build dist
+python setup.py py2app -A
+mv "/tmp/labelImgSetup/labelImg-master/dist/labelImg.app" /Applications
+# deactivate python3
+deactivate
+cd ../
+rm -rf /tmp/labelImgSetup
+echo 'DONE'

PPOCRLabel/build-tools/build-for-pypi.sh

+#!/bin/sh
+# Packaging and Release
+docker run --workdir=$(pwd)/ --volume="/home/$USER:/home/$USER" tzutalin/py2qt4 /bin/sh -c 'make qt4py2; make test;sudo python setup.py sdist;sudo python setup.py install'
+
+while true; do
+    read -p "Do you wish to deploy this to PyPI(twine upload dist/* or pip install dist/*)?" yn
+    case $yn in
+        [Yy]* ) docker run -it --rm --workdir=$(pwd)/ --volume="/home/$USER:/home/$USER" tzutalin/py2qt4; break;;
+        [Nn]* ) exit;;
+        * ) echo "Please answer yes or no.";;
+    esac
+done
+# python setup.py register
+# python setup.py sdist upload
+# Net pypi: twine upload dist/*
+
+# Test before upladoing: pip install dist/labelImg.tar.gz

PPOCRLabel/build-tools/build-ubuntu-binary.sh

+#!/bin/bash
+### Ubuntu use pyinstall v3.0
+THIS_SCRIPT_PATH=`readlink -f $0`
+THIS_SCRIPT_DIR=`dirname ${THIS_SCRIPT_PATH}`
+cd pyinstaller
+git checkout v3.2
+cd ${THIS_SCRIPT_DIR}
+
+rm -r build
+rm -r dist
+rm labelImg.spec
+python pyinstaller/pyinstaller.py --hidden-import=xml \
+            --hidden-import=xml.etree \
+            --hidden-import=xml.etree.ElementTree \
+            --hidden-import=lxml.etree \
+             -D -F -n labelImg -c "../labelImg.py" -p ../libs -p ../
+
+FOLDER=$(git describe --abbrev=0 --tags)
+FOLDER="linux_"$FOLDER
+rm -rf "$FOLDER"
+mkdir "$FOLDER"
+cp dist/labelImg $FOLDER
+cp -rf ../data $FOLDER/data
+zip "$FOLDER.zip" -r $FOLDER

PPOCRLabel/build-tools/build-windows-binary.sh

+#!/bin/bash
+### Window requires pyinstall v2.1
+wine msiexec -i python-2.7.8.msi
+wine pywin32-218.win32-py2.7.exe
+wine PyQt4-4.11.4-gpl-Py2.7-Qt4.8.7-x32.exe
+wine lxml-3.7.3.win32-py2.7.exe
+
+THIS_SCRIPT_PATH=`readlink -f $0`
+THIS_SCRIPT_DIR=`dirname ${THIS_SCRIPT_PATH}`
+cd pyinstaller
+git checkout v2.1
+cd ${THIS_SCRIPT_DIR}
+echo ${THIS_SCRIPT_DIR}
+
+#. venv_wine/bin/activate
+rm -r build
+rm -r dist
+rm labelImg.spec
+
+wine c:/Python27/python.exe pyinstaller/pyinstaller.py --hidden-import=xml \
+            --hidden-import=xml.etree \
+            --hidden-import=xml.etree.ElementTree \
+            --hidden-import=lxml.etree \
+             -D -F -n labelImg -c "../labelImg.py" -p ../libs -p ../
+
+FOLDER=$(git describe --abbrev=0 --tags)
+FOLDER="windows_"$FOLDER
+rm -rf "$FOLDER"
+mkdir "$FOLDER"
+cp dist/labelImg.exe $FOLDER
+cp -rf ../data $FOLDER/data
+zip "$FOLDER.zip" -r $FOLDER

PPOCRLabel/build-tools/envsetup.sh

+#!/bin/sh
+
+THIS_SCRIPT_PATH=`readlink -f $0`
+THIS_SCRIPT_DIR=`dirname ${THIS_SCRIPT_PATH}`
+#OS Ubuntu 14.04
+### Common packages for linux/windows
+if [ ! -e "pyinstaller" ]; then
+    git clone https://github.com/pyinstaller/pyinstaller
+    cd pyinstaller
+    git checkout v2.1 -b v2.1
+    cd ${THIS_SCRIPT_DIR}
+fi
+
+echo "Going to clone and download packages for building windows"
+#Pacakges
+#>  pyinstaller (2.1)
+#>  wine (1.6.2)
+#>  virtual-wine (0.1)
+#>  python-2.7.8.msi
+#>  pywin32-218.win32-py2.7.exe
+
+## tool to install on Ubuntu
+#$ sudo apt-get install wine
+
+### Clone a repo to create virtual wine env
+if [ ! -e "virtual-wine" ]; then
+	git clone https://github.com/htgoebel/virtual-wine.git
+fi
+
+apt-get install scons
+### Create virtual env
+rm -rf venv_wine
+./virtual-wine/vwine-setup venv_wine
+#### Active virutal env
+. venv_wine/bin/activate
+
+### Use wine to install packages to virtual env
+if [ ! -e "python-2.7.8.msi" ]; then
+    wget "https://www.python.org/ftp/python/2.7.8/python-2.7.8.msi"
+fi
+
+if [ ! -e "pywin32-218.win32-py2.7.exe" ]; then
+    wget "http://nchc.dl.sourceforge.net/project/pywin32/pywin32/Build%20218/pywin32-218.win32-py2.7.exe"
+fi
+
+if [ ! -e "PyQt4-4.11.4-gpl-Py2.7-Qt4.8.7-x32.exe" ]; then
+    wget "http://nchc.dl.sourceforge.net/project/pyqt/PyQt4/PyQt-4.11.4/PyQt4-4.11.4-gpl-Py2.7-Qt4.8.7-x32.exe"
+fi
+
+if [ ! -e "lxml-3.7.3.win32-py2.7.exe" ]; then
+    wget "https://pypi.python.org/packages/a3/f6/a28c5cf63873f6c55a3eb7857b736379229b85ba918261d2e88cf886905e/lxml-3.7.3.win32-py2.7.exe#md5=a0f746355876aca4ca5371cb0f1d13ce"
+fi
+

PPOCRLabel/build-tools/run-in-container.sh

+#!/bin/sh
+docker run -it \
+    --user $(id -u) \
+    -e DISPLAY=unix$DISPLAY \
+    --workdir=$(pwd) \
+    --volume="/home/$USER:/home/$USER" \
+    --volume="/etc/group:/etc/group:ro" \
+    --volume="/etc/passwd:/etc/passwd:ro" \
+    --volume="/etc/shadow:/etc/shadow:ro" \
+    --volume="/etc/sudoers.d:/etc/sudoers.d:ro" \
+    -v /tmp/.X11-unix:/tmp/.X11-unix \
+    tzutalin/py2qt4
+

PPOCRLabel/combobox.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+
+import sys
+try:
+    from PyQt5.QtWidgets import QWidget, QHBoxLayout, QComboBox
+except ImportError:
+    # needed for py3+qt4
+    # Ref:
+    # http://pyqt.sourceforge.net/Docs/PyQt4/incompatible_apis.html
+    # http://stackoverflow.com/questions/21217399/pyqt4-qtcore-qvariant-object-instead-of-a-string
+    if sys.version_info.major >= 3:
+        import sip
+        sip.setapi('QVariant', 2)
+    from PyQt4.QtGui import QWidget, QHBoxLayout, QComboBox
+
+
+class ComboBox(QWidget):
+    def __init__(self, parent=None, items=[]):
+        super(ComboBox, self).__init__(parent)
+
+        layout = QHBoxLayout()
+        self.cb = QComboBox()
+        self.items = items
+        self.cb.addItems(self.items)
+
+        self.cb.currentIndexChanged.connect(parent.comboSelectionChanged)
+
+        layout.addWidget(self.cb)
+        self.setLayout(layout)
+
+    def update_items(self, items):
+        self.items = items
+
+        self.cb.clear()
+        self.cb.addItems(self.items)

PPOCRLabel/libs/__init__.py

+__version_info__ = ('1', '0', '0')
+__version__ = '.'.join(__version_info__)

PPOCRLabel/libs/autoDialog.py

+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import *
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+import json
+
+from libs.utils import newIcon
+
+BB = QDialogButtonBox
+
+
+class Worker(QThread):
+    progressBarValue = pyqtSignal(int)
+    listValue = pyqtSignal(str)
+    endsignal = pyqtSignal(int, str)
+    handle = 0
+
+    def __init__(self, ocr, mImgList, mainThread, model):
+        super(Worker, self).__init__()
+        self.ocr = ocr
+        self.mImgList = mImgList
+        self.mainThread = mainThread
+        self.model = model
+
+    def run(self):
+        try:
+            findex = 0
+            for Imgpath in self.mImgList:
+                if self.handle == 0:
+                    self.listValue.emit(Imgpath)
+                    if self.model == 'paddle':
+                        self.result_dic = self.ocr.ocr(Imgpath, cls=True, det=True)
+
+                    # 结果保存
+                    if self.result_dic is None or len(self.result_dic) == 0:
+                        print('Can not recognise file  is :  ', Imgpath)
+                        pass
+                    else:
+                        for res in self.result_dic:
+                            chars = res[1][0]
+                            cond = res[1][1]
+                            posi = res[0]
+                            self.listValue.emit("文字:" + chars + " 置信度:" + str(cond) + " 坐标:" + json.dumps(posi))
+                        self.mainThread.result_dic = self.result_dic
+                        self.mainThread.filePath = Imgpath
+                        # 保存
+                        self.mainThread.saveFile(mode='Auto')
+                    findex += 1
+                    self.progressBarValue.emit(findex)
+                else:
+                    break
+            self.endsignal.emit(0, "readAll")
+            self.exec()
+        except Exception as e:
+            print(e)
+            raise
+
+
+class AutoDialog(QDialog):
+
+    def __init__(self, text="Enter object label", parent=None, ocr=None, mImgList=None, lenbar=0):
+        super(AutoDialog, self).__init__(parent)
+        self.setFixedWidth(1000)
+        self.parent = parent
+        self.ocr = ocr
+        self.mImgList = mImgList
+        self.pb = QProgressBar()
+        self.pb.setRange(0, lenbar)
+        self.pb.setValue(0)
+
+        layout = QVBoxLayout()
+        layout.addWidget(self.pb)
+        self.model = 'paddle'
+        self.listWidget = QListWidget(self)
+        layout.addWidget(self.listWidget)
+
+        self.buttonBox = bb = BB(BB.Ok | BB.Cancel, Qt.Horizontal, self)
+        bb.button(BB.Ok).setIcon(newIcon('done'))
+        bb.button(BB.Cancel).setIcon(newIcon('undo'))
+        bb.accepted.connect(self.validate)
+        bb.rejected.connect(self.reject)
+        layout.addWidget(bb)
+        bb.button(BB.Ok).setEnabled(False)
+
+        self.setLayout(layout)
+        self.setWindowTitle("自动标注中")
+        self.setWindowModality(Qt.ApplicationModal)
+
+        # self.setWindowFlags(Qt.WindowCloseButtonHint)
+
+        self.thread_1 = Worker(self.ocr, self.mImgList, self.parent, 'paddle')
+        self.thread_1.progressBarValue.connect(self.handleProgressBarSingal)
+        self.thread_1.listValue.connect(self.handleListWidgetSingal)
+        self.thread_1.endsignal.connect(self.handleEndsignalSignal)
+
+    def handleProgressBarSingal(self, i):
+        self.pb.setValue(i)
+
+    def handleListWidgetSingal(self, i):
+        self.listWidget.addItem(i)
+        titem = self.listWidget.item(self.listWidget.count() - 1)
+        self.listWidget.scrollToItem(titem)
+
+    def handleEndsignalSignal(self, i, str):
+        if i == 0 and str == "readAll":
+            self.buttonBox.button(BB.Ok).setEnabled(True)
+            self.buttonBox.button(BB.Cancel).setEnabled(False)
+
+    def reject(self):
+        print("reject")
+        self.thread_1.handle = -1
+        self.thread_1.quit()
+        # del self.thread_1
+        # if self.thread_1.isRunning():
+        #     self.thread_1.terminate()
+        # self.thread_1.quit()
+        # super(AutoDialog,self).reject()
+        while not self.thread_1.isFinished():
+            pass
+        self.accept()
+
+    def validate(self):
+        self.accept()
+
+    def postProcess(self):
+        try:
+            self.edit.setText(self.edit.text().trimmed())
+            # print(self.edit.text())
+        except AttributeError:
+            # PyQt5: AttributeError: 'str' object has no attribute 'trimmed'
+            self.edit.setText(self.edit.text())
+            print(self.edit.text())
+
+    def popUp(self):
+        self.thread_1.start()
+        return 1 if self.exec_() else None
+
+    def closeEvent(self, event):
+        print("???")
+        # if self.thread_1.isRunning():
+        #     self.thread_1.quit()
+        #
+        #     # self._thread.terminate()
+        # # del self.thread_1
+        # super(AutoDialog, self).closeEvent(event)
+        self.reject()

PPOCRLabel/libs/colorDialog.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import QColorDialog, QDialogButtonBox
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+BB = QDialogButtonBox
+
+
+class ColorDialog(QColorDialog):
+
+    def __init__(self, parent=None):
+        super(ColorDialog, self).__init__(parent)
+        self.setOption(QColorDialog.ShowAlphaChannel)
+        # The Mac native dialog does not support our restore button.
+        self.setOption(QColorDialog.DontUseNativeDialog)
+        # Add a restore defaults button.
+        # The default is set at invocation time, so that it
+        # works across dialogs for different elements.
+        self.default = None
+        self.bb = self.layout().itemAt(1).widget()
+        self.bb.addButton(BB.RestoreDefaults)
+        self.bb.clicked.connect(self.checkRestore)
+
+    def getColor(self, value=None, title=None, default=None):
+        self.default = default
+        if title:
+            self.setWindowTitle(title)
+        if value:
+            self.setCurrentColor(value)
+        return self.currentColor() if self.exec_() else None
+
+    def checkRestore(self, button):
+        if self.bb.buttonRole(button) & BB.ResetRole and self.default:
+            self.setCurrentColor(self.default)

PPOCRLabel/libs/constants.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+SETTING_FILENAME = 'filename'
+SETTING_RECENT_FILES = 'recentFiles'
+SETTING_WIN_SIZE = 'window/size'
+SETTING_WIN_POSE = 'window/position'
+SETTING_WIN_GEOMETRY = 'window/geometry'
+SETTING_LINE_COLOR = 'line/color'
+SETTING_FILL_COLOR = 'fill/color'
+SETTING_ADVANCE_MODE = 'advanced'
+SETTING_WIN_STATE = 'window/state'
+SETTING_SAVE_DIR = 'savedir'
+SETTING_PAINT_LABEL = 'paintlabel'
+SETTING_LAST_OPEN_DIR = 'lastOpenDir'
+SETTING_AUTO_SAVE = 'autosave'
+SETTING_SINGLE_CLASS = 'singleclass'
+FORMAT_PASCALVOC='PascalVOC'
+FORMAT_YOLO='YOLO'
+SETTING_DRAW_SQUARE = 'draw/square'
+SETTING_LABEL_FILE_FORMAT= 'labelFileFormat'
+DEFAULT_ENCODING = 'utf-8'

PPOCRLabel/libs/create_ml_io.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+#!/usr/bin/env python
+# -*- coding: utf8 -*-
+import json
+from pathlib import Path
+
+from libs.constants import DEFAULT_ENCODING
+import os
+
+JSON_EXT = '.json'
+ENCODE_METHOD = DEFAULT_ENCODING
+
+
+class CreateMLWriter:
+    def __init__(self, foldername, filename, imgsize, shapes, outputfile, databasesrc='Unknown', localimgpath=None):
+        self.foldername = foldername
+        self.filename = filename
+        self.databasesrc = databasesrc
+        self.imgsize = imgsize
+        self.boxlist = []
+        self.localimgpath = localimgpath
+        self.verified = False
+        self.shapes = shapes
+        self.outputfile = outputfile
+
+    def write(self):
+        if os.path.isfile(self.outputfile):
+            with open(self.outputfile, "r") as file:
+                input_data = file.read()
+                outputdict = json.loads(input_data)
+        else:
+            outputdict = []
+
+        outputimagedict = {
+            "image": self.filename,
+            "annotations": []
+        }
+
+        for shape in self.shapes:
+            points = shape["points"]
+
+            x1 = points[0][0]
+            y1 = points[0][1]
+            x2 = points[1][0]
+            y2 = points[2][1]
+
+            height, width, x, y = self.calculate_coordinates(x1, x2, y1, y2)
+
+            shapedict = {
+                "label": shape["label"],
+                "coordinates": {
+                    "x": x,
+                    "y": y,
+                    "width": width,
+                    "height": height
+                }
+            }
+            outputimagedict["annotations"].append(shapedict)
+
+        # check if image already in output
+        exists = False
+        for i in range(0, len(outputdict)):
+            if outputdict[i]["image"] == outputimagedict["image"]:
+                exists = True
+                outputdict[i] = outputimagedict
+                break
+
+        if not exists:
+            outputdict.append(outputimagedict)
+
+        Path(self.outputfile).write_text(json.dumps(outputdict), ENCODE_METHOD)
+
+    def calculate_coordinates(self, x1, x2, y1, y2):
+        if x1 < x2:
+            xmin = x1
+            xmax = x2
+        else:
+            xmin = x2
+            xmax = x1
+        if y1 < y2:
+            ymin = y1
+            ymax = y2
+        else:
+            ymin = y2
+            ymax = y1
+        width = xmax - xmin
+        if width < 0:
+            width = width * -1
+        height = ymax - ymin
+        # x and y from center of rect
+        x = xmin + width / 2
+        y = ymin + height / 2
+        return height, width, x, y
+
+
+class CreateMLReader:
+    def __init__(self, jsonpath, filepath):
+        self.jsonpath = jsonpath
+        self.shapes = []
+        self.verified = False
+        self.filename = filepath.split("/")[-1:][0]
+        try:
+            self.parse_json()
+        except ValueError:
+            print("JSON decoding failed")
+
+    def parse_json(self):
+        with open(self.jsonpath, "r") as file:
+            inputdata = file.read()
+
+        outputdict = json.loads(inputdata)
+        self.verified = True
+
+        if len(self.shapes) > 0:
+            self.shapes = []
+        for image in outputdict:
+            if image["image"] == self.filename:
+                for shape in image["annotations"]:
+                    self.add_shape(shape["label"], shape["coordinates"])
+
+    def add_shape(self, label, bndbox):
+        xmin = bndbox["x"] - (bndbox["width"] / 2)
+        ymin = bndbox["y"] - (bndbox["height"] / 2)
+
+        xmax = bndbox["x"] + (bndbox["width"] / 2)
+        ymax = bndbox["y"] + (bndbox["height"] / 2)
+
+        points = [(xmin, ymin), (xmax, ymin), (xmax, ymax), (xmin, ymax)]
+        self.shapes.append((label, points, None, None, True))
+
+    def get_shapes(self):
+        return self.shapes

PPOCRLabel/libs/hashableQListWidgetItem.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+#!/usr/bin/env python
+# -*- coding: utf-8 -*-
+import sys
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import *
+except ImportError:
+    # needed for py3+qt4
+    # Ref:
+    # http://pyqt.sourceforge.net/Docs/PyQt4/incompatible_apis.html
+    # http://stackoverflow.com/questions/21217399/pyqt4-qtcore-qvariant-object-instead-of-a-string
+    if sys.version_info.major >= 3:
+        import sip
+        sip.setapi('QVariant', 2)
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+# PyQt5: TypeError: unhashable type: 'QListWidgetItem'
+
+
+class HashableQListWidgetItem(QListWidgetItem):
+
+    def __init__(self, *args):
+        super(HashableQListWidgetItem, self).__init__(*args)
+
+    def __hash__(self):
+        return hash(id(self))

PPOCRLabel/libs/labelDialog.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import *
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+from libs.utils import newIcon, labelValidator
+
+BB = QDialogButtonBox
+
+
+class LabelDialog(QDialog):
+
+    def __init__(self, text="Enter object label", parent=None, listItem=None):
+        super(LabelDialog, self).__init__(parent)
+
+        self.edit = QLineEdit()  # OLD
+        # self.edit = QTextEdit()
+        self.edit.setText(text)
+        # self.edit.setValidator(labelValidator()) # 验证有效性
+        self.edit.editingFinished.connect(self.postProcess)
+
+        model = QStringListModel()
+        model.setStringList(listItem)
+        completer = QCompleter()
+        completer.setModel(model)
+        self.edit.setCompleter(completer)
+
+        layout = QVBoxLayout()
+        layout.addWidget(self.edit)
+        self.buttonBox = bb = BB(BB.Ok | BB.Cancel, Qt.Horizontal, self)
+        bb.button(BB.Ok).setIcon(newIcon('done'))
+        bb.button(BB.Cancel).setIcon(newIcon('undo'))
+        bb.accepted.connect(self.validate)
+        bb.rejected.connect(self.reject)
+        layout.addWidget(bb)
+
+        # if listItem is not None and len(listItem) > 0:
+        #     self.listWidget = QListWidget(self)
+        #     for item in listItem:
+        #         self.listWidget.addItem(item)
+        #     self.listWidget.itemClicked.connect(self.listItemClick)
+        #     self.listWidget.itemDoubleClicked.connect(self.listItemDoubleClick)
+        #     layout.addWidget(self.listWidget)
+
+        self.setLayout(layout)
+
+    def validate(self):
+        try:
+            if self.edit.text().trimmed():
+                self.accept()
+        except AttributeError:
+            # PyQt5: AttributeError: 'str' object has no attribute 'trimmed'
+            if self.edit.text().strip():
+                self.accept()
+
+    def postProcess(self):
+        try:
+            self.edit.setText(self.edit.text().trimmed())
+            # print(self.edit.text())
+        except AttributeError:
+            # PyQt5: AttributeError: 'str' object has no attribute 'trimmed'
+            self.edit.setText(self.edit.text())
+            print(self.edit.text())
+
+    def popUp(self, text='', move=True):
+        self.edit.setText(text)
+        self.edit.setSelection(0, len(text))
+        self.edit.setFocus(Qt.PopupFocusReason)
+        if move:
+            cursor_pos = QCursor.pos()
+            parent_bottomRight = self.parentWidget().geometry()
+            max_x = parent_bottomRight.x() + parent_bottomRight.width() - self.sizeHint().width()
+            max_y = parent_bottomRight.y() + parent_bottomRight.height() - self.sizeHint().height()
+            max_global = self.parentWidget().mapToGlobal(QPoint(max_x, max_y))
+            if cursor_pos.x() > max_global.x():
+                cursor_pos.setX(max_global.x())
+            if cursor_pos.y() > max_global.y():
+                cursor_pos.setY(max_global.y())
+            self.move(cursor_pos)
+        return self.edit.text() if self.exec_() else None
+
+    def listItemClick(self, tQListWidgetItem):
+        try:
+            text = tQListWidgetItem.text().trimmed()
+        except AttributeError:
+            # PyQt5: AttributeError: 'str' object has no attribute 'trimmed'
+            text = tQListWidgetItem.text().strip()
+        self.edit.setText(text)
+
+    def listItemDoubleClick(self, tQListWidgetItem):
+        self.listItemClick(tQListWidgetItem)
+        self.validate()

PPOCRLabel/libs/labelFile.py

+# Copyright (c) 2016 Tzutalin
+# Create by TzuTaLin <tzu.ta.lin@gmail.com>
+
+try:
+    from PyQt5.QtGui import QImage
+except ImportError:
+    from PyQt4.QtGui import QImage
+
+from base64 import b64encode, b64decode
+from libs.pascal_voc_io import PascalVocWriter
+from libs.yolo_io import YOLOWriter
+from libs.pascal_voc_io import XML_EXT
+from enum import Enum
+import os.path
+import sys
+
+
+class LabelFileFormat(Enum):
+    PASCAL_VOC= 1
+    YOLO = 2
+
+
+class LabelFileError(Exception):
+    pass
+
+
+class LabelFile(object):
+    # It might be changed as window creates. By default, using XML ext
+    # suffix = '.lif'
+    suffix = XML_EXT
+
+    def __init__(self, filename=None):
+        self.shapes = ()
+        self.imagePath = None
+        self.imageData = None
+        self.verified = False
+
+    def savePascalVocFormat(self, filename, shapes, imagePath, imageData,
+                            lineColor=None, fillColor=None, databaseSrc=None):
+        imgFolderPath = os.path.dirname(imagePath)
+        imgFolderName = os.path.split(imgFolderPath)[-1]
+        imgFileName = os.path.basename(imagePath)
+        #imgFileNameWithoutExt = os.path.splitext(imgFileName)[0]
+        # Read from file path because self.imageData might be empty if saving to
+        # Pascal format
+        image = QImage()
+        image.load(imagePath)
+        imageShape = [image.height(), image.width(),
+                      1 if image.isGrayscale() else 3]
+        writer = PascalVocWriter(imgFolderName, imgFileName,
+                                 imageShape, localImgPath=imagePath)
+        writer.verified = self.verified
+
+        for shape in shapes:
+            points = shape['points']
+            label = shape['label']
+            # Add Chris
+            difficult = int(shape['difficult'])
+            bndbox = LabelFile.convertPoints2BndBox(points)
+            writer.addBndBox(bndbox[0], bndbox[1], bndbox[2], bndbox[3], label, difficult)
+
+        writer.save(targetFile=filename)
+        return
+
+    def saveYoloFormat(self, filename, shapes, imagePath, imageData, classList,
+                            lineColor=None, fillColor=None, databaseSrc=None):
+        imgFolderPath = os.path.dirname(imagePath)
+        imgFolderName = os.path.split(imgFolderPath)[-1]
+        imgFileName = os.path.basename(imagePath)
+        #imgFileNameWithoutExt = os.path.splitext(imgFileName)[0]
+        # Read from file path because self.imageData might be empty if saving to
+        # Pascal format
+        image = QImage()
+        image.load(imagePath)
+        imageShape = [image.height(), image.width(),
+                      1 if image.isGrayscale() else 3]
+        writer = YOLOWriter(imgFolderName, imgFileName,
+                                 imageShape, localImgPath=imagePath)
+        writer.verified = self.verified
+
+        for shape in shapes:
+            points = shape['points']
+            label = shape['label']
+            # Add Chris
+            difficult = int(shape['difficult'])
+            bndbox = LabelFile.convertPoints2BndBox(points)
+            writer.addBndBox(bndbox[0], bndbox[1], bndbox[2], bndbox[3], label, difficult)
+
+        writer.save(targetFile=filename, classList=classList)
+        return
+
+    def toggleVerify(self):
+        self.verified = not self.verified
+
+    ''' ttf is disable
+    def load(self, filename):
+        import json
+        with open(filename, 'rb') as f:
+                data = json.load(f)
+                imagePath = data['imagePath']
+                imageData = b64decode(data['imageData'])
+                lineColor = data['lineColor']
+                fillColor = data['fillColor']
+                shapes = ((s['label'], s['points'], s['line_color'], s['fill_color'])\
+                        for s in data['shapes'])
+                # Only replace data after everything is loaded.
+                self.shapes = shapes
+                self.imagePath = imagePath
+                self.imageData = imageData
+                self.lineColor = lineColor
+                self.fillColor = fillColor
+
+    def save(self, filename, shapes, imagePath, imageData, lineColor=None, fillColor=None):
+        import json
+        with open(filename, 'wb') as f:
+                json.dump(dict(
+                    shapes=shapes,
+                    lineColor=lineColor, fillColor=fillColor,
+                    imagePath=imagePath,
+                    imageData=b64encode(imageData)),
+                    f, ensure_ascii=True, indent=2)
+    '''
+
+    @staticmethod
+    def isLabelFile(filename):
+        fileSuffix = os.path.splitext(filename)[1].lower()
+        return fileSuffix == LabelFile.suffix
+
+    @staticmethod
+    def convertPoints2BndBox(points):
+        xmin = float('inf')
+        ymin = float('inf')
+        xmax = float('-inf')
+        ymax = float('-inf')
+        for p in points:
+            x = p[0]
+            y = p[1]
+            xmin = min(x, xmin)
+            ymin = min(y, ymin)
+            xmax = max(x, xmax)
+            ymax = max(y, ymax)
+
+        # Martin Kersner, 2015/11/12
+        # 0-valued coordinates of BB caused an error while
+        # training faster-rcnn object detector.
+        if xmin < 1:
+            xmin = 1
+
+        if ymin < 1:
+            ymin = 1
+
+        return (int(xmin), int(ymin), int(xmax), int(ymax))

PPOCRLabel/libs/pascal_voc_io.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+#!/usr/bin/env python
+# -*- coding: utf8 -*-
+import sys
+from xml.etree import ElementTree
+from xml.etree.ElementTree import Element, SubElement
+from lxml import etree
+import codecs
+from libs.constants import DEFAULT_ENCODING
+from libs.ustr import ustr
+
+
+XML_EXT = '.xml'
+ENCODE_METHOD = DEFAULT_ENCODING
+
+class PascalVocWriter:
+
+    def __init__(self, foldername, filename, imgSize,databaseSrc='Unknown', localImgPath=None):
+        self.foldername = foldername
+        self.filename = filename
+        self.databaseSrc = databaseSrc
+        self.imgSize = imgSize
+        self.boxlist = []
+        self.localImgPath = localImgPath
+        self.verified = False
+
+    def prettify(self, elem):
+        """
+            Return a pretty-printed XML string for the Element.
+        """
+        rough_string = ElementTree.tostring(elem, 'utf8')
+        root = etree.fromstring(rough_string)
+        return etree.tostring(root, pretty_print=True, encoding=ENCODE_METHOD).replace("  ".encode(), "\t".encode())
+        # minidom does not support UTF-8
+        '''reparsed = minidom.parseString(rough_string)
+        return reparsed.toprettyxml(indent="\t", encoding=ENCODE_METHOD)'''
+
+    def genXML(self):
+        """
+            Return XML root
+        """
+        # Check conditions
+        if self.filename is None or \
+                self.foldername is None or \
+                self.imgSize is None:
+            return None
+
+        top = Element('annotation')
+        if self.verified:
+            top.set('verified', 'yes')
+
+        folder = SubElement(top, 'folder')
+        folder.text = self.foldername
+
+        filename = SubElement(top, 'filename')
+        filename.text = self.filename
+
+        if self.localImgPath is not None:
+            localImgPath = SubElement(top, 'path')
+            localImgPath.text = self.localImgPath
+
+        source = SubElement(top, 'source')
+        database = SubElement(source, 'database')
+        database.text = self.databaseSrc
+
+        size_part = SubElement(top, 'size')
+        width = SubElement(size_part, 'width')
+        height = SubElement(size_part, 'height')
+        depth = SubElement(size_part, 'depth')
+        width.text = str(self.imgSize[1])
+        height.text = str(self.imgSize[0])
+        if len(self.imgSize) == 3:
+            depth.text = str(self.imgSize[2])
+        else:
+            depth.text = '1'
+
+        segmented = SubElement(top, 'segmented')
+        segmented.text = '0'
+        return top
+
+    def addBndBox(self, xmin, ymin, xmax, ymax, name, difficult):
+        bndbox = {'xmin': xmin, 'ymin': ymin, 'xmax': xmax, 'ymax': ymax}
+        bndbox['name'] = name
+        bndbox['difficult'] = difficult
+        self.boxlist.append(bndbox)
+
+    def appendObjects(self, top):
+        for each_object in self.boxlist:
+            object_item = SubElement(top, 'object')
+            name = SubElement(object_item, 'name')
+            name.text = ustr(each_object['name'])
+            pose = SubElement(object_item, 'pose')
+            pose.text = "Unspecified"
+            truncated = SubElement(object_item, 'truncated')
+            if int(float(each_object['ymax'])) == int(float(self.imgSize[0])) or (int(float(each_object['ymin']))== 1):
+                truncated.text = "1" # max == height or min
+            elif (int(float(each_object['xmax']))==int(float(self.imgSize[1]))) or (int(float(each_object['xmin']))== 1):
+                truncated.text = "1" # max == width or min
+            else:
+                truncated.text = "0"
+            difficult = SubElement(object_item, 'difficult')
+            difficult.text = str( bool(each_object['difficult']) & 1 )
+            bndbox = SubElement(object_item, 'bndbox')
+            xmin = SubElement(bndbox, 'xmin')
+            xmin.text = str(each_object['xmin'])
+            ymin = SubElement(bndbox, 'ymin')
+            ymin.text = str(each_object['ymin'])
+            xmax = SubElement(bndbox, 'xmax')
+            xmax.text = str(each_object['xmax'])
+            ymax = SubElement(bndbox, 'ymax')
+            ymax.text = str(each_object['ymax'])
+
+    def save(self, targetFile=None):
+        root = self.genXML()
+        self.appendObjects(root)
+        out_file = None
+        if targetFile is None:
+            out_file = codecs.open(
+                self.filename + XML_EXT, 'w', encoding=ENCODE_METHOD)
+        else:
+            out_file = codecs.open(targetFile, 'w', encoding=ENCODE_METHOD)
+
+        prettifyResult = self.prettify(root)
+        out_file.write(prettifyResult.decode('utf8'))
+        out_file.close()
+
+
+class PascalVocReader:
+
+    def __init__(self, filepath):
+        # shapes type:
+        # [labbel, [(x1,y1), (x2,y2), (x3,y3), (x4,y4)], color, color, difficult]
+        self.shapes = []
+        self.filepath = filepath
+        self.verified = False
+        try:
+            self.parseXML()
+        except:
+            pass
+
+    def getShapes(self):
+        return self.shapes
+
+    def addShape(self, label, bndbox, difficult):
+        xmin = int(float(bndbox.find('xmin').text))
+        ymin = int(float(bndbox.find('ymin').text))
+        xmax = int(float(bndbox.find('xmax').text))
+        ymax = int(float(bndbox.find('ymax').text))
+        points = [(xmin, ymin), (xmax, ymin), (xmax, ymax), (xmin, ymax)]
+        self.shapes.append((label, points, None, None, difficult))
+
+    def parseXML(self):
+        assert self.filepath.endswith(XML_EXT), "Unsupport file format"
+        parser = etree.XMLParser(encoding=ENCODE_METHOD)
+        xmltree = ElementTree.parse(self.filepath, parser=parser).getroot()
+        filename = xmltree.find('filename').text
+        try:
+            verified = xmltree.attrib['verified']
+            if verified == 'yes':
+                self.verified = True
+        except KeyError:
+            self.verified = False
+
+        for object_iter in xmltree.findall('object'):
+            bndbox = object_iter.find("bndbox")
+            label = object_iter.find('name').text
+            # Add chris
+            difficult = False
+            if object_iter.find('difficult') is not None:
+                difficult = bool(int(object_iter.find('difficult').text))
+            self.addShape(label, bndbox, difficult)
+        return True

PPOCRLabel/libs/settings.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+
+import pickle
+import os
+import sys
+
+
+class Settings(object):
+    def __init__(self):
+        # Be default, the home will be in the same folder as labelImg
+        home = os.path.expanduser("~")
+        self.data = {}
+        # self.path = os.path.join(home, '.labelImgSettings.pkl')
+        self.path = os.path.join(home, '.autoOCRSettings.pkl')
+
+    def __setitem__(self, key, value):
+        self.data[key] = value
+
+    def __getitem__(self, key):
+        return self.data[key]
+
+    def get(self, key, default=None):
+        if key in self.data:
+            return self.data[key]
+        return default
+
+    def save(self):
+        if self.path:
+            with open(self.path, 'wb') as f:
+                pickle.dump(self.data, f, pickle.HIGHEST_PROTOCOL)
+                return True
+        return False
+
+    def load(self):
+        try:
+            if os.path.exists(self.path):
+                with open(self.path, 'rb') as f:
+                    self.data = pickle.load(f)
+                    return True
+        except:
+            print('Loading setting failed')
+        return False
+
+    def reset(self):
+        if os.path.exists(self.path):
+            os.remove(self.path)
+            print('Remove setting pkl file ${0}'.format(self.path))
+        self.data = {}
+        self.path = None

PPOCRLabel/libs/shape.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+#!/usr/bin/python
+# -*- coding: utf-8 -*-
+
+
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+from libs.utils import distance
+import sys
+
+DEFAULT_LINE_COLOR = QColor(0, 255, 0, 128)
+DEFAULT_FILL_COLOR = QColor(255, 0, 0, 128)
+DEFAULT_SELECT_LINE_COLOR = QColor(255, 255, 255)
+DEFAULT_SELECT_FILL_COLOR = QColor(0, 128, 255, 155)
+DEFAULT_VERTEX_FILL_COLOR = QColor(0, 255, 0, 255)
+DEFAULT_HVERTEX_FILL_COLOR = QColor(255, 0, 0)
+MIN_Y_LABEL = 10
+
+
+class Shape(object):
+    P_SQUARE, P_ROUND = range(2)
+
+    MOVE_VERTEX, NEAR_VERTEX = range(2)
+
+    # The following class variables influence the drawing
+    # of _all_ shape objects.
+    line_color = DEFAULT_LINE_COLOR
+    fill_color = DEFAULT_FILL_COLOR
+    select_line_color = DEFAULT_SELECT_LINE_COLOR
+    select_fill_color = DEFAULT_SELECT_FILL_COLOR
+    vertex_fill_color = DEFAULT_VERTEX_FILL_COLOR
+    hvertex_fill_color = DEFAULT_HVERTEX_FILL_COLOR
+    point_type = P_ROUND
+    point_size = 8
+    scale = 1.0
+
+    def __init__(self, label=None, line_color=None, difficult=False, paintLabel=False):
+        self.label = label
+        self.points = []
+        self.fill = False
+        self.selected = False
+        self.difficult = difficult
+        self.paintLabel = paintLabel
+
+        self._highlightIndex = None
+        self._highlightMode = self.NEAR_VERTEX
+        self._highlightSettings = {
+            self.NEAR_VERTEX: (4, self.P_ROUND),
+            self.MOVE_VERTEX: (1.5, self.P_SQUARE),
+        }
+
+        self._closed = False
+
+        if line_color is not None:
+            # Override the class line_color attribute
+            # with an object attribute. Currently this
+            # is used for drawing the pending line a different color.
+            self.line_color = line_color
+
+    def close(self):
+        self._closed = True
+
+    def reachMaxPoints(self):
+        if len(self.points) >= 4:
+            return True
+        return False
+
+    def addPoint(self, point):
+        if not self.reachMaxPoints():
+            self.points.append(point)
+
+    def popPoint(self):
+        if self.points:
+            return self.points.pop()
+        return None
+
+    def isClosed(self):
+        return self._closed
+
+    def setOpen(self):
+        self._closed = False
+
+    def paint(self, painter):
+        if self.points:
+            color = self.select_line_color if self.selected else self.line_color
+            pen = QPen(color)
+            # Try using integer sizes for smoother drawing(?)
+            pen.setWidth(max(1, int(round(2.0 / self.scale))))
+            painter.setPen(pen)
+
+            line_path = QPainterPath()
+            vrtx_path = QPainterPath()
+
+            line_path.moveTo(self.points[0])
+            # Uncommenting the following line will draw 2 paths
+            # for the 1st vertex, and make it non-filled, which
+            # may be desirable.
+            #self.drawVertex(vrtx_path, 0)
+
+            for i, p in enumerate(self.points):
+                line_path.lineTo(p)
+                self.drawVertex(vrtx_path, i)
+            if self.isClosed():
+                line_path.lineTo(self.points[0])
+
+            painter.drawPath(line_path)
+            painter.drawPath(vrtx_path)
+            painter.fillPath(vrtx_path, self.vertex_fill_color)
+
+            # Draw text at the top-left
+            if self.paintLabel:
+                min_x = sys.maxsize
+                min_y = sys.maxsize
+                for point in self.points:
+                    min_x = min(min_x, point.x())
+                    min_y = min(min_y, point.y())
+                if min_x != sys.maxsize and min_y != sys.maxsize:
+                    font = QFont()
+                    font.setPointSize(8)
+                    font.setBold(True)
+                    painter.setFont(font)
+                    if(self.label == None):
+                        self.label = ""
+                    if(min_y < MIN_Y_LABEL):
+                        min_y += MIN_Y_LABEL
+                    painter.drawText(min_x, min_y, self.label)
+
+            if self.fill:
+                color = self.select_fill_color if self.selected else self.fill_color
+                painter.fillPath(line_path, color)
+
+    def drawVertex(self, path, i):
+        d = self.point_size / self.scale
+        shape = self.point_type
+        point = self.points[i]
+        if i == self._highlightIndex:
+            size, shape = self._highlightSettings[self._highlightMode]
+            d *= size
+        if self._highlightIndex is not None:
+            self.vertex_fill_color = self.hvertex_fill_color
+        else:
+            self.vertex_fill_color = Shape.vertex_fill_color
+        if shape == self.P_SQUARE:
+            path.addRect(point.x() - d / 2, point.y() - d / 2, d, d)
+        elif shape == self.P_ROUND:
+            path.addEllipse(point, d / 2.0, d / 2.0)
+        else:
+            assert False, "unsupported vertex shape"
+
+    def nearestVertex(self, point, epsilon):
+        for i, p in enumerate(self.points):
+            if distance(p - point) <= epsilon:
+                return i
+        return None
+
+    def containsPoint(self, point):
+        return self.makePath().contains(point)
+
+    def makePath(self):
+        path = QPainterPath(self.points[0])
+        for p in self.points[1:]:
+            path.lineTo(p)
+        return path
+
+    def boundingRect(self):
+        return self.makePath().boundingRect()
+
+    def moveBy(self, offset):
+        self.points = [p + offset for p in self.points]
+
+    def moveVertexBy(self, i, offset):
+        self.points[i] = self.points[i] + offset
+
+    def highlightVertex(self, i, action):
+        self._highlightIndex = i
+        self._highlightMode = action
+
+    def highlightClear(self):
+        self._highlightIndex = None
+
+    def copy(self):
+        shape = Shape("%s" % self.label)
+        shape.points = [p for p in self.points]
+        shape.fill = self.fill
+        shape.selected = self.selected
+        shape._closed = self._closed
+        if self.line_color != Shape.line_color:
+            shape.line_color = self.line_color
+        if self.fill_color != Shape.fill_color:
+            shape.fill_color = self.fill_color
+        shape.difficult = self.difficult
+        return shape
+
+    def __len__(self):
+        return len(self.points)
+
+    def __getitem__(self, key):
+        return self.points[key]
+
+    def __setitem__(self, key, value):
+        self.points[key] = value

PPOCRLabel/libs/stringBundle.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+
+#!/usr/bin/env python
+# -*- coding: utf-8 -*-
+import re
+import os
+import sys
+import locale
+from libs.ustr import ustr
+
+try:
+    from PyQt5.QtCore import *
+except ImportError:
+    if sys.version_info.major >= 3:
+        import sip
+        sip.setapi('QVariant', 2)
+    from PyQt4.QtCore import *
+
+
+class StringBundle:
+
+    __create_key = object()
+
+    def __init__(self, create_key, localeStr):
+        assert(create_key == StringBundle.__create_key), "StringBundle must be created using StringBundle.getBundle"
+        self.idToMessage = {}
+        paths = self.__createLookupFallbackList(localeStr)
+        for path in paths:
+            self.__loadBundle(path)
+
+    @classmethod
+    def getBundle(cls, localeStr=None):
+        if localeStr is None:
+            try:
+                localeStr = locale.getlocale()[0] if locale.getlocale() and len(
+                    locale.getlocale()) > 0 else os.getenv('LANG')
+            except:
+                print('Invalid locale')
+                localeStr = 'en'
+
+        return StringBundle(cls.__create_key, localeStr)
+
+    def getString(self, stringId):
+        assert(stringId in self.idToMessage), "Missing string id : " + stringId
+        return self.idToMessage[stringId]
+
+    def __createLookupFallbackList(self, localeStr):
+        resultPaths = []
+        basePath = ":/strings"
+        resultPaths.append(basePath)
+        if localeStr is not None:
+            # Don't follow standard BCP47. Simple fallback
+            tags = re.split('[^a-zA-Z]', localeStr)
+            for tag in tags:
+                lastPath = resultPaths[-1]
+                resultPaths.append(lastPath + '-' + tag)
+
+        return resultPaths
+
+    def __loadBundle(self, path):
+        PROP_SEPERATOR = '='
+        f = QFile(path)
+        if f.exists():
+            if f.open(QIODevice.ReadOnly | QFile.Text):
+                text = QTextStream(f)
+                text.setCodec("UTF-8")
+
+            while not text.atEnd():
+                line = ustr(text.readLine())
+                key_value = line.split(PROP_SEPERATOR)
+                key = key_value[0].strip()
+                value = PROP_SEPERATOR.join(key_value[1:]).strip().strip('"')
+                self.idToMessage[key] = value
+
+            f.close()

PPOCRLabel/libs/toolBar.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import *
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+
+class ToolBar(QToolBar):
+
+    def __init__(self, title):
+        super(ToolBar, self).__init__(title)
+        layout = self.layout()
+        m = (0, 0, 0, 0)
+        layout.setSpacing(0)
+        layout.setContentsMargins(*m)
+        self.setContentsMargins(*m)
+        self.setWindowFlags(self.windowFlags() | Qt.FramelessWindowHint)
+
+    def addAction(self, action):
+        if isinstance(action, QWidgetAction):
+            return super(ToolBar, self).addAction(action)
+        btn = ToolButton()
+        btn.setDefaultAction(action)
+        btn.setToolButtonStyle(self.toolButtonStyle())
+        self.addWidget(btn)
+
+
+class ToolButton(QToolButton):
+    """ToolBar companion class which ensures all buttons have the same size."""
+    minSize = (60, 60)
+
+    def minimumSizeHint(self):
+        ms = super(ToolButton, self).minimumSizeHint()
+        w1, h1 = ms.width(), ms.height()
+        w2, h2 = self.minSize
+        ToolButton.minSize = max(w1, w2), max(h1, h2)
+        return QSize(*ToolButton.minSize)

PPOCRLabel/libs/ustr.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+import sys
+from libs.constants import DEFAULT_ENCODING
+
+def ustr(x):
+    '''py2/py3 unicode helper'''
+
+    if sys.version_info < (3, 0, 0):
+        from PyQt4.QtCore import QString
+        if type(x) == str:
+            return x.decode(DEFAULT_ENCODING)
+        if type(x) == QString:
+            #https://blog.csdn.net/friendan/article/details/51088476
+            #https://blog.csdn.net/xxm524/article/details/74937308
+            return unicode(x.toUtf8(), DEFAULT_ENCODING, 'ignore')
+        return x
+    else:
+        return x

PPOCRLabel/libs/utils.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+from math import sqrt
+from libs.ustr import ustr
+import hashlib
+import re
+import sys
+import cv2
+import numpy as np
+
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import *
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+
+def newIcon(icon, iconSize=None):
+    if iconSize is not None:
+        return QIcon(QIcon(':/' + icon).pixmap(iconSize,iconSize))
+    else:
+        return QIcon(':/' + icon)
+
+
+def newButton(text, icon=None, slot=None):
+    b = QPushButton(text)
+    if icon is not None:
+        b.setIcon(newIcon(icon))
+    if slot is not None:
+        b.clicked.connect(slot)
+    return b
+
+
+def newAction(parent, text, slot=None, shortcut=None, icon=None,
+              tip=None, checkable=False, enabled=True, iconSize=None):
+    """Create a new action and assign callbacks, shortcuts, etc."""
+    a = QAction(text, parent)
+    if icon is not None:
+        if iconSize is not None:
+            a.setIcon(newIcon(icon, iconSize))
+        else:
+            a.setIcon(newIcon(icon))
+    if shortcut is not None:
+        if isinstance(shortcut, (list, tuple)):
+            a.setShortcuts(shortcut)
+        else:
+            a.setShortcut(shortcut)
+    if tip is not None:
+        a.setToolTip(tip)
+        a.setStatusTip(tip)
+    if slot is not None:
+        a.triggered.connect(slot)
+    if checkable:
+        a.setCheckable(True)
+    a.setEnabled(enabled)
+    return a
+
+
+def addActions(widget, actions):
+    for action in actions:
+        if action is None:
+            widget.addSeparator()
+        elif isinstance(action, QMenu):
+            widget.addMenu(action)
+        else:
+            widget.addAction(action)
+
+
+def labelValidator():
+    return QRegExpValidator(QRegExp(r'^[^ \t].+'), None)
+
+
+class struct(object):
+
+    def __init__(self, **kwargs):
+        self.__dict__.update(kwargs)
+
+
+def distance(p):
+    return sqrt(p.x() * p.x() + p.y() * p.y())
+
+
+def fmtShortcut(text):
+    mod, key = text.split('+', 1)
+    return '<b>%s</b>+<b>%s</b>' % (mod, key)
+
+
+def generateColorByText(text):
+    s = ustr(text)
+    hashCode = int(hashlib.sha256(s.encode('utf-8')).hexdigest(), 16)
+    r = int((hashCode / 255) % 255)
+    g = int((hashCode / 65025)  % 255)
+    b = int((hashCode / 16581375)  % 255)
+    return QColor(r, g, b, 100)
+
+def have_qstring():
+    '''p3/qt5 get rid of QString wrapper as py3 has native unicode str type'''
+    return not (sys.version_info.major >= 3 or QT_VERSION_STR.startswith('5.'))
+
+def util_qt_strlistclass():
+    return QStringList if have_qstring() else list
+
+def natural_sort(list, key=lambda s:s):
+    """
+    Sort the list into natural alphanumeric order.
+    """
+    def get_alphanum_key_func(key):
+        convert = lambda text: int(text) if text.isdigit() else text
+        return lambda s: [convert(c) for c in re.split('([0-9]+)', key(s))]
+    sort_key = get_alphanum_key_func(key)
+    list.sort(key=sort_key)
+
+
+def get_rotate_crop_image(img, points):
+
+    try:
+        img_crop_width = int(
+            max(
+                np.linalg.norm(points[0] - points[1]),
+                np.linalg.norm(points[2] - points[3])))
+        img_crop_height = int(
+            max(
+                np.linalg.norm(points[0] - points[3]),
+                np.linalg.norm(points[1] - points[2])))
+        pts_std = np.float32([[0, 0], [img_crop_width, 0],
+                              [img_crop_width, img_crop_height],
+                              [0, img_crop_height]])
+        M = cv2.getPerspectiveTransform(points, pts_std)
+        dst_img = cv2.warpPerspective(
+            img,
+            M, (img_crop_width, img_crop_height),
+            borderMode=cv2.BORDER_REPLICATE,
+            flags=cv2.INTER_CUBIC)
+        dst_img_height, dst_img_width = dst_img.shape[0:2]
+        if dst_img_height * 1.0 / dst_img_width >= 1.5:
+            dst_img = np.rot90(dst_img)
+        return dst_img
+    except Exception as e:
+        print(e)
+
+def steps():
+    msg = "1. 安装与运行：使用上述命令安装与运行程序。\n" \
+          "2. 打开文件夹：在菜单栏点击 “文件” - 打开目录 选择待标记图片的文件夹.\n"\
+          "3. 自动标注：点击 ”自动标注“，使用PPOCR超轻量模型对图片文件名前图片状态为 “X” 的图片进行自动标注。\n" \
+          "4. 手动标注：点击 “矩形标注”（推荐直接在英文模式下点击键盘中的 “W”)，用户可对当前图片中模型未检出的部分进行手动" \
+          "绘制标记框。点击键盘P，则使用四点标注模式（或点击“编辑” - “四点标注”），用户依次点击4个点后，双击左键表示标注完成。\n" \
+          "5. 标记框绘制完成后，用户点击 “确认”，检测框会先被预分配一个 “待识别” 标签。\n" \
+          "6. 重新识别：将图片中的所有检测画绘制/调整完成后，点击 “重新识别”，PPOCR模型会对当前图片中的**所有检测框**重新识别。\n" \
+          "7. 内容更改：双击识别结果，对不准确的识别结果进行手动更改。\n" \
+          "8. 保存：点击 “保存”，图片状态切换为 “√”，跳转至下一张。\n" \
+          "9. 删除：点击 “删除图像”，图片将会被删除至回收站。\n" \
+          "10. 标注结果：关闭应用程序或切换文件路径后，手动保存过的标签将会被存放在所打开图片文件夹下的" \
+          "*Label.txt*中。在菜单栏点击 “PaddleOCR” - 保存识别结果后，会将此类图片的识别训练数据保存在*crop_img*文件夹下，" \
+          "识别标签保存在*rec_gt.txt*中。\n"
+    return msg
\ No newline at end of file

PPOCRLabel/libs/yolo_io.py

+#!/usr/bin/env python
+# -*- coding: utf8 -*-
+import sys
+import os
+from xml.etree import ElementTree
+from xml.etree.ElementTree import Element, SubElement
+from lxml import etree
+import codecs
+from libs.constants import DEFAULT_ENCODING
+
+TXT_EXT = '.txt'
+ENCODE_METHOD = DEFAULT_ENCODING
+
+class YOLOWriter:
+
+    def __init__(self, foldername, filename, imgSize, databaseSrc='Unknown', localImgPath=None):
+        self.foldername = foldername
+        self.filename = filename
+        self.databaseSrc = databaseSrc
+        self.imgSize = imgSize
+        self.boxlist = []
+        self.localImgPath = localImgPath
+        self.verified = False
+
+    def addBndBox(self, xmin, ymin, xmax, ymax, name, difficult):
+        bndbox = {'xmin': xmin, 'ymin': ymin, 'xmax': xmax, 'ymax': ymax}
+        bndbox['name'] = name
+        bndbox['difficult'] = difficult
+        self.boxlist.append(bndbox)
+
+    def BndBox2YoloLine(self, box, classList=[]):
+        xmin = box['xmin']
+        xmax = box['xmax']
+        ymin = box['ymin']
+        ymax = box['ymax']
+
+        xcen = float((xmin + xmax)) / 2 / self.imgSize[1]
+        ycen = float((ymin + ymax)) / 2 / self.imgSize[0]
+
+        w = float((xmax - xmin)) / self.imgSize[1]
+        h = float((ymax - ymin)) / self.imgSize[0]
+
+        # PR387
+        boxName = box['name']
+        if boxName not in classList:
+            classList.append(boxName)
+
+        classIndex = classList.index(boxName)
+
+        return classIndex, xcen, ycen, w, h
+
+    def save(self, classList=[], targetFile=None):
+
+        out_file = None #Update yolo .txt
+        out_class_file = None   #Update class list .txt
+
+        if targetFile is None:
+            out_file = open(
+            self.filename + TXT_EXT, 'w', encoding=ENCODE_METHOD)
+            classesFile = os.path.join(os.path.dirname(os.path.abspath(self.filename)), "classes.txt")
+            out_class_file = open(classesFile, 'w')
+
+        else:
+            out_file = codecs.open(targetFile, 'w', encoding=ENCODE_METHOD)
+            classesFile = os.path.join(os.path.dirname(os.path.abspath(targetFile)), "classes.txt")
+            out_class_file = open(classesFile, 'w')
+
+
+        for box in self.boxlist:
+            classIndex, xcen, ycen, w, h = self.BndBox2YoloLine(box, classList)
+            # print (classIndex, xcen, ycen, w, h)
+            out_file.write("%d %.6f %.6f %.6f %.6f\n" % (classIndex, xcen, ycen, w, h))
+
+        # print (classList)
+        # print (out_class_file)
+        for c in classList:
+            out_class_file.write(c+'\n')
+
+        out_class_file.close()
+        out_file.close()
+
+
+
+class YoloReader:
+
+    def __init__(self, filepath, image, classListPath=None):
+        # shapes type:
+        # [labbel, [(x1,y1), (x2,y2), (x3,y3), (x4,y4)], color, color, difficult]
+        self.shapes = []
+        self.filepath = filepath
+
+        if classListPath is None:
+            dir_path = os.path.dirname(os.path.realpath(self.filepath))
+            self.classListPath = os.path.join(dir_path, "classes.txt")
+        else:
+            self.classListPath = classListPath
+
+        # print (filepath, self.classListPath)
+
+        classesFile = open(self.classListPath, 'r')
+        self.classes = classesFile.read().strip('\n').split('\n')
+
+        # print (self.classes)
+
+        imgSize = [image.height(), image.width(),
+                      1 if image.isGrayscale() else 3]
+
+        self.imgSize = imgSize
+
+        self.verified = False
+        # try:
+        self.parseYoloFormat()
+        # except:
+            # pass
+
+    def getShapes(self):
+        return self.shapes
+
+    def addShape(self, label, xmin, ymin, xmax, ymax, difficult):
+
+        points = [(xmin, ymin), (xmax, ymin), (xmax, ymax), (xmin, ymax)]
+        self.shapes.append((label, points, None, None, difficult))
+
+    def yoloLine2Shape(self, classIndex, xcen, ycen, w, h):
+        label = self.classes[int(classIndex)]
+
+        xmin = max(float(xcen) - float(w) / 2, 0)
+        xmax = min(float(xcen) + float(w) / 2, 1)
+        ymin = max(float(ycen) - float(h) / 2, 0)
+        ymax = min(float(ycen) + float(h) / 2, 1)
+
+        xmin = int(self.imgSize[1] * xmin)
+        xmax = int(self.imgSize[1] * xmax)
+        ymin = int(self.imgSize[0] * ymin)
+        ymax = int(self.imgSize[0] * ymax)
+
+        return label, xmin, ymin, xmax, ymax
+
+    def parseYoloFormat(self):
+        bndBoxFile = open(self.filepath, 'r')
+        for bndBox in bndBoxFile:
+            classIndex, xcen, ycen, w, h = bndBox.strip().split(' ')
+            label, xmin, ymin, xmax, ymax = self.yoloLine2Shape(classIndex, xcen, ycen, w, h)
+
+            # Caveat: difficult flag is discarded when saved as yolo format.
+            self.addShape(label, xmin, ymin, xmax, ymax, False)

PPOCRLabel/libs/zoomWidget.py

+# Copyright (c) <2015-Present> Tzutalin
+# Copyright (C) 2013  MIT, Computer Science and Artificial Intelligence Laboratory. Bryan Russell, Antonio Torralba,
+# William T. Freeman. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
+# associated documentation files (the "Software"), to deal in the Software without restriction, including without
+# limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the
+# Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
+# The above copyright notice and this permission notice shall be included in all copies or substantial portions of
+# the Software. THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT
+# NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
+# SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
+# CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
+# THE SOFTWARE.
+try:
+    from PyQt5.QtGui import *
+    from PyQt5.QtCore import *
+    from PyQt5.QtWidgets import *
+except ImportError:
+    from PyQt4.QtGui import *
+    from PyQt4.QtCore import *
+
+
+class ZoomWidget(QSpinBox):
+
+    def __init__(self, value=100):
+        super(ZoomWidget, self).__init__()
+        self.setButtonSymbols(QAbstractSpinBox.NoButtons)
+        self.setRange(1, 500)
+        self.setSuffix(' %')
+        self.setValue(value)
+        self.setToolTip(u'Zoom Level')
+        self.setStatusTip(self.toolTip())
+        self.setAlignment(Qt.AlignCenter)
+
+    def minimumSizeHint(self):
+        height = super(ZoomWidget, self).minimumSizeHint().height()
+        fm = QFontMetrics(self.font())
+        width = fm.width(str(self.maximum()))
+        return QSize(width, height)

PPOCRLabel/requirements/requirements-linux-python3.txt

+pyqt5==5.10.1
+lxml==4.2.4

PPOCRLabel/resources.qrc

+<!DOCTYPE RCC><RCC version="1.0">
+<qresource>
+
+<file alias="help">resources/icons/help.png</file>
+<file alias="app">resources/icons/app.png</file>
+<file alias="Auto">resources/icons/Auto.png</file>
+<file alias="reRec">resources/icons/reRec.png</file>
+<file alias="expert">resources/icons/expert2.png</file>
+<file alias="done">resources/icons/done.png</file>
+<file alias="file">resources/icons/file.png</file>
+<file alias="labels">resources/icons/labels.png</file>
+<file alias="new">resources/icons/objects.png</file>
+<file alias="close">resources/icons/close.png</file>
+<file alias="fit-width">resources/icons/fit-width.png</file>
+<file alias="fit-window">resources/icons/fit-window.png</file>
+<file alias="undo">resources/icons/undo.png</file>
+<file alias="hide">resources/icons/eye.png</file>
+<file alias="quit">resources/icons/quit.png</file>
+<file alias="copy">resources/icons/copy.png</file>
+<file alias="edit">resources/icons/edit.png</file>
+<file alias="open">resources/icons/open.png</file>
+<file alias="save">resources/icons/save.png</file>
+<file alias="format_voc">resources/icons/format_voc.png</file>
+<file alias="format_yolo">resources/icons/format_yolo.png</file>
+<file alias="save-as">resources/icons/save-as.png</file>
+<file alias="color">resources/icons/color.png</file>
+<file alias="color_line">resources/icons/color_line.png</file>
+<file alias="zoom">resources/icons/zoom.png</file>
+<file alias="zoom-in">resources/icons/zoom-in.png</file>
+<file alias="zoom-out">resources/icons/zoom-out.png</file>
+<file alias="delete">resources/icons/cancel.png</file>
+<file alias="next">resources/icons/next.png</file>
+<file alias="prev">resources/icons/prev.png</file>
+<file alias="resetall">resources/icons/resetall.png</file>
+<file alias="verify">resources/icons/verify.png</file>
+<file alias="strings">resources/strings/strings.properties</file>
+<file alias="strings-zh-TW">resources/strings/strings-zh-TW.properties</file>
+<file alias="strings-zh-CN">resources/strings/strings-zh-CN.properties</file>
+</qresource>
+</RCC>

PPOCRLabel/resources/icons/app.svg

+<?xml version="1.0" standalone="no"?><!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"><svg t="1605840513947" class="icon" viewBox="0 0 1036 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="570" xmlns:xlink="http://www.w3.org/1999/xlink" width="202.34375" height="200"><defs><style type="text/css"></style></defs><path d="M938.74776 69.162438L893.455144 52.837457a67.26383 67.26383 0 1 0-20.007307 64.317969l42.469499 15.465771c28.722146 10.433258 53.516478 49.097686 53.516478 83.466066v598.869028c0 34.000148-24.548843 72.664576-53.639223 82.729601l-38.296195 13.501863a67.26383 67.26383 0 1 0 14.115585 66.650109l46.397313-16.447724c55.60313-19.51633 98.195372-83.711555 98.195373-146.311105V216.210008c0-62.354061-42.960475-126.917519-98.195373-147.293059zM222.16703 888.971053a66.895597 66.895597 0 0 0-52.166292 24.548843L121.516773 897.440403A89.1123 89.1123 0 0 1 67.26383 822.443688V208.722611a89.97151 89.97151 0 0 1 54.252943-76.101414l51.920803-18.657121a67.632063 67.632063 0 1 0-15.465771-65.913643L98.195372 69.285182A157.358084 157.358084 0 0 0 0 208.722611v613.721077a156.253386 156.253386 0 0 0 99.30007 138.332731L159.56748 982.011168a67.509318 67.509318 0 1 0 62.59955-93.040115z" fill="#444444" p-id="571"></path><path d="M426.29066 572.413721l86.780161-205.105584 91.935417 205.105584z m282.311696 230.759125h119.798354l-267.58239-592.854561-98.195372 1.104698-251.625642 592.118096 118.079936-1.350187L380.507068 680.183142h272.492158l55.112153 122.744215z" fill="#444444" p-id="572"></path></svg>
\ No newline at end of file

PPOCRLabel/setup.cfg

+[bumpversion]
+commit = True
+tag = True
+
+[bumpversion:file:setup.py]
+
+[bdist_wheel]
+universal = 1

configs/det/det_db_icdar15_reader.yml

@@ -15,8 +15,6 @@ EvalReader:
 TestReader:
   reader_function: ppocr.data.det.dataset_traversal,EvalTestReader
   process_function: ppocr.data.det.db_process,DBProcessTest
-  infer_img:
   img_set_dir: ./train_data/icdar2015/text_localization/
   label_file_path: ./train_data/icdar2015/text_localization/test_icdar2015_label.txt
-  test_image_shape: [736, 1280]
   do_eval: True

configs/det/det_east_icdar15_reader.yml

@@ -17,7 +17,6 @@ EvalReader:
 TestReader:
   reader_function: ppocr.data.det.dataset_traversal,EvalTestReader
   process_function: ppocr.data.det.east_process,EASTProcessTest
-  infer_img:
   img_set_dir: ./train_data/icdar2015/text_localization/
   label_file_path: ./train_data/icdar2015/text_localization/test_icdar2015_label.txt
   do_eval: True

configs/det/det_mv3_db.yml

@@ -16,6 +16,7 @@ Global:
   checkpoints:
   save_res_path: ./output/det_db/predicts_db.txt
   save_inference_dir:
+  infer_img:

 Architecture:
   function: ppocr.modeling.architectures.det_model,DetModel
@@ -24,7 +25,6 @@ Backbone:
   function: ppocr.modeling.backbones.det_mobilenet_v3,MobileNetV3
   scale: 0.5
   model_name: large
-  disable_se: true

 Head:
   function: ppocr.modeling.heads.det_db_head,DBHead

configs/det/det_mv3_east.yml

@@ -15,6 +15,7 @@ Global:
   checkpoints:
   save_res_path: ./output/det_east/predicts_east.txt
   save_inference_dir:
+  infer_img:

 Architecture:
   function: ppocr.modeling.architectures.det_model,DetModel

configs/det/det_r50_vd_db.yml

@@ -15,6 +15,7 @@ Global:
   save_res_path: ./output/det_db/predicts_db.txt
   checkpoints:
   save_inference_dir:
+  infer_img:

 Architecture:
   function: ppocr.modeling.architectures.det_model,DetModel

configs/det/det_r50_vd_east.yml

@@ -15,6 +15,7 @@ Global:
   save_res_path: ./output/det_east/predicts_east.txt
   checkpoints:
   save_inference_dir:
+  infer_img:

 Architecture:
   function: ppocr.modeling.architectures.det_model,DetModel

configs/det/det_r50_vd_sast_icdar15.yml

@@ -15,6 +15,7 @@ Global:
   save_res_path: ./output/det_sast/predicts_sast.txt
   checkpoints:
   save_inference_dir:
+  infer_img:

 Architecture:
   function: ppocr.modeling.architectures.det_model,DetModel
