Add U2Net and U2Netp module

modules/image/semantic_segmentation/U2Net/README.md

+## 概述
+* ![](http://latex.codecogs.com/svg.latex?U^2Net)的网络结构如下图，其类似于编码-解码(Encoder-Decoder)结构的 U-Net
+* 每个 stage 由新提出的 RSU模块(residual U-block) 组成. 例如，En_1 即为基于 RSU 构建的
+
+![](https://ai-studio-static-online.cdn.bcebos.com/999d37b4ffdd49dc9e3315b7cec7b2c6918fdd57c8594ced9dded758a497913d)
+

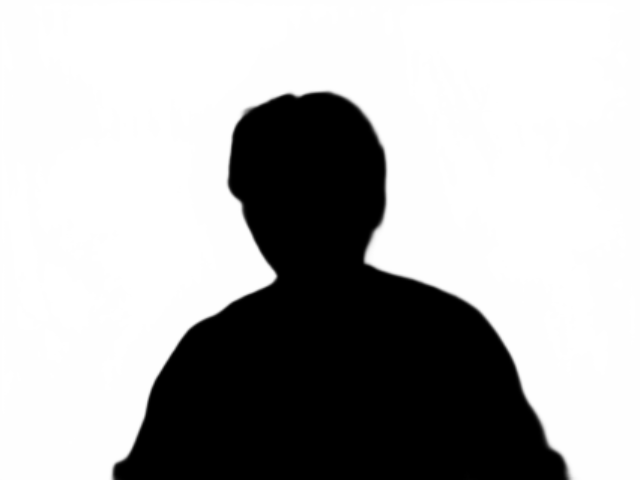

+## 效果展示
+![](https://ai-studio-static-online.cdn.bcebos.com/4d77bc3a05cf48bba6f67b797978f4cdf10f38288b9645d59393dd85cef58eff)
+![](https://ai-studio-static-online.cdn.bcebos.com/d7839c7207024747b32e42e49f7881bd2554d8408ab44e669fb340b50d4e38de)
+
+## API
+```python
+def Segmentation(
+        images=None,
+        paths=None,
+        batch_size=1,
+        input_size=320,
+        output_dir='output',
+        visualization=False):
+```
+图像前景背景分割 API
+
+**参数**
+* images (list[np.ndarray]) : 输入图像数据列表（BGR）
+* paths (list[str]) : 输入图像路径列表
+* batch_size (int) : 数据批大小
+* input_size (int) : 输入图像大小
+* output_dir (str) : 可视化图像输出目录
+* visualization (bool) : 是否可视化
+
+**返回**
+* results (list[np.ndarray]): 输出图像数据列表
+
+**代码示例**
+```python
+import cv2
+import paddlehub as hub
+
+model = hub.Module(name='U2Net')
+
+result = model.Segmentation(
+    images=[cv2.imread('/PATH/TO/IMAGE')],
+    paths=None,
+    batch_size=1,
+    input_size=320,
+    output_dir='output',
+    visualization=True)
+```
+
+## 查看代码
+https://github.com/NathanUA/U-2-Net
+
+## 依赖
+paddlepaddle >= 2.0.0rc0
+paddlehub >= 2.0.0b1

modules/image/semantic_segmentation/U2Net/module.py

+import os
+import paddle
+import paddle.nn as nn
+import numpy as np
+from U2Net.u2net import U2NET
+from U2Net.processor import Processor
+from paddlehub.module.module import moduleinfo
+
+@moduleinfo(
+    name="U2Net", # 模型名称
+    type="CV", # 模型类型
+    author="jm12138", # 作者名称
+    author_email="jm12138@qq.com", # 作者邮箱
+    summary="U2Net", # 模型介绍
+    version="1.0.0" # 版本号
+)
+class U2Net(nn.Layer):
+    def __init__(self):
+        super(U2Net, self).__init__()
+        self.model = U2NET(3,1)
+        state_dict = paddle.load(os.path.join(self.directory, 'u2net.pdparams'))
+        self.model.set_dict(state_dict)
+        self.model.eval()
+
+    def predict(self, input_datas):
+        outputs = []
+        for data in input_datas:
+            data = paddle.to_tensor(data, 'float32')
+            d1,d2,d3,d4,d5,d6,d7= self.model(data)
+            outputs.append(d1.numpy())
+
+        outputs = np.concatenate(outputs, 0)
+
+        return outputs
+
+    def Segmentation(
+        self,
+        images=None,
+        paths=None,
+        batch_size=1,
+        input_size=320,
+        output_dir='output',
+        visualization=False):
+
+        # 初始化数据处理器
+        processor = Processor(paths, images, batch_size, input_size)
+
+        # 模型预测
+        outputs = self.predict(processor.input_datas)
+
+        # 预测结果后处理
+        results = processor.postprocess(outputs, visualization=visualization, output_dir=output_dir)
+
+        return results

modules/image/semantic_segmentation/U2Net/processor.py

+import os
+import cv2
+import numpy as np
+
+__all__ = ['Processor']
+
+class Processor():
+    def __init__(self, paths, images, batch_size, input_size):
+        # 图像列表
+        self.imgs = self.load_datas(paths, images)
+
+        # 输入数据
+        self.input_datas = self.preprocess(self.imgs, batch_size, input_size)
+
+    # 读取数据函数
+    def load_datas(self, paths, images):
+        datas = []
+
+        # 读取数据列表
+        if paths is not None:
+            for im_path in paths:
+                assert os.path.isfile(im_path), "The {} isn't a valid file path.".format(im_path)
+                im = cv2.imread(im_path)
+                datas.append(im)
+
+        if images is not None:
+            datas = images
+
+        # 返回数据列表
+        return datas
+
+    # 预处理
+    def preprocess(self, imgs, batch_size=1, input_size=320):
+        input_datas = []
+        for image in imgs:
+            # h, w = image.shape[:2]
+            # if h > w:
+            #     new_h, new_w = input_size*h/w,input_size
+            # else:
+            #     new_h, new_w = input_size,input_size*w/h
+            # image = cv2.resize(image, (int(new_w), int(new_h)))
+
+            image = cv2.resize(image, (input_size, input_size))
+            tmpImg = np.zeros((image.shape[0],image.shape[1],3))
+            image = image/np.max(image)
+
+            tmpImg[:,:,0] = (image[:,:,0]-0.485)/0.229
+            tmpImg[:,:,1] = (image[:,:,1]-0.456)/0.224
+            tmpImg[:,:,2] = (image[:,:,2]-0.406)/0.225
+
+            # convert BGR to RGB
+            tmpImg = tmpImg.transpose((2, 0, 1))
+            tmpImg = tmpImg[np.newaxis,:,:,:]
+            input_datas.append(tmpImg)
+
+        input_datas = np.concatenate(input_datas, 0)
+
+        datas_num = input_datas.shape[0]
+        split_num = datas_num//batch_size+1 if datas_num%batch_size!=0 else datas_num//batch_size
+
+        input_datas = np.array_split(input_datas, split_num)
+
+        return input_datas
+
+    def normPRED(self, d):
+        ma = np.max(d)
+        mi = np.min(d)
+
+        dn = (d-mi)/(ma-mi)
+
+        return dn
+
+    # 后处理
+    def postprocess(self, outputs, visualization=False, output_dir='output'):
+        results = []
+        if visualization and not os.path.exists(output_dir):
+            os.mkdir(output_dir)
+
+        for i, image in enumerate(self.imgs):
+            # normalization
+            pred = 1.0 - outputs[i,0,:,:]
+
+            pred = self.normPRED(pred)
+
+            # convert torch tensor to numpy array
+            pred = pred.squeeze()
+            pred = (pred*255).astype(np.uint8)
+            h, w = image.shape[:2]
+            pred = cv2.resize(pred, (w, h))
+
+            results.append(pred)
+
+            if visualization:
+                cv2.imwrite(os.path.join(output_dir, 'result_%d.png' % i), pred)
+
+        return results
\ No newline at end of file

modules/image/semantic_segmentation/U2Net/u2net.py

+import paddle
+import paddle.nn as nn
+import paddle.nn.functional as F
+
+__all__ = ['U2NETP', 'U2NET']
+
+class REBNCONV(nn.Layer):
+    def __init__(self,in_ch=3,out_ch=3,dirate=1):
+        super(REBNCONV,self).__init__()
+
+        self.conv_s1 = nn.Conv2D(in_ch,out_ch,3,padding=1*dirate,dilation=1*dirate)
+        self.bn_s1 = nn.BatchNorm2D(out_ch)
+        self.relu_s1 = nn.ReLU()
+
+    def forward(self,x):
+
+        hx = x
+        xout = self.relu_s1(self.bn_s1(self.conv_s1(hx)))
+
+        return xout
+
+## upsample tensor 'src' to have the same spatial size with tensor 'tar'
+def _upsample_like(src,tar):
+
+    src = F.upsample(src,size=tar.shape[2:],mode='bilinear')
+
+    return src
+
+
+### RSU-7 ###
+class RSU7(nn.Layer):#UNet07DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU7,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool3 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool4 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv5 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool5 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv6 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv7 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv6d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv5d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv4d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+        hx = self.pool3(hx3)
+
+        hx4 = self.rebnconv4(hx)
+        hx = self.pool4(hx4)
+
+        hx5 = self.rebnconv5(hx)
+        hx = self.pool5(hx5)
+
+        hx6 = self.rebnconv6(hx)
+
+        hx7 = self.rebnconv7(hx6)
+
+        hx6d =  self.rebnconv6d(paddle.concat((hx7,hx6),1))
+        hx6dup = _upsample_like(hx6d,hx5)
+
+        hx5d =  self.rebnconv5d(paddle.concat((hx6dup,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.rebnconv4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-6 ###
+class RSU6(nn.Layer):#UNet06DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU6,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool3 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool4 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv5 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv6 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv5d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv4d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+        hx = self.pool3(hx3)
+
+        hx4 = self.rebnconv4(hx)
+        hx = self.pool4(hx4)
+
+        hx5 = self.rebnconv5(hx)
+
+        hx6 = self.rebnconv6(hx5)
+
+
+        hx5d =  self.rebnconv5d(paddle.concat((hx6,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.rebnconv4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-5 ###
+class RSU5(nn.Layer):#UNet05DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU5,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool3 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv5 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv4d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+        hx = self.pool3(hx3)
+
+        hx4 = self.rebnconv4(hx)
+
+        hx5 = self.rebnconv5(hx4)
+
+        hx4d = self.rebnconv4d(paddle.concat((hx5,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-4 ###
+class RSU4(nn.Layer):#UNet04DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU4,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+
+        hx4 = self.rebnconv4(hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-4F ###
+class RSU4F(nn.Layer):#UNet04FRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU4F,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=2)
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=4)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=8)
+
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=4)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=2)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx2 = self.rebnconv2(hx1)
+        hx3 = self.rebnconv3(hx2)
+
+        hx4 = self.rebnconv4(hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4,hx3),1))
+        hx2d = self.rebnconv2d(paddle.concat((hx3d,hx2),1))
+        hx1d = self.rebnconv1d(paddle.concat((hx2d,hx1),1))
+
+        return hx1d + hxin
+
+
+##### U^2-Net ####
+class U2NET(nn.Layer):
+
+    def __init__(self,in_ch=3,out_ch=1):
+        super(U2NET,self).__init__()
+
+        self.stage1 = RSU7(in_ch,32,64)
+        self.pool12 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage2 = RSU6(64,32,128)
+        self.pool23 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage3 = RSU5(128,64,256)
+        self.pool34 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage4 = RSU4(256,128,512)
+        self.pool45 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage5 = RSU4F(512,256,512)
+        self.pool56 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage6 = RSU4F(512,256,512)
+
+        # decoder
+        self.stage5d = RSU4F(1024,256,512)
+        self.stage4d = RSU4(1024,128,256)
+        self.stage3d = RSU5(512,64,128)
+        self.stage2d = RSU6(256,32,64)
+        self.stage1d = RSU7(128,16,64)
+
+        self.side1 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side2 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side3 = nn.Conv2D(128,out_ch,3,padding=1)
+        self.side4 = nn.Conv2D(256,out_ch,3,padding=1)
+        self.side5 = nn.Conv2D(512,out_ch,3,padding=1)
+        self.side6 = nn.Conv2D(512,out_ch,3,padding=1)
+
+        self.outconv = nn.Conv2D(6,out_ch,1)
+
+    def forward(self,x):
+
+        hx = x
+
+        #stage 1
+        hx1 = self.stage1(hx)
+        hx = self.pool12(hx1)
+
+        #stage 2
+        hx2 = self.stage2(hx)
+        hx = self.pool23(hx2)
+
+        #stage 3
+        hx3 = self.stage3(hx)
+        hx = self.pool34(hx3)
+
+        #stage 4
+        hx4 = self.stage4(hx)
+        hx = self.pool45(hx4)
+
+        #stage 5
+        hx5 = self.stage5(hx)
+        hx = self.pool56(hx5)
+
+        #stage 6
+        hx6 = self.stage6(hx)
+        hx6up = _upsample_like(hx6,hx5)
+
+        #-------------------- decoder --------------------
+        hx5d = self.stage5d(paddle.concat((hx6up,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.stage4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.stage3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.stage2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.stage1d(paddle.concat((hx2dup,hx1),1))
+
+
+        #side output
+        d1 = self.side1(hx1d)
+
+        d2 = self.side2(hx2d)
+        d2 = _upsample_like(d2,d1)
+
+        d3 = self.side3(hx3d)
+        d3 = _upsample_like(d3,d1)
+
+        d4 = self.side4(hx4d)
+        d4 = _upsample_like(d4,d1)
+
+        d5 = self.side5(hx5d)
+        d5 = _upsample_like(d5,d1)
+
+        d6 = self.side6(hx6)
+        d6 = _upsample_like(d6,d1)
+
+        d0 = self.outconv(paddle.concat((d1,d2,d3,d4,d5,d6),1))
+
+        return F.sigmoid(d0), F.sigmoid(d1), F.sigmoid(d2), F.sigmoid(d3), F.sigmoid(d4), F.sigmoid(d5), F.sigmoid(d6)
+
+### U^2-Net small ###
+class U2NETP(nn.Layer):
+
+    def __init__(self,in_ch=3,out_ch=1):
+        super(U2NETP,self).__init__()
+
+        self.stage1 = RSU7(in_ch,16,64)
+        self.pool12 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage2 = RSU6(64,16,64)
+        self.pool23 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage3 = RSU5(64,16,64)
+        self.pool34 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage4 = RSU4(64,16,64)
+        self.pool45 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage5 = RSU4F(64,16,64)
+        self.pool56 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage6 = RSU4F(64,16,64)
+
+        # decoder
+        self.stage5d = RSU4F(128,16,64)
+        self.stage4d = RSU4(128,16,64)
+        self.stage3d = RSU5(128,16,64)
+        self.stage2d = RSU6(128,16,64)
+        self.stage1d = RSU7(128,16,64)
+
+        self.side1 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side2 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side3 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side4 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side5 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side6 = nn.Conv2D(64,out_ch,3,padding=1)
+
+        self.outconv = nn.Conv2D(6,out_ch,1)
+
+    def forward(self,x):
+
+        hx = x
+
+        #stage 1
+        hx1 = self.stage1(hx)
+        hx = self.pool12(hx1)
+
+        #stage 2
+        hx2 = self.stage2(hx)
+        hx = self.pool23(hx2)
+
+        #stage 3
+        hx3 = self.stage3(hx)
+        hx = self.pool34(hx3)
+
+        #stage 4
+        hx4 = self.stage4(hx)
+        hx = self.pool45(hx4)
+
+        #stage 5
+        hx5 = self.stage5(hx)
+        hx = self.pool56(hx5)
+
+        #stage 6
+        hx6 = self.stage6(hx)
+        hx6up = _upsample_like(hx6,hx5)
+
+        #decoder
+        hx5d = self.stage5d(paddle.concat((hx6up,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.stage4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.stage3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.stage2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.stage1d(paddle.concat((hx2dup,hx1),1))
+
+
+        #side output
+        d1 = self.side1(hx1d)
+
+        d2 = self.side2(hx2d)
+        d2 = _upsample_like(d2,d1)
+
+        d3 = self.side3(hx3d)
+        d3 = _upsample_like(d3,d1)
+
+        d4 = self.side4(hx4d)
+        d4 = _upsample_like(d4,d1)
+
+        d5 = self.side5(hx5d)
+        d5 = _upsample_like(d5,d1)
+
+        d6 = self.side6(hx6)
+        d6 = _upsample_like(d6,d1)
+
+        d0 = self.outconv(paddle.concat((d1,d2,d3,d4,d5,d6),1))
+
+        return F.sigmoid(d0), F.sigmoid(d1), F.sigmoid(d2), F.sigmoid(d3), F.sigmoid(d4), F.sigmoid(d5), F.sigmoid(d6)

modules/image/semantic_segmentation/U2Netp/README.md

+## 概述
+* ![](http://latex.codecogs.com/svg.latex?U^2Net)的网络结构如下图，其类似于编码-解码(Encoder-Decoder)结构的 U-Net
+* 每个 stage 由新提出的 RSU模块(residual U-block) 组成. 例如，En_1 即为基于 RSU 构建的
+* ![](http://latex.codecogs.com/svg.latex?U^2Net^+)是一个小型化的![](http://latex.codecogs.com/svg.latex?U^2Net)
+
+![](https://ai-studio-static-online.cdn.bcebos.com/999d37b4ffdd49dc9e3315b7cec7b2c6918fdd57c8594ced9dded758a497913d)
+
+## 效果展示
+![](https://ai-studio-static-online.cdn.bcebos.com/4d77bc3a05cf48bba6f67b797978f4cdf10f38288b9645d59393dd85cef58eff)
+![](https://ai-studio-static-online.cdn.bcebos.com/d7839c7207024747b32e42e49f7881bd2554d8408ab44e669fb340b50d4e38de)
+
+## API
+```python
+def Segmentation(
+        images=None,
+        paths=None,
+        batch_size=1,
+        input_size=320,
+        output_dir='output',
+        visualization=False):
+```
+图像前景背景分割 API
+
+**参数**
+* images (list[np.ndarray]) : 输入图像数据列表（BGR）
+* paths (list[str]) : 输入图像路径列表
+* batch_size (int) : 数据批大小
+* input_size (int) : 输入图像大小
+* output_dir (str) : 可视化图像输出目录
+* visualization (bool) : 是否可视化
+
+**返回**
+* results (list[np.ndarray]): 输出图像数据列表
+
+**代码示例**
+```python
+import cv2
+import paddlehub as hub
+
+model = hub.Module(name='U2Netp')
+
+result = model.Segmentation(
+    images=[cv2.imread('/PATH/TO/IMAGE')],
+    paths=None,
+    batch_size=1,
+    input_size=320,
+    output_dir='output',
+    visualization=True)
+```
+
+## 查看代码
+https://github.com/NathanUA/U-2-Net
+
+## 依赖
+paddlepaddle >= 2.0.0rc0
+paddlehub >= 2.0.0b1

modules/image/semantic_segmentation/U2Netp/module.py

+import os
+import paddle
+import paddle.nn as nn
+import numpy as np
+from U2Netp.u2net import U2NETP
+from U2Netp.processor import Processor
+from paddlehub.module.module import moduleinfo
+
+@moduleinfo(
+    name="U2Netp", # 模型名称
+    type="CV", # 模型类型
+    author="jm12138", # 作者名称
+    author_email="jm12138@qq.com", # 作者邮箱
+    summary="U2Netp", # 模型介绍
+    version="1.0.0" # 版本号
+)
+class U2Netp(nn.Layer):
+    def __init__(self):
+        super(U2Netp, self).__init__()
+        self.model = U2NETP(3,1)
+        state_dict = paddle.load(os.path.join(self.directory, 'u2netp.pdparams'))
+        self.model.set_dict(state_dict)
+        self.model.eval()
+
+    def predict(self, input_datas):
+        outputs = []
+        for data in input_datas:
+            data = paddle.to_tensor(data, 'float32')
+            d1,d2,d3,d4,d5,d6,d7= self.model(data)
+            outputs.append(d1.numpy())
+
+        outputs = np.concatenate(outputs, 0)
+
+        return outputs
+
+    def Segmentation(
+        self,
+        images=None,
+        paths=None,
+        batch_size=1,
+        input_size=320,
+        output_dir='output',
+        visualization=False):
+
+        # 初始化数据处理器
+        processor = Processor(paths, images, batch_size, input_size)
+
+        # 模型预测
+        outputs = self.predict(processor.input_datas)
+
+        # 预测结果后处理
+        results = processor.postprocess(outputs, visualization=visualization, output_dir=output_dir)
+
+        return results

modules/image/semantic_segmentation/U2Netp/processor.py

+import os
+import cv2
+import numpy as np
+
+__all__ = ['Processor']
+
+class Processor():
+    def __init__(self, paths, images, batch_size, input_size):
+        # 图像列表
+        self.imgs = self.load_datas(paths, images)
+
+        # 输入数据
+        self.input_datas = self.preprocess(self.imgs, batch_size, input_size)
+
+    # 读取数据函数
+    def load_datas(self, paths, images):
+        datas = []
+
+        # 读取数据列表
+        if paths is not None:
+            for im_path in paths:
+                assert os.path.isfile(im_path), "The {} isn't a valid file path.".format(im_path)
+                im = cv2.imread(im_path)
+                datas.append(im)
+
+        if images is not None:
+            datas = images
+
+        # 返回数据列表
+        return datas
+
+    # 预处理
+    def preprocess(self, imgs, batch_size=1, input_size=320):
+        input_datas = []
+        for image in imgs:
+            # h, w = image.shape[:2]
+            # if h > w:
+            #     new_h, new_w = input_size*h/w,input_size
+            # else:
+            #     new_h, new_w = input_size,input_size*w/h
+            # image = cv2.resize(image, (int(new_w), int(new_h)))
+
+            image = cv2.resize(image, (input_size, input_size))
+            tmpImg = np.zeros((image.shape[0],image.shape[1],3))
+            image = image/np.max(image)
+
+            tmpImg[:,:,0] = (image[:,:,0]-0.485)/0.229
+            tmpImg[:,:,1] = (image[:,:,1]-0.456)/0.224
+            tmpImg[:,:,2] = (image[:,:,2]-0.406)/0.225
+
+            # convert BGR to RGB
+            tmpImg = tmpImg.transpose((2, 0, 1))
+            tmpImg = tmpImg[np.newaxis,:,:,:]
+            input_datas.append(tmpImg)
+
+        input_datas = np.concatenate(input_datas, 0)
+
+        datas_num = input_datas.shape[0]
+        split_num = datas_num//batch_size+1 if datas_num%batch_size!=0 else datas_num//batch_size
+
+        input_datas = np.array_split(input_datas, split_num)
+
+        return input_datas
+
+    def normPRED(self, d):
+        ma = np.max(d)
+        mi = np.min(d)
+
+        dn = (d-mi)/(ma-mi)
+
+        return dn
+
+    # 后处理
+    def postprocess(self, outputs, visualization=False, output_dir='output'):
+        results = []
+        if visualization and not os.path.exists(output_dir):
+            os.mkdir(output_dir)
+
+        for i, image in enumerate(self.imgs):
+            # normalization
+            pred = 1.0 - outputs[i,0,:,:]
+
+            pred = self.normPRED(pred)
+
+            # convert torch tensor to numpy array
+            pred = pred.squeeze()
+            pred = (pred*255).astype(np.uint8)
+            h, w = image.shape[:2]
+            pred = cv2.resize(pred, (w, h))
+
+            results.append(pred)
+
+            if visualization:
+                cv2.imwrite(os.path.join(output_dir, 'result_%d.png' % i), pred)
+
+        return results
\ No newline at end of file

modules/image/semantic_segmentation/U2Netp/u2net.py

+import paddle
+import paddle.nn as nn
+import paddle.nn.functional as F
+
+__all__ = ['U2NETP', 'U2NET']
+
+class REBNCONV(nn.Layer):
+    def __init__(self,in_ch=3,out_ch=3,dirate=1):
+        super(REBNCONV,self).__init__()
+
+        self.conv_s1 = nn.Conv2D(in_ch,out_ch,3,padding=1*dirate,dilation=1*dirate)
+        self.bn_s1 = nn.BatchNorm2D(out_ch)
+        self.relu_s1 = nn.ReLU()
+
+    def forward(self,x):
+
+        hx = x
+        xout = self.relu_s1(self.bn_s1(self.conv_s1(hx)))
+
+        return xout
+
+## upsample tensor 'src' to have the same spatial size with tensor 'tar'
+def _upsample_like(src,tar):
+
+    src = F.upsample(src,size=tar.shape[2:],mode='bilinear')
+
+    return src
+
+
+### RSU-7 ###
+class RSU7(nn.Layer):#UNet07DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU7,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool3 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool4 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv5 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool5 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv6 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv7 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv6d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv5d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv4d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+        hx = self.pool3(hx3)
+
+        hx4 = self.rebnconv4(hx)
+        hx = self.pool4(hx4)
+
+        hx5 = self.rebnconv5(hx)
+        hx = self.pool5(hx5)
+
+        hx6 = self.rebnconv6(hx)
+
+        hx7 = self.rebnconv7(hx6)
+
+        hx6d =  self.rebnconv6d(paddle.concat((hx7,hx6),1))
+        hx6dup = _upsample_like(hx6d,hx5)
+
+        hx5d =  self.rebnconv5d(paddle.concat((hx6dup,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.rebnconv4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-6 ###
+class RSU6(nn.Layer):#UNet06DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU6,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool3 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool4 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv5 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv6 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv5d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv4d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+        hx = self.pool3(hx3)
+
+        hx4 = self.rebnconv4(hx)
+        hx = self.pool4(hx4)
+
+        hx5 = self.rebnconv5(hx)
+
+        hx6 = self.rebnconv6(hx5)
+
+
+        hx5d =  self.rebnconv5d(paddle.concat((hx6,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.rebnconv4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-5 ###
+class RSU5(nn.Layer):#UNet05DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU5,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool3 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv5 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv4d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+        hx = self.pool3(hx3)
+
+        hx4 = self.rebnconv4(hx)
+
+        hx5 = self.rebnconv5(hx4)
+
+        hx4d = self.rebnconv4d(paddle.concat((hx5,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-4 ###
+class RSU4(nn.Layer):#UNet04DRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU4,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.pool1 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=1)
+        self.pool2 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=1)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=2)
+
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=1)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx = self.pool1(hx1)
+
+        hx2 = self.rebnconv2(hx)
+        hx = self.pool2(hx2)
+
+        hx3 = self.rebnconv3(hx)
+
+        hx4 = self.rebnconv4(hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.rebnconv2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.rebnconv1d(paddle.concat((hx2dup,hx1),1))
+
+        return hx1d + hxin
+
+### RSU-4F ###
+class RSU4F(nn.Layer):#UNet04FRES(nn.Layer):
+
+    def __init__(self, in_ch=3, mid_ch=12, out_ch=3):
+        super(RSU4F,self).__init__()
+
+        self.rebnconvin = REBNCONV(in_ch,out_ch,dirate=1)
+
+        self.rebnconv1 = REBNCONV(out_ch,mid_ch,dirate=1)
+        self.rebnconv2 = REBNCONV(mid_ch,mid_ch,dirate=2)
+        self.rebnconv3 = REBNCONV(mid_ch,mid_ch,dirate=4)
+
+        self.rebnconv4 = REBNCONV(mid_ch,mid_ch,dirate=8)
+
+        self.rebnconv3d = REBNCONV(mid_ch*2,mid_ch,dirate=4)
+        self.rebnconv2d = REBNCONV(mid_ch*2,mid_ch,dirate=2)
+        self.rebnconv1d = REBNCONV(mid_ch*2,out_ch,dirate=1)
+
+    def forward(self,x):
+
+        hx = x
+
+        hxin = self.rebnconvin(hx)
+
+        hx1 = self.rebnconv1(hxin)
+        hx2 = self.rebnconv2(hx1)
+        hx3 = self.rebnconv3(hx2)
+
+        hx4 = self.rebnconv4(hx3)
+
+        hx3d = self.rebnconv3d(paddle.concat((hx4,hx3),1))
+        hx2d = self.rebnconv2d(paddle.concat((hx3d,hx2),1))
+        hx1d = self.rebnconv1d(paddle.concat((hx2d,hx1),1))
+
+        return hx1d + hxin
+
+
+##### U^2-Net ####
+class U2NET(nn.Layer):
+
+    def __init__(self,in_ch=3,out_ch=1):
+        super(U2NET,self).__init__()
+
+        self.stage1 = RSU7(in_ch,32,64)
+        self.pool12 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage2 = RSU6(64,32,128)
+        self.pool23 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage3 = RSU5(128,64,256)
+        self.pool34 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage4 = RSU4(256,128,512)
+        self.pool45 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage5 = RSU4F(512,256,512)
+        self.pool56 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage6 = RSU4F(512,256,512)
+
+        # decoder
+        self.stage5d = RSU4F(1024,256,512)
+        self.stage4d = RSU4(1024,128,256)
+        self.stage3d = RSU5(512,64,128)
+        self.stage2d = RSU6(256,32,64)
+        self.stage1d = RSU7(128,16,64)
+
+        self.side1 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side2 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side3 = nn.Conv2D(128,out_ch,3,padding=1)
+        self.side4 = nn.Conv2D(256,out_ch,3,padding=1)
+        self.side5 = nn.Conv2D(512,out_ch,3,padding=1)
+        self.side6 = nn.Conv2D(512,out_ch,3,padding=1)
+
+        self.outconv = nn.Conv2D(6,out_ch,1)
+
+    def forward(self,x):
+
+        hx = x
+
+        #stage 1
+        hx1 = self.stage1(hx)
+        hx = self.pool12(hx1)
+
+        #stage 2
+        hx2 = self.stage2(hx)
+        hx = self.pool23(hx2)
+
+        #stage 3
+        hx3 = self.stage3(hx)
+        hx = self.pool34(hx3)
+
+        #stage 4
+        hx4 = self.stage4(hx)
+        hx = self.pool45(hx4)
+
+        #stage 5
+        hx5 = self.stage5(hx)
+        hx = self.pool56(hx5)
+
+        #stage 6
+        hx6 = self.stage6(hx)
+        hx6up = _upsample_like(hx6,hx5)
+
+        #-------------------- decoder --------------------
+        hx5d = self.stage5d(paddle.concat((hx6up,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.stage4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.stage3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.stage2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.stage1d(paddle.concat((hx2dup,hx1),1))
+
+
+        #side output
+        d1 = self.side1(hx1d)
+
+        d2 = self.side2(hx2d)
+        d2 = _upsample_like(d2,d1)
+
+        d3 = self.side3(hx3d)
+        d3 = _upsample_like(d3,d1)
+
+        d4 = self.side4(hx4d)
+        d4 = _upsample_like(d4,d1)
+
+        d5 = self.side5(hx5d)
+        d5 = _upsample_like(d5,d1)
+
+        d6 = self.side6(hx6)
+        d6 = _upsample_like(d6,d1)
+
+        d0 = self.outconv(paddle.concat((d1,d2,d3,d4,d5,d6),1))
+
+        return F.sigmoid(d0), F.sigmoid(d1), F.sigmoid(d2), F.sigmoid(d3), F.sigmoid(d4), F.sigmoid(d5), F.sigmoid(d6)
+
+### U^2-Net small ###
+class U2NETP(nn.Layer):
+
+    def __init__(self,in_ch=3,out_ch=1):
+        super(U2NETP,self).__init__()
+
+        self.stage1 = RSU7(in_ch,16,64)
+        self.pool12 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage2 = RSU6(64,16,64)
+        self.pool23 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage3 = RSU5(64,16,64)
+        self.pool34 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage4 = RSU4(64,16,64)
+        self.pool45 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage5 = RSU4F(64,16,64)
+        self.pool56 = nn.MaxPool2D(2,stride=2,ceil_mode=True)
+
+        self.stage6 = RSU4F(64,16,64)
+
+        # decoder
+        self.stage5d = RSU4F(128,16,64)
+        self.stage4d = RSU4(128,16,64)
+        self.stage3d = RSU5(128,16,64)
+        self.stage2d = RSU6(128,16,64)
+        self.stage1d = RSU7(128,16,64)
+
+        self.side1 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side2 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side3 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side4 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side5 = nn.Conv2D(64,out_ch,3,padding=1)
+        self.side6 = nn.Conv2D(64,out_ch,3,padding=1)
+
+        self.outconv = nn.Conv2D(6,out_ch,1)
+
+    def forward(self,x):
+
+        hx = x
+
+        #stage 1
+        hx1 = self.stage1(hx)
+        hx = self.pool12(hx1)
+
+        #stage 2
+        hx2 = self.stage2(hx)
+        hx = self.pool23(hx2)
+
+        #stage 3
+        hx3 = self.stage3(hx)
+        hx = self.pool34(hx3)
+
+        #stage 4
+        hx4 = self.stage4(hx)
+        hx = self.pool45(hx4)
+
+        #stage 5
+        hx5 = self.stage5(hx)
+        hx = self.pool56(hx5)
+
+        #stage 6
+        hx6 = self.stage6(hx)
+        hx6up = _upsample_like(hx6,hx5)
+
+        #decoder
+        hx5d = self.stage5d(paddle.concat((hx6up,hx5),1))
+        hx5dup = _upsample_like(hx5d,hx4)
+
+        hx4d = self.stage4d(paddle.concat((hx5dup,hx4),1))
+        hx4dup = _upsample_like(hx4d,hx3)
+
+        hx3d = self.stage3d(paddle.concat((hx4dup,hx3),1))
+        hx3dup = _upsample_like(hx3d,hx2)
+
+        hx2d = self.stage2d(paddle.concat((hx3dup,hx2),1))
+        hx2dup = _upsample_like(hx2d,hx1)
+
+        hx1d = self.stage1d(paddle.concat((hx2dup,hx1),1))
+
+
+        #side output
+        d1 = self.side1(hx1d)
+
+        d2 = self.side2(hx2d)
+        d2 = _upsample_like(d2,d1)
+
+        d3 = self.side3(hx3d)
+        d3 = _upsample_like(d3,d1)
+
+        d4 = self.side4(hx4d)
+        d4 = _upsample_like(d4,d1)
+
+        d5 = self.side5(hx5d)
+        d5 = _upsample_like(d5,d1)
+
+        d6 = self.side6(hx6)
+        d6 = _upsample_like(d6,d1)
+
+        d0 = self.outconv(paddle.concat((d1,d2,d3,d4,d5,d6),1))
+
+        return F.sigmoid(d0), F.sigmoid(d1), F.sigmoid(d2), F.sigmoid(d3), F.sigmoid(d4), F.sigmoid(d5), F.sigmoid(d6)
