Created by: GitLD

• 版本、环境信息：    1）PaddlePaddle 1.5.1    2）GPU V100    3）AI Studio线上环境    4）python 3.7    5）显存16G
• 复现信息： 代码baseline(https://aistudio.baidu.com/aistudio/datasetdetail/15365) 待读取两个模型(https://aistudio.baidu.com/aistudio/datasetdetail/15366) 修改如下： attack_example/attack_code/attack_fsgm.py

#coding=utf-8

from future import absolute_import from future import division from future import print_function

import argparse import functools import numpy as np import paddle.fluid as fluid

#加载自定义文件 import models from attack.attack_pp import FGSM, PGD from utils import init_prog, save_adv_image, process_img, tensor2img, calc_mse, add_arguments, print_arguments

#######parse parameters parser = argparse.ArgumentParser(description=doc) add_arg = functools.partial(add_arguments, argparser=parser)

add_arg('class_dim', int, 120, "Class number.") add_arg('shape', str, "3,224,224", "output image shape") add_arg('input', str, "./input_image/", "Input directory with images") add_arg('output', str, "./output_image/", "Output directory with images")

args = parser.parse_args() print_arguments(args)

######Init args image_shape = [int(m) for m in args.shape.split(",")] class_dim=args.class_dim input_dir = args.input output_dir = args.output model_name1="ResNeXt50_32x4d" model_name2='MobileNetV2_x2_0' pretrained_model1="./models_parameters/ResNeXt50_32x4d" pretrained_model2="./models_parameters/MobileNetV2" val_list = 'val_list.txt' use_gpu=True

######Attack graph adv_program=fluid.Program() #完成初始化 with fluid.program_guard(adv_program): input_layer = fluid.layers.data(name='image', shape=image_shape, dtype='float32') #设置为可以计算梯度 input_layer.stop_gradient=False

# model definition
model1 = models.__dict__[model_name1]()
model2 = models.__dict__[model_name2]()
out_logits1 = model1.net(input=input_layer, class_dim=class_dim)
out_logits2 = model2.net(input=input_layer, class_dim=class_dim)
out_logits = 0.5*(out_logits1+out_logits2)
out = fluid.layers.softmax(out_logits)

place = fluid.CUDAPlace(0) if use_gpu else fluid.CPUPlace()
exe = fluid.Executor(place)
exe.run(fluid.default_startup_program())

#记载模型参数
print("Load 1 Start!")
# fluid.io.load_persistables(exe, pretrained_model1)
fluid.io.load_params(exe, pretrained_model1, main_program=fluid.default_main_program())
# fluid.io.load_persistables(exe, pretrained_model2)
fluid.io.load_params(exe, pretrained_model2, main_program=fluid.default_main_program())
print("Load 2 Finish!")

#设置adv_program的BN层状态 init_prog(adv_program)

#创建测试用评估模式 eval_program = adv_program.clone(for_test=True)

#定义梯度 with fluid.program_guard(adv_program): label = fluid.layers.data(name="label", shape=[1] ,dtype='int64') loss = fluid.layers.cross_entropy(input=out, label=label) gradients = fluid.backward.gradients(targets=loss, inputs=[input_layer])[0]

######Inference def inference(img): fetch_list = [out.name]

result = exe.run(eval_program,
                 fetch_list=fetch_list,
                 feed={ 'image':img })
result = result[0][0]
pred_label = np.argmax(result)
pred_score = result[pred_label].copy()
return pred_label, pred_score

######FGSM attack #untarget attack def attack_nontarget_by_FGSM(img, src_label): pred_label = src_label

step = 8.0/256.0
eps = 32.0/256.0
while pred_label == src_label:
    #生成对抗样本
    adv=FGSM(adv_program=adv_program,eval_program=eval_program,gradients=gradients,o=img,
             input_layer=input_layer,output_layer=out,step_size=step,epsilon=eps,
             isTarget=False,target_label=0,use_gpu=use_gpu)

    pred_label, pred_score = inference(adv)
    step *= 2
    if step > eps:
        break

print("Test-score: {0}, class {1}".format(pred_score, pred_label))

adv_img=tensor2img(adv)
return adv_img

######PGD attack #untarget attack def attack_nontarget_by_PGD(img, src_label): pred_label = src_label

# Step = 2.0/256效果没有8/256好
step = 8.0/256.0
eps = 32.0/256.0
while pred_label == src_label:
    #生成对抗样本
    adv=PGD(adv_program=adv_program,eval_program=eval_program,gradients=gradients,o=img,
             input_layer=input_layer,output_layer=out,step_size=step,epsilon=eps,
             isTarget=False,target_label=0,use_gpu=use_gpu)

    pred_label, pred_score = inference(adv)
    step *= 2
    if step > eps:
        break

print("Test-score: {0}, class {1}".format(pred_score, pred_label))

adv_img=tensor2img(adv)
return adv_img

####### Main ####### def get_original_file(filepath): with open(filepath, 'r') as cfile: full_lines = [line.strip() for line in cfile] cfile.close() original_files = [] for line in full_lines: label, file_name = line.split() original_files.append([file_name, int(label)]) return original_files

def gen_adv(): mse = 0 original_files = get_original_file(input_dir + val_list)

for filename, label in original_files:
    img_path = input_dir + filename
    print("Image: {0} ".format(img_path))
    img=process_img(img_path)
    adv_img = attack_nontarget_by_FGSM(img, label)
    # adv_img = attack_nontarget_by_PGD(img, label)
    image_name, image_ext = filename.split('.')
    ##Save adversarial image(.png)
    save_adv_image(adv_img, output_dir+image_name+'.png')

    org_img = tensor2img(img)
    score = calc_mse(org_img, adv_img)
    mse += score
print("ADV {} files, AVG MSE: {} ".format(len(original_files), mse/len(original_files)))

def main(): gen_adv()

if name == 'main': main()

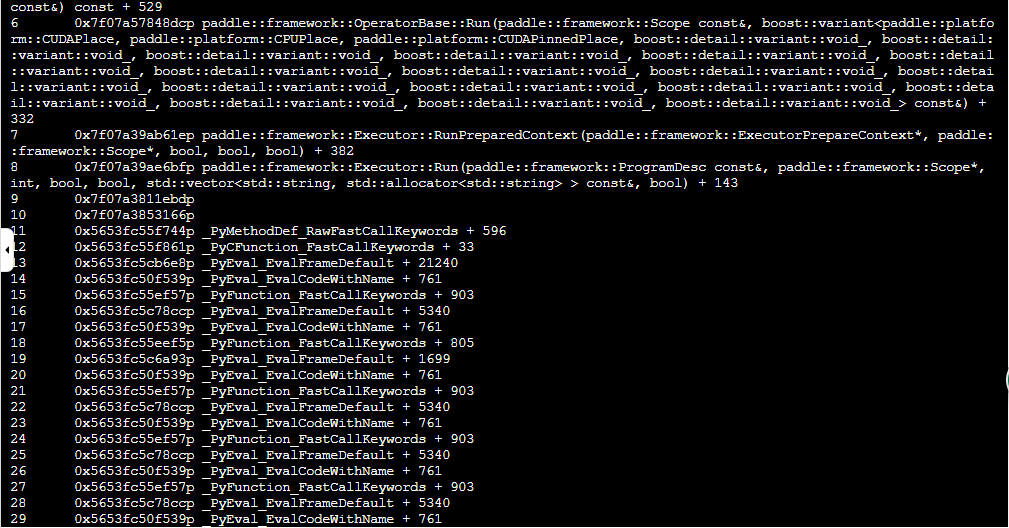

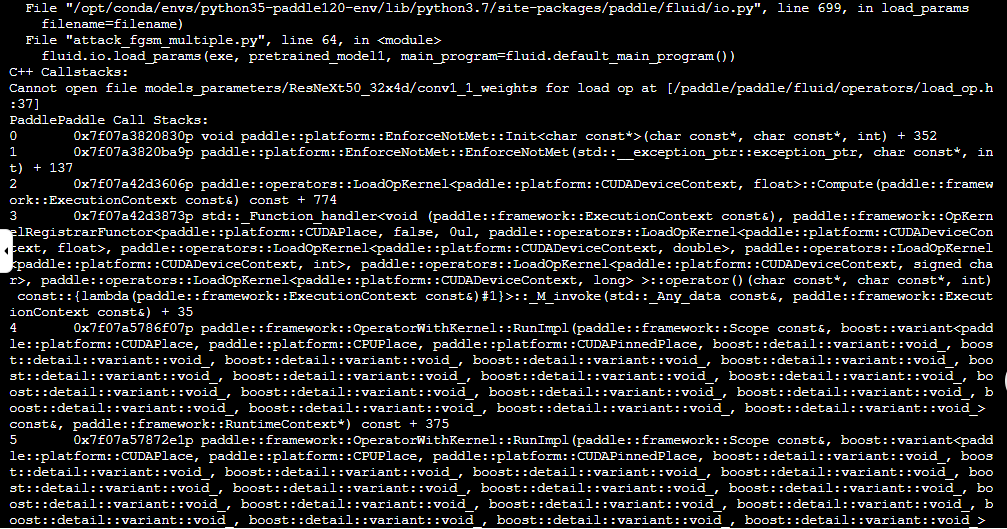

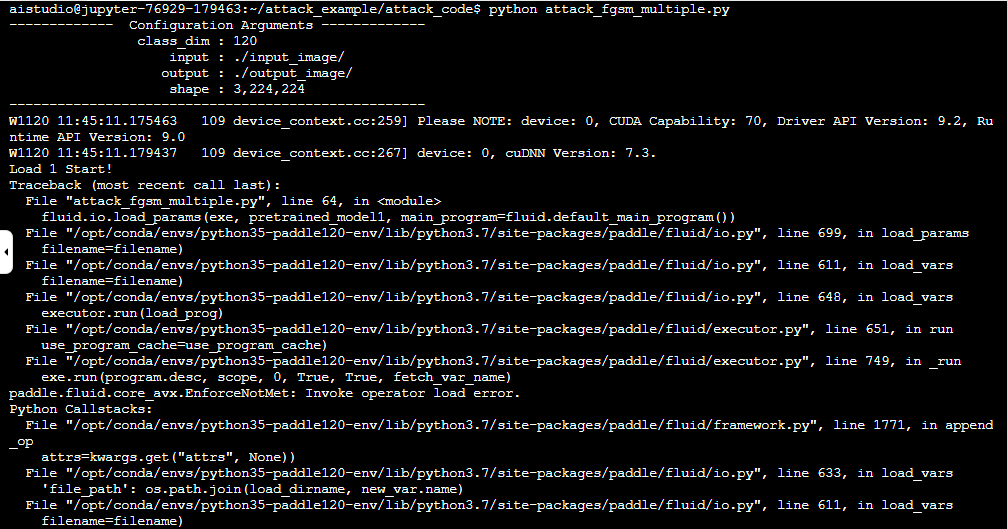

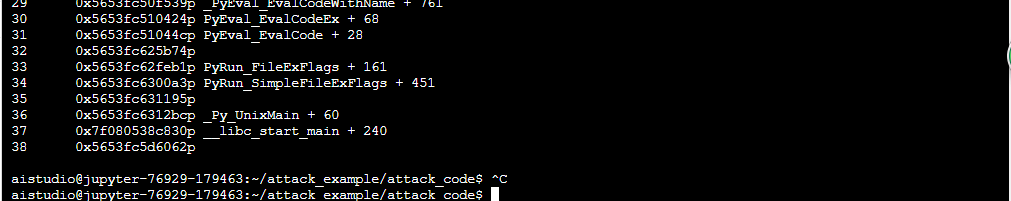

报错信息：

• 问题描述： Target : 目标读取入两个模型的权重并加权
