Update docs (18618)

Signed-off-by: Nester.zhou <ester.zhou@huawei.com>

en/application-dev/reference/arkui-ts/ts-basic-components-datapanel.md

@@ -24,7 +24,7 @@ Since API version 9, this API is supported in ArkTS widgets.

 | Name           | Type  | Mandatory | Description|
 | ----------------- | -------- | ----- | -------- |
-| values            | number[]   | Yes   | Data value list. A maximum of nine values are supported. If more than nine values are set, only the first nine ones are used. A value less than 0 evaluates to the value **0**. |
+| values            | number[]   | Yes   | Data value list. A maximum of nine values are supported. If more than nine values are set, only the first nine ones are used. A value less than 0 evaluates to the value **0**.|
 | max               | number     | No   |   - When set to a value greater than 0, this parameter indicates the maximum value in the **values** list.<br>- When set to a value equal to or smaller than 0, this parameter indicates the sum of values in the **values** list. The values are displayed in proportion.<br>Default value: **100**|
 | type<sup>8+</sup> | [DataPanelType](#datapaneltype) | No| Type of the data panel (dynamic modification is not supported).<br>Default value: **DataPanelType.Circle**|

@@ -46,20 +46,20 @@ In addition to the [universal attributes](ts-universal-attributes-size.md), the

 | Name         | Type| Mandatory| Description|
 | ------------- | ------- | ---- | -------- |
-| closeEffect | boolean | Yes| Whether to disable the rotation effect for the component.<br>Default value: **false**.|
+| closeEffect | boolean | Yes| Whether to disable the rotation and shadow effects for the component.<br>Default value: **false**<br>**NOTE**<br> This attribute enables or disables the shadow effect only when **trackShadow** is not set.<br> The shadow effect enabled through this attribute is in the default style.|
 | valueColors<sup>10+</sup>   | Array<[ResourceColor](ts-types.md#resourcecolor) \| [LinearGradient](#lineargradient10)> | Yes| Array of data segment colors. A value of the **ResourceColor** type indicates a solid color, and A value of the **LinearGradient** type indicates a color gradient.|
-| trackBackgroundColor<sup>10+</sup> | [ResourceColor](ts-types.md#resourcecolor) | Yes| Background color.|
-| strokeWidth<sup>10+</sup> | [Length](ts-types.md#Length) | Yes| Stroke width of the border.|
-| trackShadow<sup>10+</sup> | [DataPanelShadowOption](#datapanelshadowoption10) | Yes| Shadow style. If this attribute is not set, the shadow effect is disabled.|
+| trackBackgroundColor<sup>10+</sup> | [ResourceColor](ts-types.md#resourcecolor) | Yes| Background color.<br>Default value: **'#081824'**|
+| strokeWidth<sup>10+</sup> | [Length](ts-types.md#Length) | Yes| Stroke width of the border.<br>Default value: **24**<br>Unit: vp<br>**NOTE**<br>A value less than 0 evaluates to the default value.<br>This attribute does not take effect when the data panel type is **DataPanelType.Line**.|
+| trackShadow<sup>10+</sup> | [DataPanelShadowOption](#datapanelshadowoption10) | Yes| Shadow style.<br>**NOTE**<br>If this attribute is set to **null**, the shadow effect is disabled.|


 ## DataPanelShadowOption<sup>10+</sup>
 | Name         | Type| Mandatory| Description|
 | ------------- | ------- | ---- | -------- |
-| radius | number \| [Resource](ts-types.md#resource)| No| Shadow blur radius.<br>Default value: **5vp**|
-| colors | Array<[ResourceColor](ts-types.md#resourcecolor) \| [LinearGradient](#lineargradient10)> | No| Array of shadow colors for data segments.<br>Default value: same as the value of **valueColors**.|
-| offsetX | number \| [Resource](ts-types.md#resource)| No| Offset on the x-axis.<br>Default value: **5vp**|
-| offsetY | number \| [Resource](ts-types.md#resource)| No| Offset on the y-axis.<br>Default value: **5vp**|
+| radius | number \| [Resource](ts-types.md#resource)| No| Shadow blur radius.<br>Default value: **5**<br>Unit: vp<br>**NOTE**<br>A value less than or equal to 0 evaluates to the default value.|
+| colors | Array<[ResourceColor](ts-types.md#resourcecolor) \| [LinearGradient](#lineargradient10)> | No| Array of shadow colors for data segments.<br>Default value: same as the value of **valueColors**<br>**NOTE**<br>If the number of the set shadow colors is less than that of the data segments, the number of the displayed shadow colors is the same as the former.<br>If the number of the set shadow colors is greater than that of the data segments, the number of the displayed shadow colors is the same as the latter.|
+| offsetX | number \| [Resource](ts-types.md#resource)| No| Offset on the x-axis.<br>Default value: **5**<br>Unit: vp|
+| offsetY | number \| [Resource](ts-types.md#resource)| No| Offset on the y-axis.<br>Default value: **5**<br>Unit: vp|

 ## LinearGradient<sup>10+</sup>

@@ -79,12 +79,14 @@ Describes the gradient color stop.
 | Name         | Type| Mandatory| Description|
 | ------------- | ------- | ---- | -------- |
 | color | [ResourceColor](ts-types.md#resourcecolor) | Yes| Color value.|
-| offset | [Length](ts-types.md#Length) | Yes| Gradient color stop (proportion value between 0 and 1).|
+| offset | [Length](ts-types.md#Length) | Yes| Gradient color stop (proportion value between 0 and 1). A value less than 0 evaluates to the value **0**. A value greater than 1 evaluates to the value **1**.|



 ## Example

+### Example 1
+
 ```ts
 // xxx.ets
 @Entry
@@ -133,3 +135,48 @@ struct DataPanelExample {
 ```

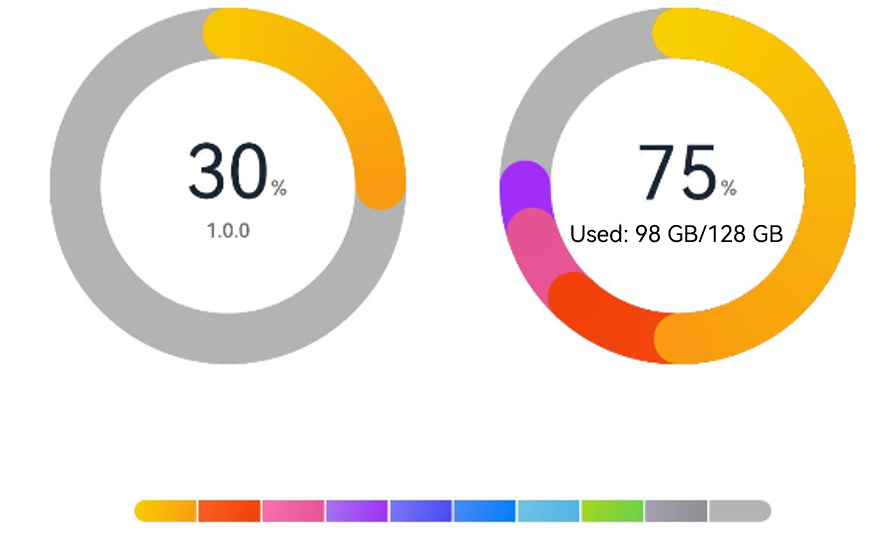

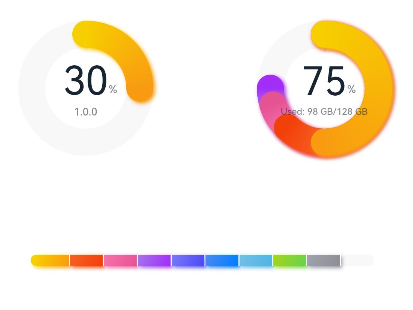

 ![dataPanel](figures/dataPanel.PNG)
+
+### Example 2
+
+```ts
+// xxx.ets
+@Entry
+@Component
+struct LinearGradientDataPanelExample {
+  public values1: number[] = [20, 20, 20, 20]
+  public color1: LinearGradient = new LinearGradient([{ color: "#65EEC9A3", offset: 0 }, { color: "#FFEF629F", offset: 1 }])
+  public color2: LinearGradient = new LinearGradient([{ color: "#FF67F9D4", offset: 0 }, { color: "#FFFF9554", offset: 1 }])
+  public colorShadow1: LinearGradient = new LinearGradient([{ color: "#65EEC9A3", offset: 0 }, { color: "#65EF629F", offset: 1 }])
+  public colorShadow2: LinearGradient = new LinearGradient([{ color: "#65e26709", offset: 0 }, { color: "#65efbd08", offset: 1 }])
+  public colorShadow3: LinearGradient = new LinearGradient([{ color: "#6572B513", offset: 0 }, { color: "#6508efa6", offset: 1 }])
+  public colorShadow4: LinearGradient = new LinearGradient([{ color: "#65ed08f5", offset: 0 }, { color: "#65ef0849", offset: 1 }])
+  @State color3: string = '#00FF00'
+  @State color4: string = '#20FF0000'
+  @State bgColor: string = '#08182431'
+  @State offsetX: number = 15
+  @State offsetY: number = 15
+  @State radius: number = 5
+  @State colorArray: Array<LinearGradient | ResourceColor> = [this.color1, this.color2, this.color3, this.color4]
+  @State shadowColorArray: Array<LinearGradient | ResourceColor> = [this.colorShadow1, this.colorShadow2, this.colorShadow3, this.colorShadow4]
+
+  build() {
+    Column({ space: 5 }) {
+      Text('LinearGradient').fontSize(9).fontColor(0xCCCCCC).textAlign(TextAlign.Start).width('100%').margin({ top: 20, left: 20})
+      DataPanel({ values: this.values1, max: 100, type: DataPanelType.Circle })
+        .width(300)
+        .height(300)
+        .valueColors(this.colorArray)
+        .trackShadow({
+          radius: this.radius,
+          colors: this.shadowColorArray,
+          offsetX: this.offsetX,
+          offsetY: this.offsetY
+        })
+        .strokeWidth(30)
+        .trackBackgroundColor(this.bgColor)
+    }.width('100%').margin({ top: 5 })
+  }
+}
+```
+

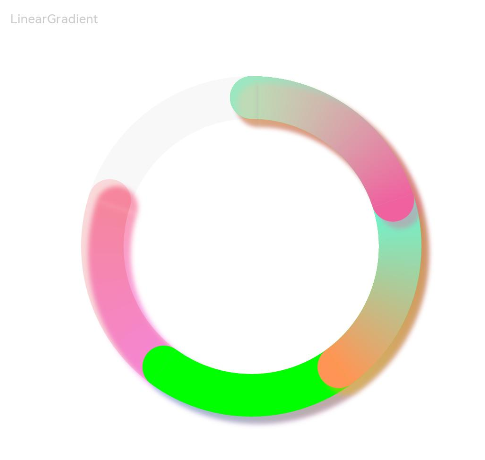

+![LinearGradientDataPanel](figures/LinearGradientDataPanel.PNG)
