# Motion Path Animation
>  **NOTE：**
> This animation is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.
The attributes described in this topic are used to set the motion path of the component in a translation animation.
## Attributes
| Name | Type | Default Value | Description |
| -------- | -------- | -------- | -------- |
| motionPath | {
path: string,
from?: number,
to?: number,
rotatable?: boolean
}
>  **NOTE：**
> In a path, **start** and **end** can be used to replace the start point and end point. Example:
>
> 'Mstart.x start.y L50 50 Lend.x end.y Z' | {
"",
0.0,
1.0,
false
} | Motion path of the component. The input parameters are described as follows:
- **path**: motion path of the translation animation. The **svg** path string is used.
- **from**: start point of the motion path. The default value is **0.0**.
- **to**: end point of the motion path. The default value is **1.0**.
- **rotatable**: whether to rotate along the path. |

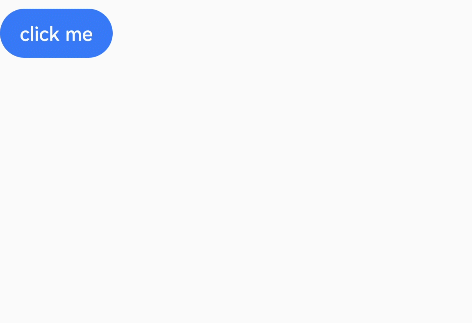

## Example
```
@Entry
@Component
struct MotionPathExample {
@State offsetX: number = 0
@State offsetY: number = 0
@State toggle: boolean = true
build() {
Column() {
Button('click me')
.motionPath({ path: 'Mstart.x start.y L300 200 L300 500 Lend.x end.y', from: 0.0, to: 1.0, rotatable: true })
.onClick((event: ClickEvent) => {
animateTo({ duration: 4000, curve: Curve.Linear }, () => {
this.toggle = !this.toggle;
})
}).backgroundColor(0x317aff)
}.width('100%').height('100%').alignItems(this.toggle ? HorizontalAlign.Start : HorizontalAlign.Center)
}
}
```
