# @ohos.matrix4 (Matrix Transformation) The **matrix4** module provides APIs for matrix transformation. You can use these APIs to translate, rotate, and scale images. > **NOTE** > > The initial APIs of this module are supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version. ## Modules to Import ```ts import matrix4 from '@ohos.matrix4' ``` ## matrix4.init init(array: Array<number>): Matrix4Transit Matrix constructor, which is used to create a 4 x 4 matrix by using the input parameter. Column-major order is used. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Parameters** | Name| Type | Mandatory| Description | | ------ | ------------------- | ---- | ------------------------------------------------------------ | | array | Array<number> | Yes | A number array whose length is 16 (4 x 4). For details, see **array** parameters.
Default value:
[1, 0, 0, 0,
0, 1, 0, 0,
0, 0, 1, 0,
0, 0, 0, 1] | **Return value** | Type | Description | | -------------- | ---------------------------- | | Matrix4Transit | 4 x 4 matrix object created based on the input parameter.| **array** parameters | Name | Type | Mandatory | Description | | ---- | ------ | ---- | -------------------- | | m00 | number | Yes | Scaling value of the x-axis. The default value is **1** for the identity matrix. | | m01 | number | Yes | The second value, which is affected by the rotation of the x, y, and z axes. | | m02 | number | Yes | The third value, which is affected by the rotation of the x, y, and z axes. | | m03 | number | Yes | The fourth value, which is meaningless. | | m10 | number | Yes | The fifth value, which is affected by the rotation of the x, y, and z axes. | | m11 | number | Yes | Scaling value of the y-axis. The default value is **1** for the identity matrix. | | m12 | number | Yes | The seventh value, which is affected by the rotation of the x, y, and z axes. | | m13 | number | Yes | The eighth value, which is meaningless. | | m20 | number | Yes | The ninth value, which is affected by the rotation of the x, y, and z axes. | | m21 | number | Yes | The tenth value, which is affected by the rotation of the x, y, and z axes. | | m22 | number | Yes | Scaling value of the z-axis. The default value is **1** for the identity matrix. | | m23 | number | Yes | Meaningless value. | | m30 | number | Yes | Translation value of the x-axis, in px. The default value is **0** for the identity matrix.| | m31 | number | Yes | Translation value of the y-axis, in px. The default value is **0** for the identity matrix.| | m32 | number | Yes | Translation value of the z-axis, in px. The default value is **0** for the identity matrix.| | m33 | number | Yes | Valid in homogeneous coordinates, presenting the perspective projection effect. | **Example** ```ts import matrix4 from '@ohos.matrix4' // Create a 4 x 4 matrix. let matrix = matrix4.init([1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0]) @Entry @Component struct Tests { build() { Column() { Image($r("app.media.zh")) .width("40%") .height(100) .transform(matrix) } } } ``` ## matrix4.identity identity(): Matrix4Transit Constructs an identity matrix. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Return value** | Type | Description | | -------------- | -------------- | | Matrix4Transit | Identity matrix object.| **Example** ```ts // The effect of matrix 1 is the same as that of matrix 2. import matrix4 from '@ohos.matrix4' let matrix1 = matrix4.init([1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0]) let matrix2 = matrix4.identity() @Entry @Component struct Tests { build() { Column() { Image($r("app.media.zh")) .width("40%") .height(100) .transform(matrix1) Image($r("app.media.zh")) .width("40%") .height(100) .margin({ top: 150 }) .transform(matrix2) } } } ``` ## matrix4.copy copy(): Matrix4Transit Copies this matrix object. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Return value** | Type | Description | | -------------- | -------------------- | | Matrix4Transit | Copy object of the current matrix.| **Example** ```ts // xxx.ets import matrix4 from '@ohos.matrix4' @Entry @Component struct Test { private matrix1 = matrix4.identity().translate({ x: 100 }) private matrix2 = this.matrix1.copy().scale({ x: 2 }) build() { Column() { Image($r("app.media.bg1")) .width("40%") .height(100) .transform(this.matrix1) Image($r("app.media.bg2")) .width("40%") .height(100) .margin({ top: 50 }) .transform(this.matrix2) } } } ``` ![en-us_image_0000001219744181](figures/en-us_image_0000001219744181.png) ## Matrix4 ### combine combine(matrix: Matrix4): Matrix4Transit Combines the effects of two matrices to generate a new matrix object. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Parameters** | Name| Type | Mandatory| Description | | ------ | ------- | ---- | ------------------ | | matrix | Matrix4 | Yes | Matrix object to be combined.| **Return value** | Type | Description | | -------------- | ------------------ | | Matrix4Transit | Object after matrix combination.| **Example** ```ts // xxx.ets import matrix4 from '@ohos.matrix4' @Entry @Component struct Test { private matrix1 = matrix4.identity().translate({ x: 200 }).copy() private matrix2 = matrix4.identity().scale({ x: 2 }).copy() build() { Column() { // Before matrix transformation Image($r("app.media.icon")) .width("40%") .height(100) .margin({ top: 50 }) // Translate the x-axis by 200px, and then scale it twice to obtain the resultant matrix. Image($r("app.media.icon")) .transform(this.matrix1.combine(this.matrix2)) .width("40%") .height(100) .margin({ top: 50 }) } } } ``` ![en-us_image_0000001118642902](figures/en-us_image_0000001118642902.png) ### invert invert(): Matrix4Transit Inverts this matrix object. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Return value** | Type | Description | | -------------- | ---------------------- | | Matrix4Transit | Inverse matrix object of the current matrix.| **Example** ```ts import matrix4 from '@ohos.matrix4' // The effect of matrix 1 (width scaled up by 2x) is opposite to that of matrix 2 (width scaled down by 2x). let matrix1 = matrix4.identity().scale({ x: 2 }) let matrix2 = matrix1.invert() @Entry @Component struct Tests { build() { Column() { Image($r("app.media.zh")) .width(200) .height(100) .transform(matrix1) .margin({ top: 100 }) Image($r("app.media.zh")) .width(200) .height(100) .margin({ top: 150 }) .transform(matrix2) } } } ``` ### translate translate({x?: number, y?: number, z?: number}): Matrix4Transit Translates this matrix object along the x, y, and z axes. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Parameters** | Name| Type | Mandatory| Description | | ------ | ------ | ---- | ------------------------------------- | | x | number | No | Translation distance along the x-axis, in px.
Default value: **0**| | y | number | No | Translation distance along the y-axis, in px.
Default value: **0**| | z | number | No | Translation distance along the z-axis, in px.

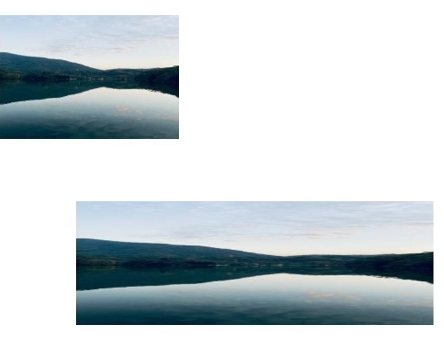

Default value: **0**| **Return value** | Type | Description | | -------------- | ---------------------------- | | Matrix4Transit | Matrix object after the translation effect is added.| **Example** ```ts // xxx.ets import matrix4 from '@ohos.matrix4' @Entry @Component struct Test { private matrix1 = matrix4.identity().translate({ x: 100, y: 200, z: 30 }) build() { Column() { Image($r("app.media.bg1")).transform(this.matrix1) .width("40%") .height(100) } } } ``` ![en-us_image_0000001219662645](figures/en-us_image_0000001219662645.png) ### scale scale({x?: number, y?: number, z?: number, centerX?: number, centerY?: number}): Matrix4Transit Scales this matrix object along the x, y, and z axes. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Parameters** | Name | Type | Mandatory| Description | | ------- | ------ | ---- | --------------------------------- | | x | number | No | Scaling multiple along the x-axis.
Default value: **1** | | y | number | No | Scaling multiple along the y-axis.
Default value: **1** | | z | number | No | Scaling multiple along the z-axis.
Default value: **1** | | centerX | number | No | X coordinate of the center point.
Default value: **0**| | centerY | number | No | Y coordinate of the center point.
Default value: **0**| **Return value** | Type | Description | | -------------- | ---------------------------- | | Matrix4Transit | Matrix object after the scaling effect is added.| **Example** ```ts // xxx.ets import matrix4 from '@ohos.matrix4' @Entry @Component struct Test { private matrix1 = matrix4.identity().scale({ x:2, y:3, z:4, centerX:50, centerY:50 }) build() { Column() { Image($r("app.media.bg1")).transform(this.matrix1) .width("40%") .height(100) } } } ``` ![en-us_image_0000001219864131](figures/en-us_image_0000001219864131.png) ### rotate rotate({x?: number, y?: number, z?: number, angle?: number, centerX?: Length, centerY?: Length}): Matrix4Transit Rotates this matrix object along the x, y, and z axes. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Parameters** | Name | Type | Mandatory| Description | | ------- | ------ | ---- | --------------------------------- | | x | number | No | X coordinate of the rotation axis vector.
Default value: **1** | | y | number | No | Y coordinate of the rotation axis vector.
Default value: **1** | | z | number | No | Z coordinate of the rotation axis vector.
Default value: **1** | | angle | number | No | Rotation angle.
Default value: **0** | | centerX | number | No | X coordinate of the center point.
Default value: **0**| | centerY | number | No | Y coordinate of the center point.
Default value: **0**| **Return value** | Type | Description | | -------------- | ---------------------------- | | Matrix4Transit | Matrix object after the rotation effect is added.| **Example** ```ts // xxx.ets import matrix4 from '@ohos.matrix4' @Entry @Component struct Test { private matrix1 = matrix4.identity().rotate({ x: 1, y: 1, z: 2, angle: 30 }) build() { Column() { Image($r("app.media.bg1")).transform(this.matrix1) .width("40%") .height(100) }.width("100%").margin({ top: 50 }) } } ``` ![en-us_image_0000001174422898](figures/en-us_image_0000001174422898.png) ### transformPoint transformPoint(point: Point): Point Applies the current transformation effect to a coordinate point. **System capability**: SystemCapability.ArkUI.ArkUI.Full **Parameters** | Name| Type | Mandatory| Description | | ------ | ----- | ---- | ------------------ | | point | Point | Yes | Point to be transformed.| **Return value** | Type | Description | | ----- | ---------------- | | Point | Point object after matrix transformation| **Example** ```ts // xxx.ets import matrix4 from '@ohos.matrix4' @Entry @Component struct Test { private originPoint: [number, number] = [50, 50] private matrix_1 = matrix4.identity().translate({ x: 150, y: -50 }) private transformPoint = this.matrix_1.transformPoint(this.originPoint) private matrix_2 = matrix4.identity().translate({ x: this.transformPoint[0], y: this.transformPoint[1] }) build() { Column() { Text(`Coordinates before matrix transformation: [${this.originPoint}]`) .fontSize(16) Image($r("app.media.image")) .width('600px') .height('300px') .margin({ top: 50 }) Text(`Coordinates after matrix transformation: [${this.transformPoint}]`) .fontSize(16) .margin({ top: 100 }) Image($r("app.media.image")) .width('600px') .height('300px') .margin({ top: 50 }) .transform(this.matrix_2) }.width("100%").padding(50) } } ``` ![en-us_image_0000001219864133](figures/en-us_image_0000001219864133.PNG)
