# Path
>![](../../public_sys-resources/icon-note.gif) **NOTE:**
>This component is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.
The **** component is used to draw a path.
## Required Permissions
None
## Child Components
None
## Attributes
Name
Type
Default Value
Mandatory
Description
width
Length
0
No
Width of the rectangle where the path is located.
height
Length
0
No
Height of the rectangle where the path is located.
commands
string
''
Yes
Command string for drawing the path.
The supported commands are as follows:
- M = moveto
- L = lineto
- H = horizontal lineto
- V = vertical lineto
- C = curveto
- S = smooth curveto
- Q = quadratic Belzier curve
- T = smooth quadratic Belzier curveto
- A = elliptical Arc
- Z = closepath
For example, the command **M0 20 L50 50 L50 100 Z** defines a path that starts from \(0, 20\), reaches \(50, 50\) and then \(50, 100\), and ends at \(0, 20\).

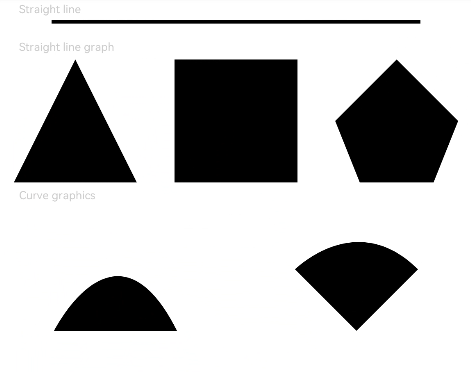

## Example
```
@Entry
@Component
struct PathExample {
build() {
Column({ space: 5 }) {
Text('Straight line').fontSize(9).fontColor(0xCCCCCC).width('90%')
Path().width(300).height(10).commands('M0 0 L900 0').stroke(Color.Black).strokeWidth(3)
Text('Straight line graph').fontSize(9).fontColor(0xCCCCCC).width('90%')
Flex({ justifyContent: FlexAlign.SpaceAround }) {
// Run MoveTo(150, 0), LineTo(300, 300), LineTo(0, 300), and ClosePath() in sequence.
Path().width(100).height(100).commands('M150 0 L300 300 L0 300 Z')
// Run MoveTo(0, 0), HorizontalLineto(300), VerticalLineto(300), HorizontalLineto(0), and ClosePath() in sequence.
Path().width(100).height(100).commands('M0 0 H300 V300 H0 Z')
// Run MoveTo(150, 0), LineTo(0, 150), LineTo(60, 300), LineTo(240, 300), LineTo(300, 150), and ClosePath() in sequence.
Path().width(100).height(100).commands('M150 0 L0 150 L60 300 L240 300 L300 150 Z')
}.width('100%')
Text('Curve graphics').fontSize(9).fontColor(0xCCCCCC).width('90%')
Flex({ justifyContent: FlexAlign.SpaceAround }) {
/ / Run MoveTo(0, 300), draw a curve between (150, 0) and (300, 300), and then run ClosePath().
Path().width(100).height(100).commands("M0 300 S150 0 300 300 Z")
/ / Run MoveTo(0, 150), draw a curve among (0, 150), (150, 0), and (300, 150), and then run ClosePath().
Path().width(100).height(100).commands('M0 150 C0 150 150 0 300 150 L150 300 Z')
}
}.width('100%').margin({ top: 5 })
}
}
```
![](figures/path.png)
