# Shape
绘制组件的父组件,父组件中会描述所有绘制组件均支持的通用属性。
1、绘制组件使用Shape作为父组件,实现类似SVG的效果。
2、绘制组件单独使用,用于在页面上绘制指定的图形。
> **说明:**
>
> 该组件从API Version 7开始支持。后续版本如有新增内容,则采用上角标单独标记该内容的起始版本。
## 子组件
可以包含子组件。
## 接口
Shape(value?: PixelMap)
**参数:**
| 参数名 | 参数类型 | 必填 | 默认值 | 参数描述 |
| -------- | -------- | -------- | -------- | -------- |
| value | PixelMap | 否 | - | 绘制目标,可将图形绘制在指定的PixelMap对象中,若未设置,则在当前绘制目标中进行绘制。 |
## 属性
除支持[通用属性](ts-universal-attributes-size.md)外,还支持以下属性:
| 参数名称 | 参数类型 | 默认值 | 必填 | 参数描述 |
| -------- | -------- | -------- | -------- | -------- |
| viewPort | {
x?: number \| string,
y?: number \| string,
width?: number \| string,
height?: number \| string
} | { x:0, y:0, width:0, height:0 } | 否 | 形状的视口。 |
| fill | [ResourceColor](ts-types.md) | Color.Black | 否 | 设置填充区域颜色。 |
| fillOpacity | number \| string \| [Resource](ts-types.md#resource类型) | 1 | 否 | 设置填充区域透明度。 |
| stroke | [ResourceColor](ts-types.md) | Color.Black | 否 | 设置线条颜色。 |
| strokeDashArray | Array<Length> | [] | 否 | 设置线条间隙。 |
| strokeDashOffset | number \| string | 0 | 否 | 线条绘制起点的偏移量。 |
| strokeLineCap | [LineCapStyle](ts-appendix-enums.md#linecapstyle) | LineCapStyle.Butt | 否 | 设置线条端点绘制样式。 |
| strokeLineJoin | [LineJoinStyle](ts-appendix-enums.md#linejoinstyle) | LineJoinStyle.Miter | 否 | 设置线条拐角绘制样式。 |
| strokeMiterLimit | number \| string | 4 | 否 | 设置锐角绘制成斜角的极限值。 |
| strokeOpacity | number \| string \| [Resource](ts-types.md#resource类型) | 1 | 否 | 设置线条透明度。 |
| strokeWidth | number \| string | 1 | 否 | 设置线条宽度。 |
| antiAlias | boolean | true | 否 | 是否开启抗锯齿效果。 |
| mesh8+ | Array<number>,number,number | [],0,0 | 否 | 设置mesh效果。第一个参数为长度(column + 1)* (row + 1)* 2的数组,它记录了扭曲后的位图各个顶点位置,第二个参数为mesh矩阵列数column,第三个参数为mesh矩阵行数row。 |

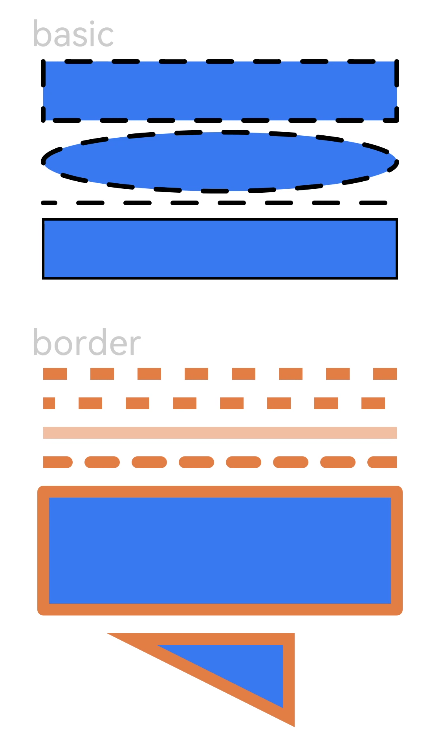

## 示例
```ts
// xxx.ets
@Entry
@Component
struct ShapeExample {
build() {
Column({ space: 5 }) {
Text('basic').fontSize(30).fontColor(0xCCCCCC).width(320)
// 在Shape的(-2, -2)点绘制一个 300 * 50 带边框的矩形,颜色0x317Af7,边框颜色黑色,边框宽度4,边框间隙20,向左偏移10,尖端样式圆角,拐角样式圆角,抗锯齿(默认开启)
// 在Shape的(-2, 58)点绘制一个 300 * 50 带边框的椭圆,颜色0x317Af7,边框颜色黑色,边框宽度4,边框间隙20,向左偏移10,尖端样式圆角,拐角样式圆角,抗锯齿(默认开启)
// 在Shape的(-2, 118)点绘制一个 300 * 10 线段,颜色0x317Af7,边框颜色黑色,宽度4,间隙20,向左偏移10,尖端样式圆角,拐角样式圆角,抗锯齿(默认开启)
Shape() {
Rect().width(300).height(50)
Ellipse().width(300).height(50).offset({ x: 0, y: 60 })
Path().width(300).height(10).commands('M0 0 L900 0').offset({ x: 0, y: 120 })
}
.viewPort({ x: -2, y: -2, width: 304, height: 130 })
.fill(0x317Af7).stroke(Color.Black).strokeWidth(4)
.strokeDashArray([20]).strokeDashOffset(10).strokeLineCap(LineCapStyle.Round)
.strokeLineJoin(LineJoinStyle.Round).antiAlias(true)
// 在Shape的(-1, -1)点绘制一个 300 * 50 带边框的矩形,颜色0x317Af7,边框颜色黑色,边框宽度2
Shape() {
Rect().width(300).height(50)
}.viewPort({ x: -1, y: -1, width: 302, height: 52 }).fill(0x317Af7).stroke(Color.Black).strokeWidth(2)
Text('border').fontSize(30).fontColor(0xCCCCCC).width(320).margin({top:30})
// 在Shape的(0, -5)点绘制一个 300 * 10 直线,颜色0xEE8443,边框宽度10,边框间隙20
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}.viewPort({ x: 0, y: -5, width: 300, height: 20 }).stroke(0xEE8443).strokeWidth(10).strokeDashArray([20])
// 在Shape的(0, -5)点绘制一个 300 * 10 直线,颜色0xEE8443,边框宽度10,边框间隙20,向左偏移10
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}
.viewPort({ x: 0, y: -5, width: 300, height: 20 })
.stroke(0xEE8443).strokeWidth(10).strokeDashArray([20]).strokeDashOffset(10)
// 在Shape的(0, -5)点绘制一个 300 * 10 直线,颜色0xEE8443,边框宽度10,透明度0.5
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}.viewPort({ x: 0, y: -5, width: 300, height: 20 }).stroke(0xEE8443).strokeWidth(10).strokeOpacity(0.5)
// 在Shape的(0, -5)点绘制一个 300 * 10 直线,颜色0xEE8443,边框宽度10,边框间隙20,向左偏移10,尖端样式圆角
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}
.viewPort({ x: 0, y: -5, width: 300, height: 20 })
.stroke(0xEE8443).strokeWidth(10).strokeDashArray([20]).strokeLineCap(LineCapStyle.Round)
// 在Shape的(-5, -5)点绘制一个 300 * 50 带边框的矩形,颜色0x317Af7,边框宽度10,边框颜色0xEE8443,拐角样式圆角
Shape() {
Rect().width(300).height(100)
}
.viewPort({ x: -5, y: -5, width: 310, height: 120 })
.fill(0x317Af7).stroke(0xEE8443).strokeWidth(10).strokeLineJoin(LineJoinStyle.Round)
Shape() {
Path().width(300).height(60).commands('M0 0 L400 0 L400 200 Z')
}
.viewPort({ x: -80, y: -5, width: 310, height: 100 })
.fill(0x317Af7).stroke(0xEE8443).strokeWidth(10)
.strokeLineJoin(LineJoinStyle.Miter).strokeMiterLimit(5)
}.width('100%').margin({ top: 15 })
}
}
```
![zh-cn_image_0000001184628104](figures/zh-cn_image_0000001184628104.png)
