# CanvasRenderingContext2D Use **RenderingContext** to draw rectangles, text, images, and other objects on a canvas. > **NOTE** > > The APIs of this module are supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version. ## APIs CanvasRenderingContext2D(setting: RenderingContextSetting) **Parameters** | Name | Type | Mandatory | Description | | ------- | ---------------------------------------- | ---- | ---------------------------------------- | | setting | [RenderingContextSettings](#renderingcontextsettings) | Yes | See [RenderingContextSettings](#renderingcontextsettings).| ### RenderingContextSettings RenderingContextSettings(antialias?: boolean) Configures the settings of a **CanvasRenderingContext2D** object, including whether to enable antialiasing. **Parameters** | Name | Type | Mandatory | Description | | --------- | ------- | ---- | ----------------------------- | | antialias | boolean | No | Whether to enable antialiasing.
Default value: **false** | ## Attributes | Name | Type | Description | | ----------------------------------------------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | | [fillStyle](#fillstyle) | string \| [CanvasGradient](ts-components-canvas-canvasgradient.md) \| [CanvasPattern](#canvaspattern) | Style to fill an area.
- When the type is string, this attribute indicates the color of the fill area.
- When the type is **CanvasGradient**, this attribute indicates a gradient object, which is created using the **[createLinearGradient](#createlineargradient)** API.
- When the type is **CanvasPattern**, this attribute indicates a pattern, which is created using the **[createPattern](#createpattern)** API.| | [lineWidth](#linewidth) | number | Line width. | | [strokeStyle](#strokestyle) | string \| [CanvasGradient](ts-components-canvas-canvasgradient.md) \| [CanvasPattern](#canvaspattern) | Stroke style.
- When the type is string, this attribute indicates the stroke color.
- When the type is **CanvasGradient**, this attribute indicates a gradient object, which is created using the **[createLinearGradient](#createlineargradient)** API.
- When the type is **CanvasPattern**, this attribute indicates a pattern, which is created using the **[createPattern](#createpattern)** API.| | [lineCap](#linecap) | CanvasLineCap | Style of the line endpoints. The options are as follows:
- **'butt'**: The endpoints of the line are squared off.
- **'round'**: The endpoints of the line are rounded.
- **'square'**: The endpoints of the line are squared off by adding a box with an equal width and half the height of the line's thickness.
Default value: **'butt'**| | [lineJoin](#linejoin) | CanvasLineJoin | Style of the shape used to join line segments. The options are as follows:
- **'round'**: The shape used to join line segments is a sector, whose radius at the rounded corner is equal to the line width.
- **'bevel'**: The shape used to join line segments is a triangle. The rectangular corner of each line is independent.
- **'miter'**: The shape used to join line segments has a mitered corner by extending the outside edges of the lines until they meet. You can view the effect of this attribute in **miterLimit**.
Default value: **'miter'**| | [miterLimit](#miterlimit) | number | Maximum miter length. The miter length is the distance between the inner corner and the outer corner where two lines meet.
Default value: **10**| | [font](#font) | string | Font style.
Syntax: ctx.font='font-size font-family'
- (Optional) **font-size**: font size and row height. The unit can only be pixels.
- (Optional) **font-family**: font family.
Syntax: ctx.font='font-style font-weight font-size font-family'
- (Optional) **font-style**: font style. Available values are **'normal'** and **'italic'**.
- (Optional) **font-weight**: font weight. Available values are as follows: **'normal'**, **'bold'**, **'bolder'**, **'lighter'**, **'100'**, **'200'**, **'300'**, **'400'**, **'500'**, **'600'**, **'700'**, **'800'**, **'900'**.
- (Optional) **font-size**: font size and row height. The unit can only be pixels.
- (Optional) **font-family**: font family. Available values are **'sans-serif'**, **'serif'**, and **'monospace'**.
Default value: **'normal normal 14px sans-serif'**| | [textAlign](#textalign) | CanvasTextAlign | Text alignment mode. Available values are as follows:
- **'left'**: The text is left-aligned.
- **'right'**: The text is right-aligned.
- **'center'**: The text is center-aligned.
- **'start'**: The text is aligned with the start bound.
- **'end'**: The text is aligned with the end bound.
In the **ltr** layout mode, the value **'start'** equals **'left'**. In the **rtl** layout mode, the value **'start'** equals **'right'**.
Default value: **'left'**| | [textBaseline](#textbaseline) | CanvasTextBaseline | Horizontal alignment mode of text. Available values are as follows:
- **'alphabetic'**: The text baseline is the normal alphabetic baseline.
- **'top'**: The text baseline is on the top of the text bounding box.
- **'hanging'**: The text baseline is a hanging baseline over the text.
- **'middle'**: The text baseline is in the middle of the text bounding box.
**'ideographic'**: The text baseline is the ideographic baseline. If a character exceeds the alphabetic baseline, the ideographic baseline is located at the bottom of the excess character.
- **'bottom'**: The text baseline is at the bottom of the text bounding box. Its difference from the ideographic baseline is that the ideographic baseline does not consider letters in the next line.
Default value: **'alphabetic'**| | [globalAlpha](#globalalpha) | number | Opacity.
**0.0**: completely transparent.
**1.0**: completely opaque. | | [lineDashOffset](#linedashoffset) | number | Offset of the dashed line. The precision is float.
Default value: **0.0** | | [globalCompositeOperation](#globalcompositeoperation) | string | Composition operation type. Available values are as follows: **'source-over'**, **'source-atop'**, **'source-in'**, **'source-out'**, **'destination-over'**, **'destination-atop'**, **'destination-in'**, **'destination-out'**, **'lighter'**, **'copy'**, and **'xor'**.
Default value: **'source-over'**| | [shadowBlur](#shadowblur) | number | Blur level during shadow drawing. A larger value indicates a more blurred effect. The precision is float.
Default value: **0.0**| | [shadowColor](#shadowcolor) | string | Shadow color. | | [shadowOffsetX](#shadowoffsetx) | number | X-axis shadow offset relative to the original object. | | [shadowOffsetY](#shadowoffsety) | number | Y-axis shadow offset relative to the original object. | | [imageSmoothingEnabled](#imagesmoothingenabled) | boolean | Whether to adjust the image smoothness during image drawing. The value **true** means to enable this feature, and **false** means the opposite.
Default value: **true**| > **NOTE** > > The string-type value of **fillStyle**, **shadowColor**, and **strokeStyle** can be in 'rgb(255, 255, 255)', 'rgba(255, 255, 255, 1.0)', or '\#FFFFFF' format. ### fillStyle ```ts // xxx.ets @Entry @Component struct FillStyleExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillStyle = '#0000ff' this.context.fillRect(20, 160, 150, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058395](figures/en-us_image_0000001257058395.png) ### lineWidth ```ts // xxx.ets @Entry @Component struct LineWidthExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.lineWidth = 5 this.context.strokeRect(25, 25, 85, 105) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378408](figures/en-us_image_0000001212378408.png) ### strokeStyle ```ts // xxx.ets @Entry @Component struct StrokeStyleExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.lineWidth = 10 this.context.strokeStyle = '#0000ff' this.context.strokeRect(25, 25, 155, 105) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212218446](figures/en-us_image_0000001212218446.png) ### lineCap ```ts // xxx.ets @Entry @Component struct LineCapExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.lineWidth = 8 this.context.beginPath() this.context.lineCap = 'round' this.context.moveTo(30, 50) this.context.lineTo(220, 50) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378406](figures/en-us_image_0000001212378406.png) ### lineJoin ```ts // xxx.ets @Entry @Component struct LineJoinExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.lineWidth = 8 this.context.lineJoin = 'miter' this.context.moveTo(30, 30) this.context.lineTo(120, 60) this.context.lineTo(30, 110) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212218438](figures/en-us_image_0000001212218438.png) ### miterLimit ```ts // xxx.ets @Entry @Component struct MiterLimit { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.lineWidth = 8 this.context.lineJoin = 'miter' this.context.miterLimit = 3 this.context.moveTo(30, 30) this.context.lineTo(60, 35) this.context.lineTo(30, 37) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378398](figures/en-us_image_0000001212378398.png) ### font ```ts // xxx.ets @Entry @Component struct Fonts { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.font = '30px sans-serif' this.context.fillText("Hello World", 20, 60) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058409](figures/en-us_image_0000001257058409.png) ### textAlign ```ts // xxx.ets @Entry @Component struct CanvasExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.strokeStyle = '#0000ff' this.context.moveTo(140, 10) this.context.lineTo(140, 160) this.context.stroke() this.context.font = '18px sans-serif' this.context.textAlign = 'start' this.context.fillText('textAlign=start', 140, 60) this.context.textAlign = 'end' this.context.fillText('textAlign=end', 140, 80) this.context.textAlign = 'left' this.context.fillText('textAlign=left', 140, 100) this.context.textAlign = 'center' this.context.fillText('textAlign=center',140, 120) this.context.textAlign = 'right' this.context.fillText('textAlign=right',140, 140) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256978351](figures/en-us_image_0000001256978351.png) ### textBaseline ```ts // xxx.ets @Entry @Component struct TextBaseline { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.strokeStyle = '#0000ff' this.context.moveTo(0, 120) this.context.lineTo(400, 120) this.context.stroke() this.context.font = '20px sans-serif' this.context.textBaseline = 'top' this.context.fillText('Top', 10, 120) this.context.textBaseline = 'bottom' this.context.fillText('Bottom', 55, 120) this.context.textBaseline = 'middle' this.context.fillText('Middle', 125, 120) this.context.textBaseline = 'alphabetic' this.context.fillText('Alphabetic', 195, 120) this.context.textBaseline = 'hanging' this.context.fillText('Hanging', 295, 120) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212058462](figures/en-us_image_0000001212058462.png) ### globalAlpha ```ts // xxx.ets @Entry @Component struct GlobalAlpha { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(0, 0, 50, 50) this.context.globalAlpha = 0.4 this.context.fillStyle = 'rgb(0,0,255)' this.context.fillRect(50, 50, 50, 50) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001194192434](figures/en-us_image_0000001194192434.png) ### lineDashOffset ```ts // xxx.ets @Entry @Component struct LineDashOffset { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.arc(100, 75, 50, 0, 6.28) this.context.setLineDash([10,20]) this.context.lineDashOffset = 10.0 this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001194352434](figures/en-us_image_0000001194352434.png) ### globalCompositeOperation | Name | Description | | ---------------- | ------------------------ | | source-over | Displays the new drawing above the existing drawing. This attribute is used by default. | | source-atop | Displays the new drawing on the top of the existing drawing. | | source-in | Displays the new drawing inside the existing drawing. | | source-out | Displays part of the new drawing that is outside of the existing drawing. | | destination-over | Displays the existing drawing above the new drawing. | | destination-atop | Displays the existing drawing on the top of the new drawing. | | destination-in | Displays the existing drawing inside the new drawing. | | destination-out | Displays the existing drawing outside the new drawing. | | lighter | Displays both the new and existing drawing. | | copy | Displays the new drawing and neglects the existing drawing. | | xor | Combines the new drawing and existing drawing using the XOR operation.| ```ts // xxx.ets @Entry @Component struct GlobalCompositeOperation { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(20, 20, 50, 50) this.context.globalCompositeOperation = 'source-over' this.context.fillStyle = 'rgb(0,0,255)' this.context.fillRect(50, 50, 50, 50) this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(120, 20, 50, 50) this.context.globalCompositeOperation = 'destination-over' this.context.fillStyle = 'rgb(0,0,255)' this.context.fillRect(150, 50, 50, 50) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001211898480](figures/en-us_image_0000001211898480.png) ### shadowBlur ```ts // xxx.ets @Entry @Component struct ShadowBlur { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.shadowBlur = 30 this.context.shadowColor = 'rgb(0,0,0)' this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(20, 20, 100, 80) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256978343](figures/en-us_image_0000001256978343.png) ### shadowColor ```ts // xxx.ets @Entry @Component struct ShadowColor { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.shadowBlur = 30 this.context.shadowColor = 'rgb(0,0,255)' this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(30, 30, 100, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257138353](figures/en-us_image_0000001257138353.png) ### shadowOffsetX ```ts // xxx.ets @Entry @Component struct ShadowOffsetX { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.shadowBlur = 10 this.context.shadowOffsetX = 20 this.context.shadowColor = 'rgb(0,0,0)' this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(20, 20, 100, 80) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212218436](figures/en-us_image_0000001212218436.png) ### shadowOffsetY ```ts // xxx.ets @Entry @Component struct ShadowOffsetY { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.shadowBlur = 10 this.context.shadowOffsetY = 20 this.context.shadowColor = 'rgb(0,0,0)' this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(30, 30, 100, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378410](figures/en-us_image_0000001212378410.png) ### imageSmoothingEnabled ```ts // xxx.ets @Entry @Component struct ImageSmoothingEnabled { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) private img:ImageBitmap = new ImageBitmap("common/images/icon.jpg") build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.imageSmoothingEnabled = false this.context.drawImage( this.img,0,0,400,200) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001211898472](figures/en-us_image_0000001211898472.png) ## Methods ### fillRect fillRect(x: number, y: number, w: number, h: number): void Fills a rectangle on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ------ | ------ | ---- | ---- | ------------- | | x | number | Yes | 0 | X-coordinate of the upper left corner of the rectangle.| | y | number | Yes | 0 | Y-coordinate of the upper left corner of the rectangle.| | width | number | Yes | 0 | Width of the rectangle. | | height | number | Yes | 0 | Height of the rectangle. | **Example** ```ts // xxx.ets @Entry @Component struct FillRect { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillRect(0,30,100,100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212218440](figures/en-us_image_0000001212218440.png) ### strokeRect strokeRect(x: number, y: number, w: number, h: number): void Draws an outlined rectangle on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ------------ | | x | number | Yes | 0 | X-coordinate of the upper left corner of the rectangle.| | y | number | Yes | 0 | Y-coordinate of the upper left corner of the rectangle.| | w | number | Yes | 0 | Width of the rectangle. | | h | number | Yes | 0 | Height of the rectangle. | **Example** ```ts // xxx.ets @Entry @Component struct StrokeRect { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.strokeRect(30, 30, 200, 150) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257138359](figures/en-us_image_0000001257138359.png) ### clearRect clearRect(x: number, y: number, w: number, h: number): void Clears the content in a rectangle on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ------------- | | x | number | Yes | 0 | X-coordinate of the upper left corner of the rectangle.| | y | number | Yes | 0 | Y-coordinate of the upper left corner of the rectangle.| | w | number | Yes | 0 | Width of the rectangle. | | h | number | Yes | 0 | Height of the rectangle. | **Example** ```ts // xxx.ets @Entry @Component struct ClearRect { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillStyle = 'rgb(0,0,255)' this.context.fillRect(20,20,200,200) this.context.clearRect(30,30,150,100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001211898482](figures/en-us_image_0000001211898482.png) ### fillText fillText(text: string, x: number, y: number, maxWidth?: number): void Draws filled text on the canvas. **Parameters** | Name | Type | Mandatory| Default Value| Description | | -------- | ------ | ---- | ------ | ----------------------------- | | text | string | Yes | '' | Text to draw. | | x | number | Yes | 0 | X-coordinate of the lower left corner of the text.| | y | number | Yes | 0 | Y-coordinate of the lower left corner of the text.| | maxWidth | number | No | - | Maximum width allowed for the text. | **Example** ```ts // xxx.ets @Entry @Component struct FillText { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.font = '30px sans-serif' this.context.fillText("Hello World!", 20, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058399](figures/en-us_image_0000001257058399.png) ### strokeText strokeText(text: string, x: number, y: number, maxWidth?:number): void Draws a text stroke on the canvas. **Parameters** | Name | Type | Mandatory| Default Value| Description | | -------- | ------ | ---- | ------ | ----------------------------- | | text | string | Yes | '' | Text to draw. | | x | number | Yes | 0 | X-coordinate of the lower left corner of the text.| | y | number | Yes | 0 | Y-coordinate of the lower left corner of the text.| | maxWidth | number | No | - | Maximum width of the text to be drawn. | **Example** ```ts // xxx.ets @Entry @Component struct StrokeText { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.font = '55px sans-serif' this.context.strokeText("Hello World!", 20, 60) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256978349](figures/en-us_image_0000001256978349.png) ### measureText measureText(text: string): TextMetrics Measures the specified text to obtain its width. This API returns a **TextMetrics** object. **Parameters** | Name| Type | Mandatory| Default Value| Description | | ---- | ------ | ---- | ------ | -------------------- | | text | string | Yes | '' | Text to be measured.| **Return value** | Type | Description | | ----------- | ---------------- | | TextMetrics | **TextMetrics** object.| **TextMetrics** | Attribute | Type | Description | | ------------------------ | ------ | ---------------------------------------- | | width | number | Width of the text. | | height | number | Height of the text. | | actualBoundingBoxAscent | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the top of the bounding rectangle used to render the text. The current value is **0**.| | actualBoundingBoxDescent | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the bottom of the bounding rectangle used to render the text. The current value is **0**.| | actualBoundingBoxLeft | number | Distance parallel to the baseline from the alignment point determined by the **CanvasRenderingContext2D.textAlign** attribute to the left side of the bounding rectangle of the text. The current value is **0**.| | actualBoundingBoxRight | number | Distance parallel to the baseline from the alignment point determined by the **CanvasRenderingContext2D.textAlign** attribute to the right side of the bounding rectangle of the text. The current value is **0**.| | alphabeticBaseline | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the alphabetic baseline of the line box. The current value is **0**.| | emHeightAscent | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the top of the em square in the line box. The current value is **0**.| | emHeightDescent | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the bottom of the em square in the line box. The current value is **0**.| | fontBoundingBoxAscent | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the top of the highest bounding rectangle of all the fonts used to render the text. The current value is **0**.| | fontBoundingBoxDescent | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the bottom of the bounding rectangle of all the fonts used to render the text. The current value is **0**.| | hangingBaseline | number | Distance from the horizontal line specified by the **CanvasRenderingContext2D.textBaseline** attribute to the hanging baseline of the line box. The current value is **0**.| | ideographicBaseline | number | Distance from the horizontal line indicated by the **CanvasRenderingContext2D.textBaseline** attribute to the ideographic baseline of the line box. The current value is **0**.| **Example** ```ts // xxx.ets @Entry @Component struct MeasureText { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.font = '50px sans-serif' this.context.fillText("Hello World!", 20, 100) this.context.fillText("width:" + this.context.measureText("Hello World!").width, 20, 200) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257138343](figures/en-us_image_0000001257138343.png) ### stroke stroke(path?: Path2D): void Strokes a path. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ---------------------------------------- | ---- | ---- | ------------ | | path | [Path2D](ts-components-canvas-path2d.md) | No | null | A **Path2D** path to draw.| **Example** ```ts // xxx.ets @Entry @Component struct Stroke { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.moveTo(25, 25) this.context.lineTo(25, 105) this.context.lineTo(75, 105) this.context.lineTo(75, 25) this.context.strokeStyle = 'rgb(0,0,255)' this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058411](figures/en-us_image_0000001257058411.png) ### beginPath beginPath(): void Creates a drawing path. **Example** ```ts // xxx.ets @Entry @Component struct BeginPath { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.lineWidth = 6 this.context.strokeStyle = '#0000ff' this.context.moveTo(15, 80) this.context.lineTo(280, 160) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212058478](figures/en-us_image_0000001212058478.png) ### moveTo moveTo(x: number, y: number): void Moves a drawing path to a target position on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | --------- | | x | number | Yes | 0 | X-coordinate of the target position.| | y | number | Yes | 0 | Y-coordinate of the target position.| **Example** ```ts // xxx.ets @Entry @Component struct MoveTo { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.moveTo(10, 10) this.context.lineTo(280, 160) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256858391](figures/en-us_image_0000001256858391.png) ### lineTo lineTo(x: number, y: number): void Connects the current point to a target position using a straight line. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | --------- | | x | number | Yes | 0 | X-coordinate of the target position.| | y | number | Yes | 0 | Y-coordinate of the target position.| **Example** ```ts // xxx.ets @Entry @Component struct LineTo { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.moveTo(10, 10) this.context.lineTo(280, 160) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378414](figures/en-us_image_0000001212378414.png) ### closePath closePath(): void Draws a closed path. **Example** ```ts // xxx.ets @Entry @Component struct ClosePath { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.moveTo(30, 30) this.context.lineTo(110, 30) this.context.lineTo(70, 90) this.context.closePath() this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256978347](figures/en-us_image_0000001256978347.png) ### createPattern createPattern(image: ImageBitmap, repetition: string | null): CanvasPattern | null Creates a pattern for image filling based on a specified source image and repetition mode. **Parameters** | Name | Type | Mandatory| Description | | ---------- | -------------------------------------------------- | ---- | ------------------------------------------------------------ | | image | [ImageBitmap](ts-components-canvas-imagebitmap.md) | Yes | Source image. For details, see **ImageBitmap**. | | repetition | string | Yes | Repetition mode. The value can be **'repeat'**, **'repeat-x'**, **'repeat-y'**, or **'no-repeat'**.

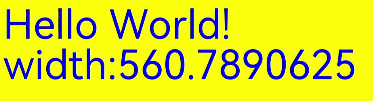

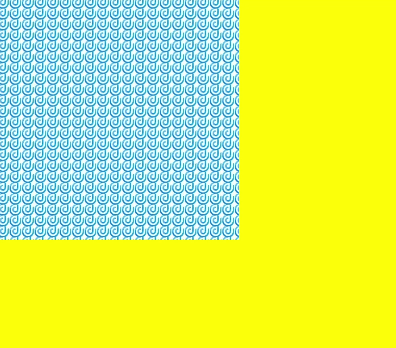

Default value: **''**| **Return value** | Type | Description | | ------------------------------- | ----------------------- | | [CanvasPattern](#canvaspattern) | Created pattern for image filling based on a specified source image and repetition mode.| **Example** ```ts // xxx.ets @Entry @Component struct CreatePattern { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) private img:ImageBitmap = new ImageBitmap("common/images/icon.jpg") build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ var pattern = this.context.createPattern(this.img, 'repeat') this.context.fillStyle = pattern this.context.fillRect(0, 0, 200, 200) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001211898490](figures/en-us_image_0000001211898490.png) ### bezierCurveTo bezierCurveTo(cp1x: number, cp1y: number, cp2x: number, cp2y: number, x: number, y: number): void Draws a cubic bezier curve on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | -------------- | | cp1x | number | Yes | 0 | X-coordinate of the first parameter of the bezier curve.| | cp1y | number | Yes | 0 | Y-coordinate of the first parameter of the bezier curve.| | cp2x | number | Yes | 0 | X-coordinate of the second parameter of the bezier curve.| | cp2y | number | Yes | 0 | Y-coordinate of the second parameter of the bezier curve.| | x | number | Yes | 0 | X-coordinate of the end point on the bezier curve. | | y | number | Yes | 0 | Y-coordinate of the end point on the bezier curve. | **Example** ```ts // xxx.ets @Entry @Component struct BezierCurveTo { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.moveTo(10, 10) this.context.bezierCurveTo(20, 100, 200, 100, 200, 20) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257138349](figures/en-us_image_0000001257138349.png) ### quadraticCurveTo quadraticCurveTo(cpx: number, cpy: number, x: number, y: number): void Draws a quadratic curve on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ----------- | | cpx | number | Yes | 0 | X-coordinate of the bezier curve parameter.| | cpy | number | Yes | 0 | Y-coordinate of the bezier curve parameter.| | x | number | Yes | 0 | X-coordinate of the end point on the bezier curve.| | y | number | Yes | 0 | Y-coordinate of the end point on the bezier curve.| **Example** ```ts // xxx.ets @Entry @Component struct QuadraticCurveTo { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.moveTo(20, 20) this.context.quadraticCurveTo(100, 100, 200, 20) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058397](figures/en-us_image_0000001257058397.png) ### arc arc(x: number, y: number, radius: number, startAngle: number, endAngle: number, counterclockwise?: boolean): void Draws an arc on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---------------- | ------- | ---- | ----- | ---------- | | x | number | Yes | 0 | X-coordinate of the center point of the arc.| | y | number | Yes | 0 | Y-coordinate of the center point of the arc.| | radius | number | Yes | 0 | Radius of the arc. | | startAngle | number | Yes | 0 | Start radian of the arc. | | endAngle | number | Yes | 0 | End radian of the arc. | | counterclockwise | boolean | No | false | Whether to draw the arc counterclockwise.| **Example** ```ts // xxx.ets @Entry @Component struct Arc { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.arc(100, 75, 50, 0, 6.28) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378404](figures/en-us_image_0000001212378404.png) ### arcTo arcTo(x1: number, y1: number, x2: number, y2: number, radius: number): void Draws an arc based on the radius and points on the arc. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ------ | ------ | ---- | ---- | --------------- | | x1 | number | Yes | 0 | X-coordinate of the first point on the arc.| | y1 | number | Yes | 0 | Y-coordinate of the first point on the arc.| | x2 | number | Yes | 0 | X-coordinate of the second point on the arc.| | y2 | number | Yes | 0 | Y-coordinate of the second point on the arc.| | radius | number | Yes | 0 | Radius of the arc. | **Example** ```ts // xxx.ets @Entry @Component struct ArcTo { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.moveTo(100, 20) this.context.arcTo(150, 20, 150, 70, 50) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058413](figures/en-us_image_0000001257058413.png) ### ellipse ellipse(x: number, y: number, radiusX: number, radiusY: number, rotation: number, startAngle: number, endAngle: number, counterclockwise?: boolean): void Draws an ellipse in the specified rectangular region on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---------------- | ------- | ---- | ----- | ----------------- | | x | number | Yes | 0 | X-coordinate of the ellipse center. | | y | number | Yes | 0 | Y-coordinate of the ellipse center. | | radiusX | number | Yes | 0 | Ellipse radius on the x-axis. | | radiusY | number | Yes | 0 | Ellipse radius on the y-axis. | | rotation | number | Yes | 0 | Rotation angle of the ellipse. The unit is radian. | | startAngle | number | Yes | 0 | Angle of the start point for drawing the ellipse. The unit is radian.| | endAngle | number | Yes | 0 | Angle of the end point for drawing the ellipse. The unit is radian.| | counterclockwise | boolean | No | false | Whether to draw the ellipse in the counterclockwise direction.
**true**: Draw the arc counterclockwise.
**false**: Draw the arc clockwise. | **Example** ```ts // xxx.ets @Entry @Component struct CanvasExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.beginPath() this.context.ellipse(200, 200, 50, 100, Math.PI * 0.25, Math.PI * 0.5, Math.PI * 2) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256978339](figures/en-us_image_0000001256978339.png) ### rect rect(x: number, y: number, w: number, h: number): void Creates a rectangle on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ------------- | | x | number | Yes | 0 | X-coordinate of the upper left corner of the rectangle.| | y | number | Yes | 0 | Y-coordinate of the upper left corner of the rectangle.| | w | number | Yes | 0 | Width of the rectangle. | | h | number | Yes | 0 | Height of the rectangle. | **Example** ```ts // xxx.ets @Entry @Component struct CanvasExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.rect(20, 20, 100, 100) // Create a 100*100 rectangle at (20, 20) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256978341](figures/en-us_image_0000001256978341.png) ### fill fill(fillRule?: CanvasFillRule): void Fills the area inside a closed path on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | -------- | -------------- | ---- | --------- | ---------------------------------------- | | fillRule | CanvasFillRule | No | "nonzero" | Rule by which to determine whether a point is inside or outside the area to fill.
The options are **"nonzero"** and **"evenodd"**.| **Example** ```ts // xxx.ets @Entry @Component struct Fill { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.rect(20, 20, 100, 100) // Create a 100*100 rectangle at (20, 20) this.context.fill() }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256858389](figures/en-us_image_0000001256858389.png) fill(path: Path2D, fillRule?: CanvasFillRule): void Fills the area inside a closed path on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | -------- | -------------- | ---- | --------- | ---------------------------------------- | | path | Path2D | Yes | | A **Path2D** path to fill. | | fillRule | CanvasFillRule | No | "nonzero" | Rule by which to determine whether a point is inside or outside the area to fill.
The options are **"nonzero"** and **"evenodd"**.| **Example** ```ts // xxx.ets @Entry @Component struct Fill { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ let region = new Path2D() region.moveTo(30, 90) region.lineTo(110, 20) region.lineTo(240, 130) region.lineTo(60, 130) region.lineTo(190, 20) region.lineTo(270, 90) region.closePath() // Fill path this.context.fillStyle = '#00ff00' this.context.fill(region, "evenodd") }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777774](figures/en-us_image_000000127777774.png) ### clip clip(fillRule?: CanvasFillRule): void Sets the current path to a clipping area. **Parameters** | Name | Type | Mandatory | Default Value | Description | | -------- | -------------- | ---- | --------- | ---------------------------------------- | | fillRule | CanvasFillRule | No | "nonzero" | Rule by which to determine whether a point is inside or outside the area to clip.
The options are **"nonzero"** and **"evenodd"**.| **Example** ```ts // xxx.ets @Entry @Component struct Clip { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.rect(0, 0, 100, 200) this.context.stroke() this.context.clip() this.context.fillStyle = "rgb(255,0,0)" this.context.fillRect(0, 0, 200, 200) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001211898488](figures/en-us_image_0000001211898488.png) clip(path: Path2D, fillRule?: CanvasFillRule): void Sets the current path to a clipping path. **Parameters** | Name | Type | Mandatory | Default Value | Description | | -------- | -------------- | ---- | --------- | ---------------------------------------- | | path | Path2D | Yes | - | A **Path2D** path to use as a clipping area. | | fillRule | CanvasFillRule | No | "nonzero" | Rule by which to determine whether a point is inside or outside the area to clip.
The options are **"nonzero"** and **"evenodd"**.| **Example** ```ts // xxx.ets @Entry @Component struct Clip { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ let region = new Path2D() region.rect(80,10,20,130) region.rect(40,50,100,50) this.context.clip(region,"evenodd") this.context.fillStyle = "rgb(255,0,0)" this.context.fillRect(0, 0, this.context.width, this.context.height) }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777779](figures/en-us_image_000000127777779.png) ### filter filter(filter: string): void Provides filter effects. This API is a void API. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ------ | ------ | ---- | ---- | ------------ | | filter | string | Yes | - | Filter functions.| ### getTransform getTransform(): Matrix2D Obtains the current transformation matrix being applied to the context. This API is a void API. ### resetTransform resetTransform(): void Resets the current transform to the identity matrix. This API is a void API. ### direction direction(direction: CanvasDirection): void Sets the current text direction used to draw text. This API is a void API. ### rotate rotate(angle: number): void Rotates a canvas clockwise around its coordinate axes. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ----- | ------ | ---- | ---- | ---------------------------------------- | | angle | number | Yes | 0 | Clockwise rotation angle. You can use **Math.PI / 180** to convert the angle to a radian.| **Example** ```ts // xxx.ets @Entry @Component struct Rotate { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.rotate(45 * Math.PI / 180) this.context.fillRect(70, 20, 50, 50) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212218442](figures/en-us_image_0000001212218442.png) ### scale scale(x: number, y: number): void Scales the canvas based on the given scale factors. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ----------- | | x | number | Yes | 0 | Horizontal scale factor.| | y | number | Yes | 0 | Vertical scale factor.| **Example** ```ts // xxx.ets @Entry @Component struct Scale { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.lineWidth = 3 this.context.strokeRect(30, 30, 50, 50) this.context.scale(2, 2) // Scale to 200% this.context.strokeRect(30, 30, 50, 50) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257138347](figures/en-us_image_0000001257138347.png) ### transform transform(a: number, b: number, c: number, d: number, e: number, f: number): void Defines a transformation matrix. To transform a graph, you only need to set parameters of the matrix. The coordinates of the graph are multiplied by the matrix values to obtain new coordinates of the transformed graph. You can use the matrix to implement multiple transform effects. > **NOTE** > > The following formulas calculate coordinates of the transformed graph. **x** and **y** represent coordinates before transformation, and **x'** and **y'** represent coordinates after transformation. > > - x' = scaleX \* x + skewY \* y + translateX > > - y' = skewX \* x + scaleY \* y + translateY **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | -------------------- | | a | number | Yes | 0 | X-axis scale. | | b | number | Yes | 0 | X-axis skew. | | c | number | Yes | 0 | Y-axis skew. | | d | number | Yes | 0 | Y-axis scale. | | e | number | Yes | 0 | X-axis translation.| | f | number | Yes | 0 | Y-axis translation.| **Example** ```ts // xxx.ets @Entry @Component struct Transform { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillStyle = 'rgb(0,0,0)' this.context.fillRect(0, 0, 100, 100) this.context.transform(1, 0.5, -0.5, 1, 10, 10) this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(0, 0, 100, 100) this.context.transform(1, 0.5, -0.5, 1, 10, 10) this.context.fillStyle = 'rgb(0,0,255)' this.context.fillRect(0, 0, 100, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256858393](figures/en-us_image_0000001256858393.png) ### setTransform setTransform(a: number, b: number, c: number, d: number, e: number, f: number): void Resets the existing transformation matrix and creates a new transformation matrix by using the same parameters as the **transform()** API. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | -------------------- | | a | number | Yes | 0 | X-axis scale. | | b | number | Yes | 0 | X-axis skew. | | c | number | Yes | 0 | Y-axis skew. | | d | number | Yes | 0 | Y-axis scale. | | e | number | Yes | 0 | X-axis translation.| | f | number | Yes | 0 | Y-axis translation.| **Example** ```ts // xxx.ets @Entry @Component struct SetTransform { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillStyle = 'rgb(255,0,0)' this.context.fillRect(0, 0, 100, 100) this.context.setTransform(1,0.5, -0.5, 1, 10, 10) this.context.fillStyle = 'rgb(0,0,255)' this.context.fillRect(0, 0, 100, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001256858395](figures/en-us_image_0000001256858395.png) setTransform(transform?: Matrix2D): void Resets the current transformation to the identity matrix, and then creates a new transformation matrix based on the specified **Matrix2D** object. This API is a void API. ### translate translate(x: number, y: number): void Moves the origin of the coordinate system. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | -------- | | x | number | Yes | 0 | X-axis translation.| | y | number | Yes | 0 | Y-axis translation.| **Example** ```ts // xxx.ets @Entry @Component struct Translate { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.fillRect(10, 10, 50, 50) this.context.translate(70, 70) this.context.fillRect(10, 10, 50, 50) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257138357](figures/en-us_image_0000001257138357.png) ### drawImage drawImage(image: ImageBitmap | PixelMap, dx: number, dy: number): void drawImage(image: ImageBitmap | PixelMap, dx: number, dy: number, dw: number, dh: number): void drawImage(image: ImageBitmap | PixelMap, sx: number, sy: number, sw: number, sh: number, dx: number, dy: number, dw: number, dh: number):void Draws an image on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ----- | ---------------------------------------- | ---- | ---- | ---------------------------------------- | | image | [ImageBitmap](ts-components-canvas-imagebitmap.md) or [PixelMap](../apis/js-apis-image.md#pixelmap7)| Yes | null | Image resource. For details, see **ImageBitmap** or PixelMap. | | sx | number | No | 0 | X-coordinate of the upper left corner of the rectangle used to crop the source image. | | sy | number | No | 0 | Y-coordinate of the upper left corner of the rectangle used to crop the source image. | | sw | number | No | 0 | Target width to crop the source image. | | sh | number | No | 0 | Target height to crop the source image. | | dx | number | Yes | 0 | X-coordinate of the upper left corner of the drawing area on the canvas. | | dy | number | Yes | 0 | Y-coordinate of the upper left corner of the drawing area on the canvas. | | dw | number | No | 0 | Width of the drawing area. If the width of the drawing area is different from that of the cropped image, the latter will be stretched or compressed to the former.| | dh | number | No | 0 | Height of the drawing area. If the height of the drawing area is different from that of the cropped image, the latter will be stretched or compressed to the former.| **Example** ```ts // xxx.ets @Entry @Component struct ImageExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) private img:ImageBitmap = new ImageBitmap("common/images/example.jpg") build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.drawImage( this.img,0,0,500,500,0,0,400,200) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212058466](figures/en-us_image_0000001212058466.png) ### createImageData createImageData(sw: number, sh: number): ImageData Creates an **[ImageData](ts-components-canvas-imagedata.md)** object with the specified dimensions. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ------------- | | sw | number | Yes | 0 | Width of the **ImageData** object.| | sh | number | Yes | 0 | Height of the **ImageData** object.| createImageData(imageData: ImageData): ImageData Creates an **[ImageData](ts-components-canvas-imagedata.md)** object. **Parameters** | Name | Type | Mandatory | Default Value | Description | | --------- | ---------------------------------------- | ---- | ---- | ----------------- | | imagedata | [ImageData](ts-components-canvas-imagedata.md) | Yes | null | **ImageData** object with the same width and height copied from the original **ImageData** object.| **Return value** | Type | Description | | ---------------------------------------- | -------------- | | [ImageData](ts-components-canvas-imagedata.md) | New **ImageData** object.| ### getPixelMap getPixelMap(sx: number, sy: number, sw: number, sh: number): PixelMap Obtains the **[PixelMap](../apis/js-apis-image.md#pixelmap7)** object created with the pixels within the specified area on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | --------------- | | sx | number | Yes | 0 | X-coordinate of the upper left corner of the output area.| | sy | number | Yes | 0 | Y-coordinate of the upper left corner of the output area.| | sw | number | Yes | 0 | Width of the output area. | | sh | number | Yes | 0 | Height of the output area. | **Return value** | Type | Description | | ---------------------------------------- | ------------- | | [PixelMap](../apis/js-apis-image.md#pixelmap7) | **PixelMap** object.| ### getImageData getImageData(sx: number, sy: number, sw: number, sh: number): ImageData Obtains the **[ImageData](ts-components-canvas-imagedata.md)** object created with the pixels within the specified area on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | --------------- | | sx | number | Yes | 0 | X-coordinate of the upper left corner of the output area.| | sy | number | Yes | 0 | Y-coordinate of the upper left corner of the output area.| | sw | number | Yes | 0 | Width of the output area. | | sh | number | Yes | 0 | Height of the output area. | **Return value** | Type | Description | | ---------------------------------------- | -------------- | | [ImageData](ts-components-canvas-imagedata.md) | New **ImageData** object.| **Example** ```ts // xxx.ets @Entry @Component struct GetImageData { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) private img:ImageBitmap = new ImageBitmap("/common/images/1234.png") build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.drawImage(this.img,0,0,130,130) var imagedata = this.context.getImageData(50,50,130,130) this.context.putImageData(imagedata,150,150) }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777780](figures/en-us_image_000000127777780.png) ### putImageData putImageData(imageData: ImageData, dx: number, dy: number): void putImageData(imageData: ImageData, dx: number, dy: number, dirtyX: number, dirtyY: number, dirtyWidth: number, dirtyHeight: number): void Puts an **[ImageData](ts-components-canvas-imagedata.md)** object onto a rectangular area on the canvas. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ----------- | ---------------------------------------- | ---- | ------------ | ----------------------------- | | imagedata | [ImageData](ts-components-canvas-imagedata.md) | Yes | null | **ImageData** object with pixels to put onto the canvas. | | dx | number | Yes | 0 | X-axis offset of the rectangular area on the canvas. | | dy | number | Yes | 0 | Y-axis offset of the rectangular area on the canvas. | | dirtyX | number | No | 0 | X-axis offset of the upper left corner of the rectangular area relative to that of the source image.| | dirtyY | number | No | 0 | Y-axis offset of the upper left corner of the rectangular area relative to that of the source image.| | dirtyWidth | number | No | Width of the **ImageData** object| Width of the rectangular area to crop the source image. | | dirtyHeight | number | No | Height of the **ImageData** object| Height of the rectangular area to crop the source image. | **Example** ```ts // xxx.ets @Entry @Component struct PutImageData { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ var imageData = this.context.createImageData(100, 100) for (var i = 0; i < imageData.data.length; i += 4) { imageData.data[i + 0] = 255 imageData.data[i + 1] = 0 imageData.data[i + 2] = 255 imageData.data[i + 3] = 255 } this.context.putImageData(imageData, 10, 10) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378396](figures/en-us_image_0000001212378396.png) ### setLineDash setLineDash(segments: number[]): void Sets the dash line style. **Parameters** | Name | Type | Description | | -------- | -------- | ------------------- | | segments | number[] | An array of numbers that specify distances to alternately draw a line and a gap.| **Example** ```ts // xxx.ets @Entry @Component struct SetLineDash { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.arc(100, 75, 50, 0, 6.28) this.context.setLineDash([10,20]) this.context.stroke() }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777771](figures/en-us_image_000000127777771.png) ### getLineDash getLineDash(): number[] Obtains the dash line style. **Return value** | Type | Description | | -------- | ------------------------ | | number[] | An array of numbers that specify distances to alternately draw a line and a gap.| **Example** ```ts // xxx.ets @Entry @Component struct CanvasGetLineDash { @State message: string = 'Hello World' private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Row() { Column() { Text(this.message) .fontSize(50) .fontWeight(FontWeight.Bold) .onClick(()=>{ console.error('before getlinedash clicked') let res = this.context.getLineDash() console.error(JSON.stringify(res)) }) Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() => { this.context.arc(100, 75, 50, 0, 6.28) this.context.setLineDash([10,20]) this.context.stroke() let res = this.context.getLineDash() }) } .width('100%') } .height('100%') } } ``` ![en-us_image_000000127777778](figures/en-us_image_000000127777778.png) ### imageSmoothingQuality imageSmoothingQuality(quality: imageSmoothingQuality) Sets the quality of image smoothing. This API is a void API. **Parameters** | Name | Type | Description | | ------- | --------------------- | ---------------------------------------- | | quality | imageSmoothingQuality | The options are as follows: '**low'**, **'medium'**, and **'high'**.| ### transferFromImageBitmap transferFromImageBitmap(bitmap: ImageBitmap): void Displays the specified **ImageBitmap** object. **Parameters** | Name | Type | Description | | ------ | ---------------------------------------- | ------------------ | | bitmap | [ImageBitmap](ts-components-canvas-imagebitmap.md) | **ImageBitmap** object to display.| **Example** ```ts // xxx.ets @Entry @Component struct TransferFromImageBitmap { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) private offContext: OffscreenCanvasRenderingContext2D = new OffscreenCanvasRenderingContext2D(600, 600, this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ var imageData = this.offContext.createImageData(100, 100) for (var i = 0; i < imageData.data.length; i += 4) { imageData.data[i + 0] = 255 imageData.data[i + 1] = 0 imageData.data[i + 2] = 255 imageData.data[i + 3] = 255 } this.offContext.putImageData(imageData, 10, 10) var image = this.offContext.transferToImageBitmap() this.context.transferFromImageBitmap(image) }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777773](figures/en-us_image_000000127777773.png) ### toDataURL toDataURL(type?: string, quality?: number): string Generates a URL containing image display information. **Parameters** | Name | Type | Mandatory | Description | | ------- | ------ | ---- | ---------------------------------------- | | type | string | No | Image format. The default value is **image/png**. | | quality | number | No | Image quality, which ranges from 0 to 1, when the image format is **image/jpeg** or **image/webp**. If the set value is beyond the value range, the default value **0.92** is used.| **Return value** | Type | Description | | ------ | --------- | | string | Image URL.| **Example** ```ts // xxx.ets @Entry @Component struct ToDataURL { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ var dataURL = this.context.toDataURL() }) } .width('100%') .height('100%') } } ``` ### restore restore(): void Restores the saved drawing context. **Example** ```ts // xxx.ets @Entry @Component struct CanvasExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.save() // save the default state this.context.fillStyle = "#00ff00" this.context.fillRect(20, 20, 100, 100) this.context.restore() // restore to the default state this.context.fillRect(150, 75, 100, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777781](figures/en-us_image_000000127777781.png) ### save save(): void Saves all states of the canvas in the stack. This API is usually called when the drawing state needs to be saved. **Example** ```ts // xxx.ets @Entry @Component struct CanvasExample { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ this.context.save() // save the default state this.context.fillStyle = "#00ff00" this.context.fillRect(20, 20, 100, 100) this.context.restore() // restore to the default state this.context.fillRect(150, 75, 100, 100) }) } .width('100%') .height('100%') } } ``` ![en-us_image_000000127777781](figures/en-us_image_000000127777781.png) ### createLinearGradient createLinearGradient(x0: number, y0: number, x1: number, y1: number): void Creates a linear gradient. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | -------- | | x0 | number | Yes | 0 | X-coordinate of the start point.| | y0 | number | Yes | 0 | Y-coordinate of the start point.| | x1 | number | Yes | 0 | X-coordinate of the end point.| | y1 | number | Yes | 0 | Y-coordinate of the end point.| **Example** ```ts // xxx.ets @Entry @Component struct CreateLinearGradient { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ var grad = this.context.createLinearGradient(50,0, 300,100) grad.addColorStop(0.0, '#ff0000') grad.addColorStop(0.5, '#ffffff') grad.addColorStop(1.0, '#00ff00') this.context.fillStyle = grad this.context.fillRect(0, 0, 500, 500) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001212378412](figures/en-us_image_0000001212378412.png) ### createRadialGradient createRadialGradient(x0: number, y0: number, r0: number, x1: number, y1: number, r1: number): void Creates a linear gradient. **Parameters** | Name | Type | Mandatory | Default Value | Description | | ---- | ------ | ---- | ---- | ----------------- | | x0 | number | Yes | 0 | X-coordinate of the center of the start circle. | | y0 | number | Yes | 0 | Y-coordinate of the center of the start circle. | | r0 | number | Yes | 0 | Radius of the start circle, which must be a non-negative finite number.| | x1 | number | Yes | 0 | X-coordinate of the center of the end circle. | | y1 | number | Yes | 0 | Y-coordinate of the center of the end circle. | | r1 | number | Yes | 0 | Radius of the end circle, which must be a non-negative finite number.| **Example** ```ts // xxx.ets @Entry @Component struct CreateRadialGradient { private settings: RenderingContextSettings = new RenderingContextSettings(true) private context: CanvasRenderingContext2D = new CanvasRenderingContext2D(this.settings) build() { Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.Center }) { Canvas(this.context) .width('100%') .height('100%') .backgroundColor('#ffff00') .onReady(() =>{ var grad = this.context.createRadialGradient(200,200,50, 200,200,200) grad.addColorStop(0.0, '#ff0000') grad.addColorStop(0.5, '#ffffff') grad.addColorStop(1.0, '#00ff00') this.context.fillStyle = grad this.context.fillRect(0, 0, 500, 500) }) } .width('100%') .height('100%') } } ``` ![en-us_image_0000001257058405](figures/en-us_image_0000001257058405.png) ## CanvasPattern Defines an object created using the **[createPattern](#createpattern)** API.
