# OffscreenCanvasRenderingContext2D >![](../../public_sys-resources/icon-note.gif) **NOTE:** >**OffscreenCanvasRenderingContext2D** is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version. Use **OffscreenCanvasRenderingContext2D** to draw rectangles, images, and texts on an **OffscreenCanvas**. ## Attributes In addition to the attributes that are supported by **CanvasRenderingContext2D**, the following attributes are supported.

Name

Type

Description

filter

string

Image filter.

Available options are as follows:

  • blur: applies the Gaussian blur for the image.
  • brightness: applies a linear multiplication to the image to make it look brighter or darker.
  • contrast: adjusts the image contrast.
  • drop-shadow: sets a shadow effect for the image.
  • grayscale: converts the image to a grayscale image.
  • hue-rotate: applies hue rotation to the image.
  • invert: inverts the input image.
  • opacity: opacity of the converted image.
  • saturate: saturation of the converted image.
  • sepia: converts the image to dark brown.
- Example ```
``` ``` //xxx.js export default { onShow(){ var ctx = this.$refs.canvasId.getContext('2d'); var offscreen = new OffscreenCanvas(360, 500); var offCanvas2 = offscreen.getContext("2d"); var img = new Image(); img.src = 'common/images/flower.jpg'; offCanvas2.drawImage(img, 0, 0, 100, 100); offCanvas2.filter = 'blur(5px)'; offCanvas2.drawImage(img, 100, 0, 100, 100); offCanvas2.filter = 'grayscale(50%)'; offCanvas2.drawImage(img, 200, 0, 100, 100); offCanvas2.filter = 'hue-rotate(90deg)'; offCanvas2.drawImage(img, 0, 100, 100, 100); offCanvas2.filter = 'invert(100%)'; offCanvas2.drawImage(img, 100, 100, 100, 100); offCanvas2.filter = 'drop-shadow(8px 8px 10px green)'; offCanvas2.drawImage(img, 200, 100, 100, 100); offCanvas2.filter = 'brightness(0.4)'; offCanvas2.drawImage(img, 0, 200, 100, 100); offCanvas2.filter = 'opacity(25%)'; offCanvas2.drawImage(img, 100, 200, 100, 100); offCanvas2.filter = 'saturate(30%)'; offCanvas2.drawImage(img, 200, 200, 100, 100); offCanvas2.filter = 'sepia(60%)'; offCanvas2.drawImage(img, 0, 300, 100, 100); offCanvas2.filter = 'contrast(200%)'; offCanvas2.drawImage(img, 100, 300, 100, 100); var bitmap = offscreen.transferToImageBitmap(); ctx.transferFromImageBitmap(bitmap); } } ``` ![](figures/c3.png) ## Methods In addition to the attributes that are supported by **CanvasRenderingContext2D**, the following attributes are supported. ### isPointInPath isPointInPath\(path?: Path2D, x: number, y: number\): boolean Checks whether a specified point is in the path area. - Parameters

Name

Type

Mandatory

Description

path

Path2D

No

Path used for checking. If this parameter is not set, the current path is used.

x

number

Yes

X-coordinate of the point used for checking.

y

number

Yes

Y-coordinate of the point used for checking.

- Return values

Type

Description

boolean

Whether a specified point is in the path area.

- Example ```
In path:{{textValue}}

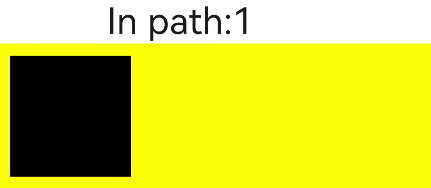

``` ``` // xxx.js export default { data: { textValue: 0 }, onShow(){ var canvas = this.$refs.canvas.getContext('2d'); var offscreen = new OffscreenCanvas(500,500); var offscreenCanvasCtx = offscreen.getContext("2d"); offscreenCanvasCtx.rect(10, 10, 100, 100); offscreenCanvasCtx.fill(); this.textValue = offscreenCanvasCtx.isPointInPath(30, 70); var bitmap = offscreen.transferToImageBitmap(); canvas.transferFromImageBitmap(bitmap); } } ``` ![](figures/en-us_image_0000001224354967.png) ### isPointInStroke isPointInStroke\(path?: Path2D, x: number, y: number\): boolean Checks whether a specified point is on the edge line of a path. - Parameters

Name

Type

Mandatory

Description

path

Path2D

No

Path used for checking. If this parameter is not set, the current path is used.

x

number

Yes

X-coordinate of the point used for checking.

y

number

Yes

Y-coordinate of the point used for checking.

- Return values

Type

Description

boolean

Whether a specified point is in the path area.

- Example ```
In path:{{textValue}}
``` ``` // xxx.js export default { data: { textValue: 0 }, onShow(){ var canvas = this.$refs.canvas.getContext('2d'); var offscreen = new OffscreenCanvas(500,500); var offscreenCanvasCtx = offscreen.getContext("2d"); offscreenCanvasCtx.rect(10, 10, 100, 100); offscreenCanvasCtx.stroke(); this.textValue = offscreenCanvasCtx.isPointInStroke(50, 10); var bitmap = offscreen.transferToImageBitmap(); canvas.transferFromImageBitmap(bitmap); } } ``` ![](figures/en-us_image_0000001178875308.png) ### resetTransform resetTransform\(\): void - Example ```
In path:{{textValue}}
``` ``` //xxx.js export default { data:{ textValue:0 }, onShow(){ var canvas = this.$refs.canvas.getContext('2d'); var offscreen = new OffscreenCanvas(500,500); var offscreenCanvasCtx = offscreen.getContext("2d"); offscreenCanvasCtx.transform(1, 0, 1.7, 1, 0, 0); offscreenCanvasCtx.fillStyle = 'gray'; offscreenCanvasCtx.fillRect(40, 40, 50, 20); offscreenCanvasCtx.fillRect(40, 90, 50, 20); // Non-skewed rectangles offscreenCanvasCtx.resetTransform(); offscreenCanvasCtx.fillStyle = 'red'; offscreenCanvasCtx.fillRect(40, 40, 50, 20); offscreenCanvasCtx.fillRect(40, 90, 50, 20); var bitmap = offscreen.transferToImageBitmap(); canvas.transferFromImageBitmap(bitmap); } } ``` ![](figures/en-us_image_0000001179035242.png)
