# Path2D

>  **NOTE**
>
>  This component is supported since API version 4. Updates will be marked with a superscript to indicate their earliest API version.

**Path2D** allows you to describe a path through an existing path. This path can be drawn through the **stroke** API of **Canvas**.

## addPath

addPath(path: Object): void

Adds a path to this path.

**Parameters**

| Name | Type   | Description                    |
| ---- | ------ | ------------------------------ |
| path | Object | Path to be added to this path. |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 500px; height: 500px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path1 = ctx.createPath2D("M250 150 L150 350 L350 350 Z");
    var path2 = ctx.createPath2D();
    path2.addPath(path1);
    ctx.stroke(path2);
  }
}
  ```

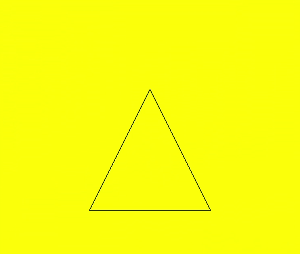

  ![en-us_image_0000001173164873](figures/en-us_image_0000001173164873.png)

## setTransform

setTransform(scaleX: number, skewX: number, skewY: number, scaleY: number, translateX: number, translateY: number): void

Sets the path transformation matrix.

**Parameters**

| Name       | Type   | Description                         |
| ---------- | ------ | ----------------------------------- |
| scaleX     | number | Scale ratio of the x-axis.          |
| skewX      | number | Skew angle of the x-axis.           |
| skewY      | number | Skew angle of the y-axis.           |
| scaleY     | number | Scale ratio of the y-axis.          |
| translateX | number | Translation distance of the x-axis. |
| translateY | number | Translation distance of the y-axis. |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 200px; height: 150px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D("M250 150 L150 350 L350 350 Z");
    path.setTransform(0.8, 0, 0, 0.4, 0, 0);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001127125208](figures/en-us_image_0000001127125208.png)


## closePath

closePath(): void

Moves the current point of the path back to the start point of the path, and draws a straight line between the current point and the start point. If the shape is closed or has only one point, this method does not perform any action.

**Example**
  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 200px; height: 150px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.moveTo(200, 100);
    path.lineTo(300, 100);
    path.lineTo(200, 200);
    path.closePath();
    ctx.stroke(path);
  }
}
  ```

![](figures/en-us_image_0000001127125202.png)


## moveTo

moveTo(x: number, y: number): void

Moves the current coordinate point of the path to the target point, without drawing a line during the movement.

**Parameters**

| Parameter | Type   | Description                       |
| --------- | ------ | --------------------------------- |
| x         | number | X-coordinate of the target point. |
| y         | number | Y-coordinate of the target point. |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 300px; height: 250px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.moveTo(50, 100);
    path.lineTo(250, 100);
    path.lineTo(150, 200);
    path.closePath();
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001173164869](figures/en-us_image_0000001173164869.png)


## lineTo

lineTo(x: number, y: number): void

Draws a straight line from the current point to the target point.

**Parameters**

| Parameter | Type   | Description                       |
| --------- | ------ | --------------------------------- |
| x         | number | X-coordinate of the target point. |
| y         | number | Y-coordinate of the target point. |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 400px; height: 450px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.moveTo(100, 100);
    path.lineTo(100, 200);
    path.lineTo(200, 200);
    path.lineTo(200, 100);
    path.closePath();
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001127285024](figures/en-us_image_0000001127285024.png)


## bezierCurveTo

bezierCurveTo(cp1x: number, cp1y: number, cp2x: number, cp2y: number, x: number, y: number): void

Draws a cubic bezier curve on the canvas.

**Parameters**

| Parameter | Type   | Description                                               |
| --------- | ------ | --------------------------------------------------------- |
| cp1x      | number | X-coordinate of the first parameter of the bezier curve.  |
| cp1y      | number | Y-coordinate of the first parameter of the bezier curve.  |
| cp2x      | number | X-coordinate of the second parameter of the bezier curve. |
| cp2y      | number | Y-coordinate of the second parameter of the bezier curve  |
| x         | number | X-coordinate of the end point on the bezier curve.        |
| y         | number | Y-coordinate of the end point on the bezier curve.        |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 200px; height: 150px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.moveTo(10, 10);
    path.bezierCurveTo(20, 100, 200, 100, 200, 20);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001173324783](figures/en-us_image_0000001173324783.png)


## quadraticCurveTo

quadraticCurveTo(cpx: number, cpy: number, x: number, y: number): void

Draws a quadratic curve on the canvas.

**Parameters**

| Parameter | Type   | Description                                        |
| --------- | ------ | -------------------------------------------------- |
| cpx       | number | X-coordinate of the bezier curve parameter.        |
| cpy       | number | Y-coordinate of the bezier curve parameter.        |
| x         | number | X-coordinate of the end point on the bezier curve. |
| y         | number | Y-coordinate of the end point on the bezier curve. |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 200px; height: 150px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.moveTo(10, 10);
    path.quadraticCurveTo(100, 100, 200, 20);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001173164871](figures/en-us_image_0000001173164871.png)


## arc

arc(x: number, y: number, radius: number, startAngle: number, endAngle: number, anticlockwise: number): void

Draws an arc on the canvas.

**Parameters**

| Parameter     | Type    | Description                                  |
| ------------- | ------- | -------------------------------------------- |
| x             | number  | X-coordinate of the center point of the arc. |
| y             | number  | Y-coordinate of the center point of the arc. |
| radius        | number  | Radius of the arc.                           |
| startAngle    | number  | Start radian of the arc.                     |
| endAngle      | number  | End radian of the arc.                       |
| anticlockwise | boolean | Whether to draw the arc counterclockwise.    |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 200px; height: 150px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.arc(100, 75, 50, 0, 6.28);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001173164867](figures/en-us_image_0000001173164867.png)


## arcTo

arcTo(x1: number, y1: number, x2: number, y2: number, radius: number): void

Draws an arc based on the radius and points on the arc.

**Parameters**

| Parameter | Type   | Description                                  |
| --------- | ------ | -------------------------------------------- |
| x1        | number | X-coordinate of the first point on the arc.  |
| y1        | number | Y-coordinate of the first point on the arc.  |
| x2        | number | X-coordinate of the second point on the arc. |
| y2        | number | Y-coordinate of the second point on the arc. |
| radius    | number | Radius of the arc.                           |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 200px; height: 150px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.arcTo(150, 20, 150, 70, 50);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001127125204](figures/en-us_image_0000001127125204.png)


## ellipse

ellipse(x: number, y: number, radiusX: number, radiusY: number, rotation: number, startAngle: number, endAngle: number, anticlockwise: number): void

Draws an ellipse in the specified rectangular region.

**Parameters**

| Parameter     | Type   | Description                                                  |
| ------------- | ------ | ------------------------------------------------------------ |
| x             | number | X-coordinate of the ellipse center.                          |
| y             | number | Y-coordinate of the ellipse center.                          |
| radiusX       | number | Ellipse radius on the x-axis.                                |
| radiusY       | number | Ellipse radius on the y-axis.                                |
| rotation      | number | Rotation angle of the ellipse. The unit is radian.           |
| startAngle    | number | Angle of the start point for drawing the ellipse. The unit is radian. |
| endAngle      | number | Angle of the end point for drawing the ellipse. The angle is represented by radians. |
| anticlockwise | number | Whether to draw the ellipse in the anticlockwise direction. The value **0** indicates clockwise and the value **1** indicates anticlockwise. This parameter is optional. The default value is **0**. |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 500px; height: 450px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx =el.getContext('2d');
    var path = ctx.createPath2D();
    path.ellipse(200, 200, 50, 100, Math.PI * 0.25, Math.PI * 0.5, Math.PI, 1);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001173324787](figures/en-us_image_0000001173324787.png)


## rect

rect(x: number, y: number, width: number, height: number): void

Creates a rectangle.

**Parameters**

| Parameter | Type   | Description                                             |
| --------- | ------ | ------------------------------------------------------- |
| x         | number | X-coordinate of the upper left corner of the rectangle. |
| y         | number | Y-coordinate of the upper left corner of the rectangle. |
| width     | number | Width of the rectangle.                                 |
| height    | number | Height of the rectangle.                                |

**Example**

  ```html
<!-- xxx.hml -->
<div>
  <canvas ref="canvas" style="width: 500px; height: 450px; background-color: #ffff00;"></canvas>
</div>
  ```

  ```js
// xxx.js
export default {
  onShow() {
    const el =this.$refs.canvas;
    const ctx = el.getContext('2d');
    var path = ctx.createPath2D();
    path.rect(20, 20, 100, 100);
    ctx.stroke(path);
  }
}
  ```

  ![en-us_image_0000001127125212](figures/en-us_image_0000001127125212.png)
