# animateTransform<a name="ZH-CN_TOPIC_0000001173324667"></a>

transform动效，支持的组件范围：

<circle\>, <ellipse\>, <line\>, <path\>, <polygon\>, <polyline\>, <rect\>, <text\>

>![](../../public_sys-resources/icon-note.gif) **说明：**
>从API Version 7 开始支持。

## 权限列表<a name="section11257113618419"></a>

无

## 子组件<a name="section9288143101012"></a>

不支持。

## 属性<a name="section2907183951110"></a>

支持animate属性和以下表格中的属性。

<a name="table20633101642315"></a>
<table><thead align="left"><tr id="row663331618238"><th class="cellrowborder" valign="top" width="23.119999999999997%" id="mcps1.1.6.1.1"><p id="aaf1247770b244944bbcc9f28d9a6f00b"><a name="aaf1247770b244944bbcc9f28d9a6f00b"></a><a name="aaf1247770b244944bbcc9f28d9a6f00b"></a>名称</p>
</th>
<th class="cellrowborder" valign="top" width="23.119999999999997%" id="mcps1.1.6.1.2"><p id="a6efc3502761f4faf9630e484280f75b6"><a name="a6efc3502761f4faf9630e484280f75b6"></a><a name="a6efc3502761f4faf9630e484280f75b6"></a>类型</p>
</th>
<th class="cellrowborder" valign="top" width="10.48%" id="mcps1.1.6.1.3"><p id="a27a37273d9ad47569ddbcb8db985d302"><a name="a27a37273d9ad47569ddbcb8db985d302"></a><a name="a27a37273d9ad47569ddbcb8db985d302"></a>默认值</p>
</th>
<th class="cellrowborder" valign="top" width="7.5200000000000005%" id="mcps1.1.6.1.4"><p id="p824610360217"><a name="p824610360217"></a><a name="p824610360217"></a>必填</p>
</th>
<th class="cellrowborder" valign="top" width="35.76%" id="mcps1.1.6.1.5"><p id="a2ff3361bfd3b420ba4967452d2ddd098"><a name="a2ff3361bfd3b420ba4967452d2ddd098"></a><a name="a2ff3361bfd3b420ba4967452d2ddd098"></a>描述</p>
</th>
</tr>
</thead>
<tbody><tr id="row36332165231"><td class="cellrowborder" valign="top" width="23.119999999999997%" headers="mcps1.1.6.1.1 "><p id="p19122124719532"><a name="p19122124719532"></a><a name="p19122124719532"></a>type</p>
</td>
<td class="cellrowborder" valign="top" width="23.119999999999997%" headers="mcps1.1.6.1.2 "><p id="p3121547175310"><a name="p3121547175310"></a><a name="p3121547175310"></a>[translate | scale | rotate | skewX | skewY]</p>
</td>
<td class="cellrowborder" valign="top" width="10.48%" headers="mcps1.1.6.1.3 "><p id="p201211474539"><a name="p201211474539"></a><a name="p201211474539"></a>-</p>
</td>
<td class="cellrowborder" valign="top" width="7.5200000000000005%" headers="mcps1.1.6.1.4 "><p id="p151201747195314"><a name="p151201747195314"></a><a name="p151201747195314"></a>是</p>
</td>
<td class="cellrowborder" valign="top" width="35.76%" headers="mcps1.1.6.1.5 "><p id="p1211954714533"><a name="p1211954714533"></a><a name="p1211954714533"></a>设置transform动画的类型</p>
</td>
</tr>
</tbody>
</table>

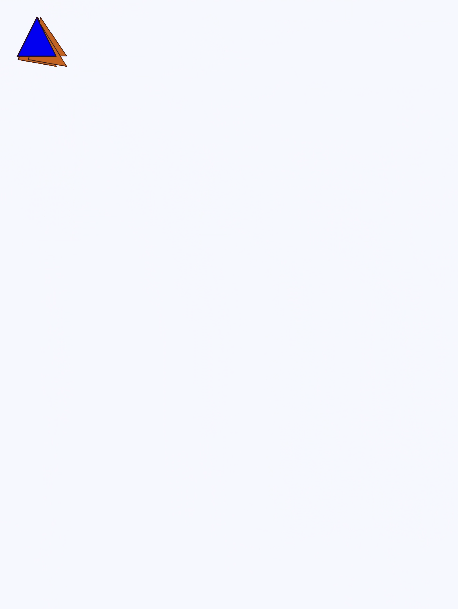

## 示例<a name="section360556124815"></a>

```
<!-- xxx.hml -->
<div class="container">
  <div class="back_container">
    <svg>
      <polygon points="60,30 90,90 30,90" fill="red">
        <animateTransform attributeName="transform" attributeType="XML" type="rotate" from="0 120 140" to="360 360 420" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="red">
        <animateTransform attributeName="transform" attributeType="XML" type="rotate" from="0" to="360" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="green">
        <animateTransform attributeName="transform" attributeType="XML" type="scale" from="1" to="2" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="green">
        <animateTransform attributeName="transform" attributeType="XML" type="scale" from="1 1" to="2 4" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="#D2691E">
        <animateTransform attributeName="transform" attributeType="XML" type="skewX" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="#D2691E">
        <animateTransform attributeName="transform" attributeType="XML" type="skewY" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="#D2691E">
        <animateTransform attributeName="transform" attributeType="XML" type="skewX" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="skewY" from="10" to="100" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0 0" to="0 300" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0 0" to="300 300" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
    </svg>
  </div>
</div>
```

```
/* xxx.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: flex-start;
  background-color: #f8f8ff;
}

.back_container {
  flex-direction: row;
  justify-content: flex-start;
  align-items: flex-start;
  height: 1000px;
  width: 1080px;
}
```

![](figures/animate-transform.gif)

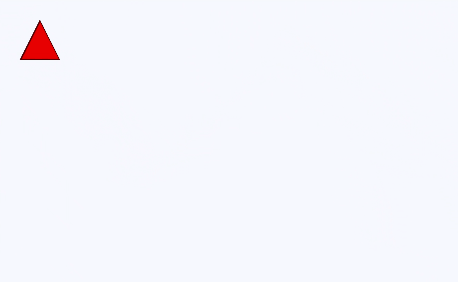

动画叠加

```
<!-- xxx.hml -->
<div class="container">
  <div class="back_container">
    <svg>
      <polygon points="60,30 90,90 30,90" fill="black">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="green">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="rotate" values="0; 5; 0; 10" keyTimes="0;
          0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="scale" values="1; 1.2; 1; 1.2"
          keyTimes="0; 0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <polygon points="60,30 90,90 30,90" fill="red">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" values="0 0; 200 200; 400 0;
          600 200" keyTimes="0; 0.4; 0.8;1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="scale" values="1; 1.2; 1; 1.2"
          keyTimes="0; 0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
        <animateTransform attributeName="transform" attributeType="XML" type="skewX" values="0; 10; 0; 10"
          keyTimes="0; 0.4; 0.8; 1.0" dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
    </svg>
  </div>
</div>
```

```
/* xxx.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: flex-start;
  background-color: #f8f8ff;
}
.back_container {
  flex-direction: row;
  justify-content: flex-start;
  align-items: flex-start;
  height: 1000px;
  width: 1080px;
}
```

![](figures/animate-transform2.gif)

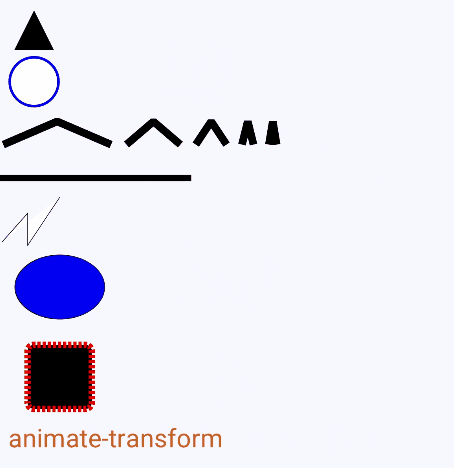

涉及组件示例

```
<!-- xxx.hml -->
<div class="container">
  <div class="back_container">
    <svg>
      <svg fill="white" width="600" height="600" viewBox="0 0 50 50">
        <path stroke="black" fill="none" stroke-linejoin="miter" stroke-miterlimit="1" id="p2"
          d="M1,19 l7,-3 l7,3 m2,0 l3.5,-3 l3.5 ,3 m2,0 l2 ,-3 l2 ,3 m2,0 l0.75,-3 l0.75,3 m2,0 l0.5 ,-3 l0.5,3">
          <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="25"
            dur="3s" repeatCount="indefinite"></animateTransform>
        </path>
      </svg>
      <polygon points="60,20 90,80 30,80" fill="black">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </polygon>
      <circle cx="60" cy="130" r="40" stroke-width="4" fill="white" stroke="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </circle>
      <line x1="10" x2="300" y1="280" y2="280" stroke-width="10" stroke="black" stroke-linecap="square">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </line>
      <polyline points="10,380 50,335 50,385 100,310" fill="white" stroke="black">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </polyline>
      <ellipse cx="100" cy="450" rx="70" ry="50" fill="blue">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </ellipse>
      <rect width="100" height="100" x="50" y="540" stroke-width="10" stroke="red" rx="10" ry="10"
        stroke-dasharray="5 3" stroke-dashoffset="3">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </rect>
      <text x="20" y="700" fill="#D2691E" font-size="40">
        <animateTransform attributeName="transform" attributeType="XML" type="translate" from="0" to="300"
          dur="3s" repeatCount="indefinite"></animateTransform>
      </text>
    </svg>
  </div>
</div>
```

```
/* xxx.css */
.container {
  flex-direction: column;
  justify-content: flex-start;
  align-items: flex-start;
  background-color: #f8f8ff;
}
.back_container {
  flex-direction: row;
  justify-content: flex-start;
  align-items: flex-start;
  height: 1000px;
  width: 1080px;
}
```

![](figures/animate-transform3.gif)
