# Shape
The **** component is the parent component of the drawing components. The attributes described in this topic are universal attributes supported by all the drawing components.
1. The drawing components use **** as the parent component to implement the effect similar to SVG.
2. The **** component is used independently to draw a specific shape.
## Child Components
The **** component can contain child components.
## APIs
Shape\(target?: PixelMap\)
- Parameters
Name
Type
Mandatory
Default Value
Description
target
PixelMap
No
null
Shape to draw. You can draw a shape in the specified PixelMap object. If no object is specified, the shape is drawn in the current drawing target.
Limit value when the sharp angle is drawn as a miter.
strokeOpacity
number
1
No
Stroke opacity.
strokeWidth
Length
1
No
Stroke width.
antiAlias
boolean
true
No
Whether anti-aliasing is enabled.
- LineJoinStyle enums
Name
Description
Bevel
Bevel is used to connect paths.
Miter
Miter is used to connect paths.
Round
Round is used to connect paths.

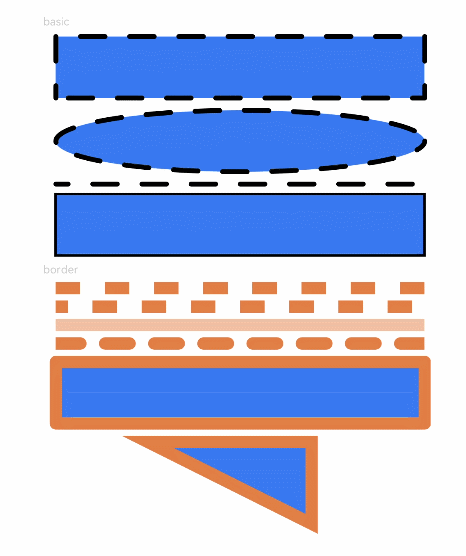

## Example
```
@Entry
@Component
struct ShapeExample {
build() {
Column({ space: 5 }) {
Text('basic').fontSize(9).fontColor(0xCCCCCC).width(320)
// Draw a 300 x 50 rectangle with strokes at (-2, -2). The fill color is 0x317Af7, the stroke color is black, the stroke width is 4, the stroke dash is 20, the offset is 10 to the left, the cap style is rounded, the join style is rounded, and anti-aliasing is enabled (default).
// Draw a 300 x 50 ellipse with strokes at (-2, 58). The fill color is 0x317Af7, the stroke color is black, the stroke width is 4, the stroke dash is 20, the offset is 10 to the left, the cap style is rounded, the join style is rounded, and anti-aliasing is enabled (default).
// Draw a 300 x 10 path at (-2, 118). The fill color is 0x317Af7, the stroke color is black, the stroke width is 4, the stroke dash is 20, the offset is 10 to the left, the cap style is rounded, and the join style is rounded, and anti-aliasing is enabled (default).
Shape() {
Rect().width(300).height(50)
Ellipse().width(300).height(50).offset({ x: 0, y: 60 })
Path().width(300).height(10).commands('M0 0 L900 0').offset({ x: 0, y: 120 })
}
.viewPort({ x: -2, y: -2, width: 304, height: 124 })
.fill(0x317Af7).stroke(Color.Black).strokeWidth(4)
.strokeDashArray([20]).strokeDashOffset(10).strokeLineCap(LineCapStyle.Round)
.strokeLineJoin(LineJoinStyle.Round).antiAlias(true)
// Draw a 300 x 50 rectangle with strokes at (-1, -1). The fill color is 0x317Af7, the stroke color is black, and the stroke width is 2.
Shape() {
Rect().width(300).height(50)
}.viewPort({ x: -1, y: -1, width: 302, height: 52 }).fill(0x317Af7).stroke(Color.Black).strokeWidth(2)
Text('border').fontSize(9).fontColor(0xCCCCCC).width(320)
// Draw a 300 x 10 path at (0, -5). The color is 0xEE8443, the stroke width is 10, and the stroke gap is 20.
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}.viewPort({ x: 0, y: -5, width: 300, height: 10 }).stroke(0xEE8443).strokeWidth(10).strokeDashArray([20])
// Draw a 300 x 10 path at (0, -5). The fill color is 0xEE8443, the stroke width is 10, the stroke gap is 20, and the offset is 10 to the left.
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}
.viewPort({ x: 0, y: -5, width: 300, height: 10 })
.stroke(0xEE8443).strokeWidth(10).strokeDashArray([20]).strokeDashOffset(10)
// Draw a 300 x 10 path at (0, -5). The fill color is 0xEE8443, the stroke width is 10, and the stroke opacity is 0.5.
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}.viewPort({ x: 0, y: -5, width: 300, height: 10 }).stroke(0xEE8443).strokeWidth(10).strokeOpacity(0.5)
// Draw a 300 x 10 path at (0, -5). The fill color is 0xEE8443, the stroke width is 10, the stroke dash is 20, the offset is 10 to the left, and the cap style is rounded.
Shape() {
Path().width(300).height(10).commands('M0 0 L900 0')
}
.viewPort({ x: 0, y: -5, width: 300, height: 10 })
.stroke(0xEE8443).strokeWidth(10).strokeDashArray([20]).strokeLineCap(LineCapStyle.Round)
// Draw a 300 x 50 rectangle with strokes at (-5, -5). The fill color is 0x317Af7, the stroke width is 10, the stroke color is 0xEE8443, and the join style is rounded.
Shape() {
Rect().width(300).height(50)
}
.viewPort({ x: -5, y: -5, width: 310, height: 60 })
.fill(0x317Af7).stroke(0xEE8443).strokeWidth(10).strokeLineJoin(LineJoinStyle.Round)
Shape() {
Path().width(300).height(60).commands('M0 0 L400 0 L400 200 Z')
}
.viewPort({ x: -80, y: -5, width: 310, height: 100 })
.fill(0x317Af7).stroke(0xEE8443).strokeWidth(10)
.strokeLineJoin(LineJoinStyle.Miter).strokeMiterLimit(5)
}.width('100%').margin({ top: 15 })
}
}
```
![](figures/shape.gif)
