# Drag/Drop Event
> **NOTE**
>
> This component is supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.
| Name | Bubbling Supported | Description |
| -------- | -------- | -------- |
| onDragStart(callback: (event: DragEvent, extraParams?: string) =>\|[Custom Builder](../../ui/ts-types.md)) | No | Triggered when the component bound to the event is dragged for the first time.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **extraParam**.
Return value: object being dragged, which is used for prompts displayed when the object is dragged.
A drag event can be triggered by a 150 ms long press.
If the duration of a long-press gesture is set to less than or equal to 150 ms, the callback for the long-press gesture takes precedence. Otherwise, the callback for the drag event takes precedence. |
| onDragEnter(callback: (event: DragEvent, extraParams?: string) => void) | No | Triggered when the dragged item enters a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **extraParam**.
This event is valid only when the **onDrop** event is listened to. |
| onDragMove(callback: (event: DragEvent, extraParams?: string) => void) | No | Triggered when the dragged item moves in a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **extraParam**.
This event is valid only when the **onDrop** event is listened to. |
| onDragLeave(callback: (event: DragEvent, extraParams?: string) => void) | No | Triggered when the dragged item leaves a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **extraParam**.
This event is valid only when the **onDrop** event is listened to. |
| onDrop(callback: (event:DragEvent, extraParams?: string) => void) | No | Triggered when the dragged item is dropped on a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **extraParam**. |
- extraParam
Returns additional information required for dragging an item.
**extraParam** is a string converted from a JSON object. You can obtain the following attributes using the JSON object converted from **Json.parse**.
| Name | Type | Description |
| -------- | -------- | -------- |
| selectedIndex | number | Index of the dragged item in the parent container. The value of **selectedIndex** starts from **0**.
This attribute is valid only in the **\** component. |
| insertIndex | number | Index of the element into which the dragged item is dropped in the **List** component. The value of **insertIndex** starts from **0**.
This attribute is valid only in the drag event of the **\** component. |
### DragEvent
| Name | Return Value Type | Description |
| -------- | -------- | -------- |
| getX() | number | X-coordinate of the item that is being dragged, in vp. |
| getY() | number | Y-coordinate of the item that is being dragged, in vp. |

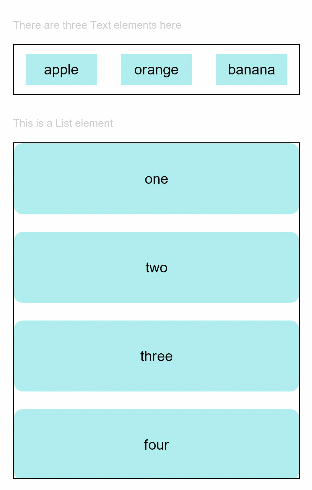

## Example
```ts
// xxx.ets
@Entry
@Component
struct DragExample {
@State numbers: string[] = ['one', 'two', 'three', 'four', 'five', 'six']
@State text: string = ''
@State bool: boolean = false
@State bool1: boolean = false
@State size: string = ''
@State appleVisible: Visibility = Visibility.Visible
@State orangeVisible: Visibility = Visibility.Visible
@State bananaVisible: Visibility = Visibility.Visible
@State select: number = 0
@State currentIndex: number = 0
@Builder pixelMapBuilder() {
Column() {
Text(this.text)
.width('50%').height(60).fontSize(16).borderRadius(10)
.textAlign(TextAlign.Center).backgroundColor(Color.Yellow)
}
}
build() {
Column() {
Text('There are three Text elements here')
.fontSize(12).fontColor(0xCCCCCC).width('90%')
.textAlign(TextAlign.Start).margin(5)
Flex({ direction: FlexDirection.Row, alignItems: ItemAlign.Center, justifyContent: FlexAlign.SpaceAround }) {
Text('apple').width('25%').height(35).fontSize(16)
.textAlign(TextAlign.Center).backgroundColor(0xAFEEEE)
.visibility(this.appleVisible)
.onDragStart(() => {
this.bool = true
this.text = 'apple'
this.appleVisible = Visibility.Hidden
return this.pixelMapBuilder
})
Text('orange').width('25%').height(35).fontSize(16)
.textAlign(TextAlign.Center).backgroundColor(0xAFEEEE)
.visibility(this.orangeVisible)
.onDragStart(() => {
this.bool = true
this.text = 'orange'
this.orangeVisible = Visibility.Hidden
return this.pixelMapBuilder
})
Text('banana').width('25%').height(35).fontSize(16)
.textAlign(TextAlign.Center).backgroundColor(0xAFEEEE)
.visibility(this.bananaVisible)
.onDragStart((event: DragEvent, extraParams: string) => {
console.log('Text onDragStarts, ' + extraParams)
this.bool = true
this.text = 'banana'
this.bananaVisible = Visibility.Hidden
return this.pixelMapBuilder
})
}.border({ width: 1 }).width('90%').padding({ top: 10, bottom: 10 }).margin(10)
Text('This is a List element').fontSize(12)
.fontColor(0xCCCCCC).width('90%')
.textAlign(TextAlign.Start).margin(15)
List({ space: 20, initialIndex: 0 }) {
ForEach(this.numbers, (item) => {
ListItem() {
Text('' + item)
.width('100%').height(80).fontSize(16).borderRadius(10)
.textAlign(TextAlign.Center).backgroundColor(0xAFEEEE)
}
.onDragStart((event: DragEvent, extraParams: string) => {
console.log('ListItem onDragStarts, ' + extraParams)
var jsonString = JSON.parse(extraParams)
this.bool1 = true
this.text = this.numbers[jsonString.selectedIndex]
this.select = jsonString.selectedIndex
return this.pixelMapBuilder
})
}, item => item)
}
.editMode(true)
.height('50%').width('90%').border({ width: 1 })
.divider({ strokeWidth: 2, color: 0xFFFFFF, startMargin: 20, endMargin: 20 })
.onDragEnter((event: DragEvent, extraParams: string) => {
console.log('List onDragEnter, ' + extraParams)
})
.onDragMove((event: DragEvent, extraParams: string) => {
console.log('List onDragMove, ' + extraParams)
})
.onDragLeave((event: DragEvent, extraParams: string) => {
console.log('List onDragLeave, ' + extraParams)
})
.onDrop((event: DragEvent, extraParams: string) => {
var jsonString = JSON.parse(extraParams)
if (this.bool) {
this.numbers.splice(jsonString.insertIndex, 0, this.text)
this.bool = false
} else if (this.bool1) {
this.numbers.splice(jsonString.selectedIndex, 1)
this.numbers.splice(jsonString.insertIndex, 0, this.text)
this.bool = false
this.bool1 = false
}
})
}.width('100%').height('100%').padding({ top: 20 }).margin({ top: 20 })
}
}
```
