# PanGesture
**PanGesture** is used to trigger a pan gesture, which requires a minimum 5 vp movement distance of a finger on the screen.
> **NOTE**
>
> This gesture is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.
## Required Permissions
None
## APIs
PanGesture(options?: { fingers?: number, direction?: PanDirection, distance?: number } | [PanGestureOptions](#pangestureoptions))
- Parameters
| Name| Type| Mandatory| Default Value| Description|
| -------- | -------- | -------- | -------- | -------- |
| fingers | number | No| 1 | Minimum number of fingers to trigger a pan gesture. The value ranges from 1 to 10.|
| direction | PanDirection | No| All | Pan direction. The enumerated value supports the AND (&) and OR (\|)|operations.|
| distance | number | No| 5.0 | Minimum pan distance to trigger the gesture, in vp.
**NOTE**
If a pan gesture and tab swipe occur at the same time, set **distance** to **1** so that the gesture can be more easily recognized.|
- PanDirection enums
| Name| Description|
| -------- | -------- |
| All | All directions.|
| Horizontal | Horizontal panning.|
| Vertical | Vertical panning.|
| Left | Panning to the left.|
| Right | Panning to the right.|
| Up | Panning up.|
| Down | Panning down.|
| None | Panning disabled.|
### PanGestureOptions
The attributes of the pan gesture recognizer can be dynamically modified using the **PanGestureOptions** API. This avoids modifying attributes through state variables, which will cause the UI to be refreshed.
PanGestureOptions(options?: { fingers?: number, direction?: PanDirection, distance?: number })
- Parameters
For details, see **PanGesture**.
- APIs
| Name| Description|
| -------- | -------- |
| setDirection(value: PanDirection) | Sets the direction.|
| setDistance(value: number) | Sets the distance.|
| setFingers(value: number) | Sets the number of fingers.|
## Events
| Name| Description|
| -------- | -------- |
| onActionStart(callback: (event?: GestureEvent) => void) | Callback invoked when a pan gesture is recognized.|
| onActionUpdate(callback: (event?: GestureEvent) => void) | Callback invoked when the pan gesture status is updated.|
| onActionEnd(callback: (event?: GestureEvent) => void) | Callback invoked when the finger used for a pan gesture is lift.|
| onActionCancel(callback: () => void) | Callback invoked when a tap cancellation event is received after a pan gesture is recognized.|
- GestureEvent attributes related to the pan gesture
| Name| Type| Description|
| -------- | -------- | -------- |
| offsetX | number | Offset of the gesture event, in vp.|
| offsetY | number | Offset of the gesture event, in vp.|

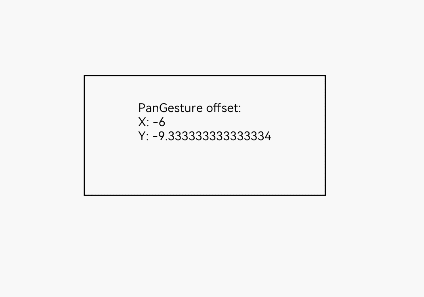

## Example
```ts
// xxx.ets
@Entry
@Component
struct PanGestureExample {
@State offsetX: number = 0
@State offsetY: number = 0
build() {
Flex({ direction: FlexDirection.Column, alignItems: ItemAlign.Center, justifyContent: FlexAlign.SpaceBetween }) {
Text('PanGesture offset:\nX: ' + this.offsetX + '\n' + 'Y: ' + this.offsetY)
}
.height(100).width(200).padding(20).border({ width: 1 }).margin(80)
.translate({ x: this.offsetX, y: this.offsetY, z: 5 })
.gesture(
PanGesture({})
.onActionStart((event: GestureEvent) => {
console.info('Pan start')
})
.onActionUpdate((event: GestureEvent) => {
this.offsetX = event.offsetX
this.offsetY = event.offsetY
})
.onActionEnd(() => {
console.info('Pan end')
})
)
}
}
```
