# Shared Element Transition A shared element transition is a transition animation applied to a component that is present on two pages. This component is called the shared element and can be set in the **sharedTransition** attribute. > **NOTE** > > The APIs of this module are supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version. ## Attributes | Name | Parameter | Description | | ---------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | | sharedTransition | id: string,
{
duration?: number,
curve?: Curve \| string,
delay?: number,
motionPath?:
{
path: string,
form?: number,
to?: number,
rotatable?: boolean
},
zIndex?: number,
type?: [SharedTransitionEffectType](ts-appendix-enums.md#sharedtransitioneffecttype)
} | Transition of the shared element. If the same **id** value is configured for a component on the two pages, this component is considered as a shared element of the pages. If the **id** value is an empty string, no transition will be applied to the component.
- **id**: component ID.
- **duration**: animation duration.
Default value: **1000**
Unit: ms
Value range: [0, +∞)
The value **0** indicates that no animation is applied. A value less than 0 evaluates to the value **0**.
- **curve**: animation curve. The default curve is **Linear**. For details about the valid values, see [Curve](ts-animatorproperty.md).
- **delay**: animation delay.
Default value: **0**
Unit: ms
Value range: [0, +∞)
A value less than 0 evaluates to the value **0**.
- **motionPath**: motion path information. For details, see [Motion Path Animation](ts-motion-path-animation.md).
- **path**: path.
- **from**: start value.
- **to**: end value.
- **rotatable**: whether to rotate.
- **zIndex**: z-axis.

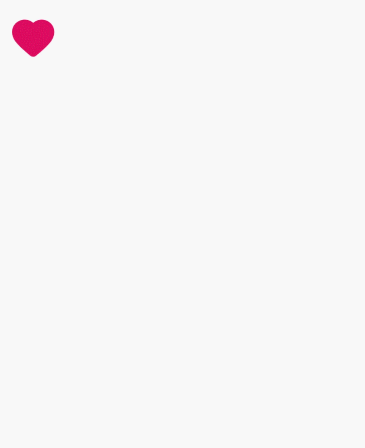

- **type**: animation type.| ## Example This example implements the custom transition of a shared image during redirection from one page to another, which is triggered by a click on the image. ```ts // xxx.ets @Entry @Component struct SharedTransitionExample { @State active: boolean = false build() { Column() { Navigator({ target: 'pages/PageB', type: NavigationType.Push }) { Image($r('app.media.ic_health_heart')).width(50).height(50) .sharedTransition('sharedImage', { duration: 800, curve: Curve.Linear, delay: 100 }) }.padding({ left: 20, top: 20 }) .onClick(() => { this.active = true }) } } } ``` ```ts // PageB.ets @Entry @Component struct pageBExample { build() { Stack() { Image($r('app.media.ic_health_heart')).width(150).height(150) .sharedTransition('sharedImage', { duration: 800, curve: Curve.Linear, delay: 100 }) }.width('100%').height('100%') } } ``` ![shared](figures/shared.gif)
