# Sheet Transition

You can bind a sheet to a component through the **bindSheet** attribute. You can also set the sheet to the preset or custom height for when the component is inserted.

>  **NOTE**
>
> The APIs of this module are supported since API version 10. Updates will be marked with a superscript to indicate their earliest API version.
> Switching between landscape and portrait modes is not supported.

## Attributes

| Name| Parameter  | Description|
| -------- | -------- | -------- |
| bindSheet | isShow: boolean,<br>builder: [CustomBuilder](ts-types.md#custombuilder8),<br>sheetStyle?: [SheetStyle](#sheetstyle10) | Binds a sheet to the component, which can be displayed when the component is touched. **isShow**: whether to display the sheet. Mandatory.<br>**builder**: content of the sheet. Mandatory.<br> **sheetStyle**: height and control bar visibility of the sheet. Optional. By default, the default height is **Large** and the control bar is visible.|

## SheetStyle<sup>10+</sup>

| Name              | Type                                  | Mandatory| Description                  |
| ------------------ | -------------------------------------- | ---- | ---------------------- |
| height             | [SheetSize](#sheetsize10) \| [Length](ts-types.md#length) | No| Height of the sheet.         |
| dragBar            | boolean                                | No  | Whether the control bar is visible.         |

## SheetSize<sup>10+</sup>

| Name| Description|
| -------- | -------- |
| MEDIUM   | The sheet height is half of the screen height.|
| LARGE    | The sheet height is almost the screen height.|

## Example

```ts
// xxx.ets
@Entry
@Component
struct SheetTransitionExample {
  @State isShow:boolean = false
  @State isShow2:boolean = false
  @State sheetHeight:number = 300;
  @State showDragBar:boolean = true;

  @Builder myBuilder() {
    Column() {
      Button("change height")
        .margin(10)
        .fontSize(20)
        .onClick(()=>{
          this.sheetHeight = 500;
        })

      Button("Set Illegal height")
        .margin(10)
        .fontSize(20)
        .onClick(()=>{
          this.sheetHeight = null;
        })

      Button("close dragBar")
        .margin(10)
        .fontSize(20)
        .onClick(()=>{
          this.showDragBar = false;
        })

      Button("close modal 1")
        .margin(10)
        .fontSize(20)
        .onClick(()=>{
          this.isShow = false;
        })
    }
    .width('100%')
    .height('100%')
  }

  build() {
    Column() {
      Button("transition modal 1")
        .onClick(() => {
          this.isShow = true
        })
        .fontSize(20)
        .margin(10)
        .bindSheet($$this.isShow, this.myBuilder(), {height: this.sheetHeight, dragBar: this.showDragBar})
    }
    .justifyContent(FlexAlign.Center)
    .width('100%')
    .height('100%')
  }
}
```

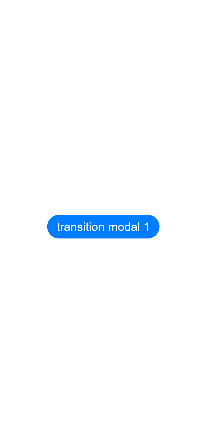

![en-us_sheet](figures/en-us_sheet.gif)
