# Drag Event
A drag event is triggered when a component is dragged.
> **NOTE**
>
> The APIs of this module are supported since API version 8. Updates will be marked with a superscript to indicate their earliest API version.
## Events
| Name | Bubbling Supported| Description |
| ------------------------------------------------------------ | -------- | ------------------------------------------------------------ |
| onDragStart(event: (event?: [DragEvent](#dragevent), extraParams?: string) => [CustomBuilder](ts-types.md#custombuilder8) \| [DragItemInfo](#dragiteminfo)) | No | Triggered when the component bound to the event is dragged for the first time.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **[extraParams](#extraparams)**.
Return value: object being dragged, which is used for prompts displayed when the object is dragged.
A drag event can be triggered by a 150 ms long press. If the duration of a long-press gesture is set to less than or equal to 150 ms, the callback for the long-press gesture takes precedence. Otherwise, the callback for the drag event takes precedence.|
| onDragEnter(event: (event?: [DragEvent](#dragevent), extraParams?: string) => void) | No | Triggered when the dragged item enters a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **[extraParams](#extraparams)**.
This event is valid only when a listener for the **onDrop** event is enabled.|
| onDragMove(event: (event?: [DragEvent](#dragevent), extraParams?: string) => void) | No | Triggered when the dragged item moves in a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **[extraParams](#extraparams)**.
This event is valid only when a listener for the **onDrop** event is enabled.|
| onDragLeave(event: (event?: [DragEvent](#dragevent), extraParams?: string) => void) | No | Triggered when the dragged item leaves a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **[extraParams](#extraparams)**.
This event is valid only when a listener for the **onDrop** event is enabled.|
| onDrop(event: (event?: [DragEvent](#dragevent), extraParams?: string) => void) | No | Triggered when the dragged item is dropped on a valid drop target.
- **event**: information about the drag event, including the coordinates of the item that is being dragged.
- **extraParams**: additional information about the drag event. For details, see **[extraParams](#extraparams)**.|
## DragItemInfo
| Name | Type | Mandatory | Description |
| --------- | ---------------------------------------- | ---- | --------------------------------- |
| pixelMap | [PixelMap](../apis/js-apis-image.md#pixelmap7) | No | Image to be displayed during dragging. |
| builder | [CustomBuilder](ts-types.md#custombuilder8) | No | Custom component to display during dragging. If **pixelMap** is set, this attribute is ignored.|
| extraInfo | string | No | Extra information of the dragged item. |
## extraParams
Provides additional information required for dragging an item.
**extraParams** is a string converted from a JSON object. You can obtain the following attributes using the JSON object converted from **Json.parse**.
| Name | Type | Description |
| ------------- | ------ | ---------------------------------------- |
| selectedIndex | number | Index of the dragged item in the parent container. The value of **selectedindex** starts from **0**.
This attribute is valid only in the drag event of the **\** component.|
| insertIndex | number | Index of the element into which the dragged item is dropped in the **List** component. The value of **insertIndex** starts from **0**.
This attribute is valid only in the drag event of the **\** component.|
## DragEvent
| Name | Type | Description |
| ------ | ------ | ---------------- |
| getX() | number | X-coordinate of the drag position relative to the upper left corner of the screen, in vp.|
| getY() | number | Y-coordinate of the drag position relative to the upper left corner of the screen, in vp.|

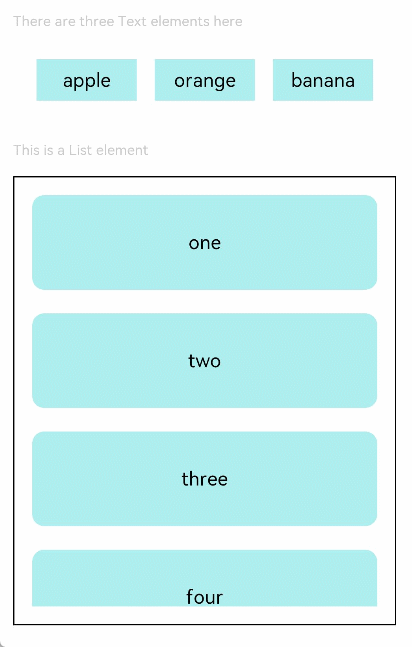

## Example
```ts
// xxx.ets
@Extend(Text) function textStyle () {
.width('25%')
.height(35)
.fontSize(16)
.textAlign(TextAlign.Center)
.backgroundColor(0xAFEEEE)
}
@Entry
@Component
struct DragExample {
@State numbers: string[] = ['one', 'two', 'three', 'four', 'five', 'six']
@State text: string = ''
@State bool: boolean = true
@State eventType: string = ''
@State appleVisible: Visibility = Visibility.Visible
@State orangeVisible: Visibility = Visibility.Visible
@State bananaVisible: Visibility = Visibility.Visible
private dragList: string[] = ['apple', 'orange', 'banana']
@State fruitVisible: Visibility[] = [Visibility.Visible, Visibility.Visible, Visibility.Visible]
@State index: number = 0
// Customize the content displayed during dragging.
@Builder pixelMapBuilder() {
Column() {
Text(this.text)
.width('50%')
.height(60)
.fontSize(16)
.borderRadius(10)
.textAlign(TextAlign.Center)
.backgroundColor(Color.Yellow)
}
}
build() {
Column() {
Text('There are three Text elements here')
.fontSize(12)
.fontColor(0xCCCCCC)
.width('90%')
.textAlign(TextAlign.Start)
.margin(5)
Row({ space: 15 }) {
ForEach(this.dragList, (item, index) => {
Text(item)
.textStyle()
.visibility(this.fruitVisible[index])
.onDragStart(() => {
this.bool = true
this.text = item
this.fruitVisible[index] = Visibility.None
return this.pixelMapBuilder
})
.onTouch((event: TouchEvent) => {
if (event.type === TouchType.Down) {
this.eventType = 'Down'
this.index = index
}
if (event.type === TouchType.Up) {
this.eventType = 'Up'
if (this.bool) {
this.fruitVisible[index] = Visibility.Visible
}
}
})
})
}.padding({ top: 10, bottom: 10 }).margin(10)
Text('This is a List element')
.fontSize(12)
.fontColor(0xCCCCCC)
.width('90%')
.textAlign(TextAlign.Start)
.margin(15)
List({ space: 20 }) {
ForEach(this.numbers, (item) => {
ListItem() {
Text(item)
.width('100%')
.height(80)
.fontSize(16)
.borderRadius(10)
.textAlign(TextAlign.Center)
.backgroundColor(0xAFEEEE)
}
}, item => item)
}
.editMode(true)
.height('50%')
.width('90%')
.border({ width: 1 })
.padding(15)
.divider({ strokeWidth: 2, color: 0xFFFFFF, startMargin: 20, endMargin: 20 })
.onDragEnter((event: DragEvent, extraParams: string) => {
console.log('List onDragEnter, ' + extraParams + 'X:' + event.getX() + 'Y:' + event.getY())
})
.onDragMove((event: DragEvent, extraParams: string) => {
console.log('List onDragMove, ' + extraParams + 'X:' + event.getX() + 'Y:' + event.getY())
})
.onDragLeave((event: DragEvent, extraParams: string) => {
console.log('List onDragLeave, ' + extraParams + 'X:' + event.getX() + 'Y:' + event.getY())
})
.onDrop((event: DragEvent, extraParams: string) => {
let jsonString = JSON.parse(extraParams);
if (this.bool) {
// Insert an element using the splice method.
this.numbers.splice(jsonString.insertIndex, 0, this.text)
this.bool = false
}
this.fruitVisible[this.index] = Visibility.None
})
}.width('100%').height('100%').padding({ top: 20 }).margin({ top: 20 })
}
}
```
