# Slider
> **NOTE**
> This component is supported since API version 7. Updates will be marked with a superscript to indicate their earliest API version.
The **<Slider>** component is used to quickly adjust settings, such as the volume and brightness.
## Required Permissions
None
## Child Components
None
## APIs
Slider(value:{value?: number, min?: number, max?: number, step?: number, style?: SliderStyle, direction?: Axis})
- Parameters
| Name | Type | Mandatory | Default Value | Description |
| ---------------------- | --------------------------------------- | --------- | ------------------ | ---------------------------------------- |
| value | number | No | 0 | Current progress. |
| min | number | No | 0 | Minimum value. |
| max | number | No | 100 | Maximum value. |
| step | number | No | 1 | Step of the slider. When the corresponding step is set, the slider slides intermittently. |
| style | SliderStyle | No | SliderStyle.OutSet | Style of the slider. |
| direction8+ | [Axis](ts-appendix-enums.md#axis-enums) | No | Axis.Horizontal | Whether the slider moves horizontally or vertically. |
| reverse8+ | boolean | No | false | Whether the slider values are reversed. |
- SliderStyle enums
| Name | Description |
| ------ | --------------------------------- |
| OutSet | The slider is on the slider rail. |
| InSet | The slider is in the slider rail. |
## Attributes
Touch target configuration is not supported.
| Name | Type | Default Value | Description |
| ------------- | ------- | ------------- | -------------------------------------------------------------------- |
| blockColor | Color | - | Color of the slider. |
| trackColor | Color | - | Background color of the slider. |
| selectedColor | Color | - | Color of the slider rail that has been slid. |
| showSteps | boolean | false | Whether to display the current step. |
| showTips | boolean | false | Whether to display a bubble to indicate the percentage when sliding. |
## Events
Among all the universal events, only **OnAppear** and **OnDisAppear** are supported.
| Name | Description |
| ---------------------------------------- | ---------------------------------------- |
| onChange(callback: (value: number, mode: SliderChangeMode) => void) | Callback invoked when the slider slides.
**value**: current progress.
**mode**: dragging state. |
- SliderChangeMode enums
| Name | Description |
| ------ | ----------------------------------- |
| Begin | The user starts to drag the slider. |
| Moving | The user is dragging the slider. |
| End | The user stops dragging the slider. |

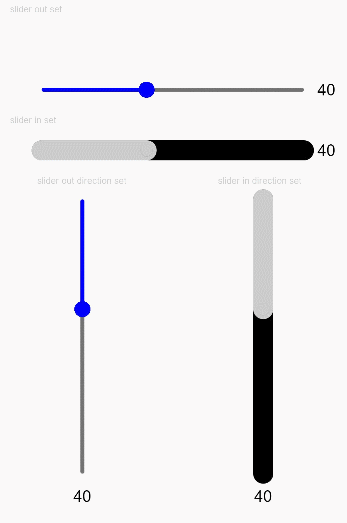

## Example
```
@Entry
@Component
struct SliderExample {
@State outSetValue: number = 40
@State inSetValue: number = 40
@State outVerticalSetValue: number = 40
@State inVerticalSetValue: number = 40
build() {
Column({ space: 5 }) {
Text('slider out set').fontSize(9).fontColor(0xCCCCCC).width('90%')
Row() {
Slider({
value: this.outSetValue,
min: 0,
max: 100,
step: 1,
style: SliderStyle.OutSet
})
.blockColor(Color.Blue)
.trackColor(Color.Gray)
.selectedColor(Color.Blue)
.showSteps(true)
.showTips(true)
.onChange((value: number, mode: SliderChangeMode) => {
this.outSetValue = value
console.info('value:' + value + 'mode:' + mode.toString())
})
Text(this.outSetValue.toFixed(0)).fontSize(16)
}
.padding({ top: 50 })
.width('80%')
Text('slider in set').fontSize(9).fontColor(0xCCCCCC).width('90%')
Row() {
Slider({
value: this.inSetValue,
min: 0,
max: 100,
step: 1,
style: SliderStyle.InSet
})
.blockColor(0xCCCCCC)
.trackColor(Color.Black)
.selectedColor(0xCCCCCC)
.showSteps(false)
.showTips(false)
.onChange((value: number, mode: SliderChangeMode) => {
this.inSetValue = value
console.info('value:' + value + 'mode:' + mode.toString())
})
Text(this.inSetValue.toFixed(0)).fontSize(16)
}
.width('80%')
Row() {
Column() {
Text('slider out direction set').fontSize(9).fontColor(0xCCCCCC).width('50%')
Slider({
value: this.outVerticalSetValue,
min: 0,
max: 100,
step: 1,
style: SliderStyle.OutSet,
direction: Axis.Vertical
})
.blockColor(Color.Blue)
.trackColor(Color.Gray)
.selectedColor(Color.Blue)
.showSteps(true)
.showTips(true)
.onChange((value: number, mode: SliderChangeMode) => {
this.outVerticalSetValue = value
console.info('value:' + value + 'mode:' + mode.toString())
})
Text(this.outVerticalSetValue.toFixed(0)).fontSize(16)
}.width('50%').height(300)
Column() {
Text('slider in direction set').fontSize(9).fontColor(0xCCCCCC).width('50%')
Slider({
value: this.inVerticalSetValue,
min: 0,
max: 100,
step: 1,
style: SliderStyle.InSet,
direction: Axis.Vertical
})
.blockColor(0xCCCCCC)
.trackColor(Color.Black)
.selectedColor(0xCCCCCC)
.showSteps(false)
.showTips(false)
.onChange((value: number, mode: SliderChangeMode) => {
this.inVerticalSetValue = value
console.info('value:' + value + 'mode:' + mode.toString())
})
Text(this.inVerticalSetValue.toFixed(0)).fontSize(16)
}.width('50%').height(300)
}
}.width('100%').margin({ top: 5 })
}
}
```
