# 布局约束
> ![icon-note.gif](public_sys-resources/icon-note.gif) **说明:**
> 从API Version 7开始支持。后续版本如有新增内容,则采用上角标单独标记该内容的起始版本。
## 权限列表
无
## 属性
| 名称 | 参数说明 | 默认值 | 描述 |
| -------- | -------- | -------- | -------- |
| aspectRatio | number | - | 指定当前组件的宽高比。 |
| displayPriority | number | - | 设置当前组件在布局容器中显示的优先级,当父容器空间不足时,低优先级的组件会被隐藏。
> ![icon-note.gif](public_sys-resources/icon-note.gif) **说明:**
> 仅在Row/Column/Flex(单行)容器组件中生效。 |
## 示例
```
@Entry
@Component
struct AspectRatioExample {
private children : string[] = ['1', '2', '3', '4', '5', '6']
build() {
Column({space: 20}) {
Text('using container: row').fontSize(14).fontColor(0xCCCCCC).width('100%')
Row({space: 10}) {
ForEach(this.children, (item) => {
Text(item)
.backgroundColor(0xbbb2cb)
.fontSize(20)
.aspectRatio(1.5)
.height(60)
Text(item)
.backgroundColor(0xbbb2cb)
.fontSize(20)
.aspectRatio(1.5)
.width(60)
}, item=>item)
}
.size({width: "100%", height: 100})
.backgroundColor(0xd2cab3)
.clip(true)
Text('using container: grid').fontSize(14).fontColor(0xCCCCCC).width('100%')
Grid() {
ForEach(this.children, (item) => {
GridItem() {
Text(item)
.backgroundColor(0xbbb2cb)
.fontSize(40)
.aspectRatio(1.5)
}
}, item=>item)
}
.columnsTemplate('1fr 1fr 1fr')
.columnsGap(10)
.rowsGap(10)
.size({width: "100%", height: 165})
.backgroundColor(0xd2cab3)
}.padding(10)
}
}
```

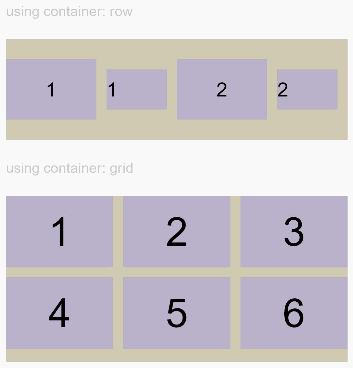

**图1** 竖屏显示
![zh-cn_image_0000001219744205](figures/zh-cn_image_0000001219744205.gif)

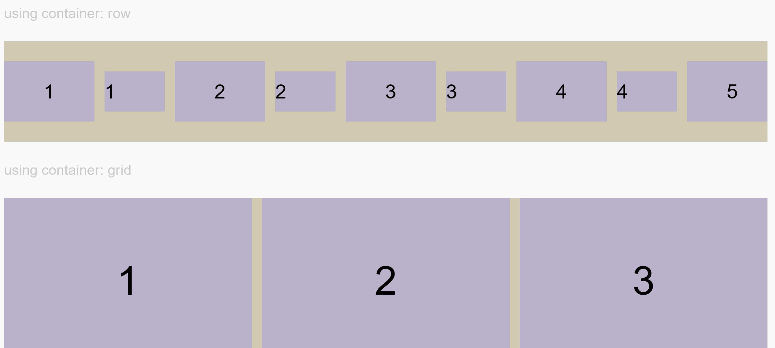

**图2** 横屏显示
![zh-cn_image_0000001174264382](figures/zh-cn_image_0000001174264382.gif)
```
class ContainerInfo {
label : string = ''
size : string = ''
}
class ChildInfo {
text : string = ''
priority : number = 0
}
@Entry
@Component
struct DisplayPriorityExample {
private container : ContainerInfo[] = [
{label: 'Big container', size: '90%'},
{label: 'Middle container', size: '50%'},
{label: 'Small container', size: '30%'}]
private children : ChildInfo[] = [
{text: '1\n(priority:2)', priority: 2},
{text: '2\n(priority:1)', priority: 1},
{text: '3\n(priority:3)', priority: 3},
{text: '4\n(priority:1)', priority: 1},
{text: '5\n(priority:2)', priority: 2}]
@State currentIndex : number = 0
build() {
Column({space: 10}) {
Button(this.container[this.currentIndex].label).backgroundColor(0x317aff)
.onClick((event: ClickEvent) => {
this.currentIndex = (this.currentIndex + 1) % this.container.length
})
Flex({justifyContent: FlexAlign.SpaceBetween}) {
ForEach(this.children, (item)=>{
Text(item.text)
.width(120)
.height(60)
.fontSize(24)
.textAlign(TextAlign.Center)
.backgroundColor(0xbbb2cb)
.displayPriority(item.priority)
}, item=>item.text)
}
.width(this.container[this.currentIndex].size)
.backgroundColor(0xd2cab3)
}.width("100%").margin({top:50})
}
}
```

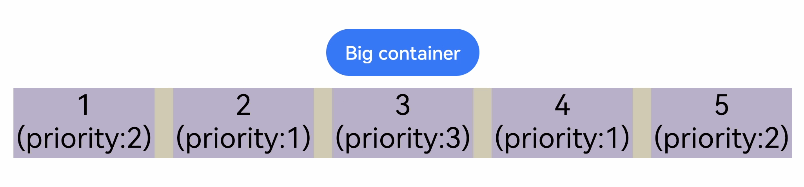

![zh-cn_image_0000001219662667](figures/zh-cn_image_0000001219662667.gif)
